RD 700 slewing bearing Certification and Inspection Guide

Having knowledge of how a slewing bearing was certified, tested, and examined prior to its arrival at your location is necessary for making a purchase with complete assurance. The RD 700 slewing bearing is a solid option for machinery that requires a high load capacity and smooth rotation. Its quality record is just as important as its design when it comes to determining its functionality. During the manufacturing process of these bearings, Luoyang Heng Guan Bearing Technology Co., Ltd., also known as Heng Guan Bearing, performs stringent inspections at each step, beginning with the delivery of the steel and continuing all the way through the final rotation test. Using this guide, you will be able to learn about the certifications, factory testing, and measurements that demonstrate that an RD 700 is complete and suitable for use.

​

What Certifications Should an RD 700 Slewing Bearing Have?

Begin by requesting documentation that demonstrates that a provider operates in accordance with established standards. When you have a quality management certificate such as ISO 9001, together with material certifications for the steel and detailed heat treatment records, you will have a clear picture of how the RD 700 slewing bearing is managed from the raw material to the final product. In order to ensure that each ring can be traced back to the specific steel heat from which it was forged, material certifications have to include traceability and heat number information.

Due to the fact that both kinds of rolling elements share the load, the combined roller and ball raceway structure of an RD 700 roller ball combination slewing ring benefits from traceable steel and recorded hardening. This is because any difference in hardness manifests itself as uneven wear. Inspection reports are sent with every order that is placed with Heng Guan Bearing. Customers in Europe, America, and Asia depend on these reports for audits, insurance files, and customs clearance. The same paperwork set is generated whenever an offshore platform or a marine crane is involved. This is done in order to maintain compliance with the certification standards of the classification authority without the need for further testing. In order for your project team to accept the bearing without any delay, it is important to request these papers in advance.

How Is RD 700 Slewing Bearing Quality Tested Before Delivery?

The quality control process starts a long time before packaging. Following the thorough examination of the chemistry and cleanliness of the raw steel, the rings are forged and machined, the raceways are induction hardened and precision honed, and finally, each RD 700 slewing bearing is assembled and tested to ensure that it rotates smoothly and evenly every time. Assemblers ensure that every rolling element is perfectly positioned inside its raceway and that the rotational torque remains constant throughout the whole circle rather than increasing at a single point. This is made possible by the fact that the RD 700 roller ball combination slewing ring utilizes both rollers and balls with its construction.

The sophisticated testing instruments and skilled manufacturing staff that Heng Guan Bearing employs allow them to detect even the smallest variations at an early stage, therefore protecting you from any surprises that may occur in the field. The roller row is designed to handle the vast bulk of axial deadweight and off-center tilting moment, while the ball row is designed to absorb secondary axial loads and adjust for small misalignment. As a result, the test bench is designed to examine each row against its particular responsibility. In the event that it is helpful, you should request a rotation test record and a final inspection report from your provider. Additionally, the approval cycle for your quality team is shortened as a result of this simple step, which provides you with evidence that the bearing you get is identical to the bearing that was authorized.

RD 700 Slewing Bearing Dimensional and Gear Accuracy Checks

The installation process is simplified by having accurate measurements, and a ring that is even slightly out of tolerance will affect every screw that is attached to your frame. Before the bearing is removed from the box, it is necessary to take measurements of the outer diameter, bore, height, bolt circle, and mounting hole locations on each and every RD 700 slewing bearing. These measurements should be compared with the authorized design. Because the hybrid roller-and-ball design is still constructed to be a direct replacement without any structural alteration, it is important to check that the ring height and bolt circle adhere to the industry norms as well.

In order to ensure that the pinion meshes in a manner that is both quiet and even, it is necessary to examine the tooth profile, module, tooth thickness, and runout of a geared RD 700 roller ball combination slewing ring. The teeth on the outside are hobbed with accuracy, while the teeth on the inside are sculpted using a CNC machine. Both pathways finally arrive at the same inspection process. Because Heng Guan Bearing provides accuracy grades ranging from P0 to P4, you are able to choose the amount of precision that your machine really requires, rather than having to pay for tolerance that you are unable to make use of. If you would like our team to review your drawing or gear data before ordering, simply write to mia@hgb-bearing.com, and we will respond with practical advice. Careful checks at this stage keep your assembly line moving and your machine running smoothly.

How Do You Inspect Clearance, Hardness, and Raceway Condition?

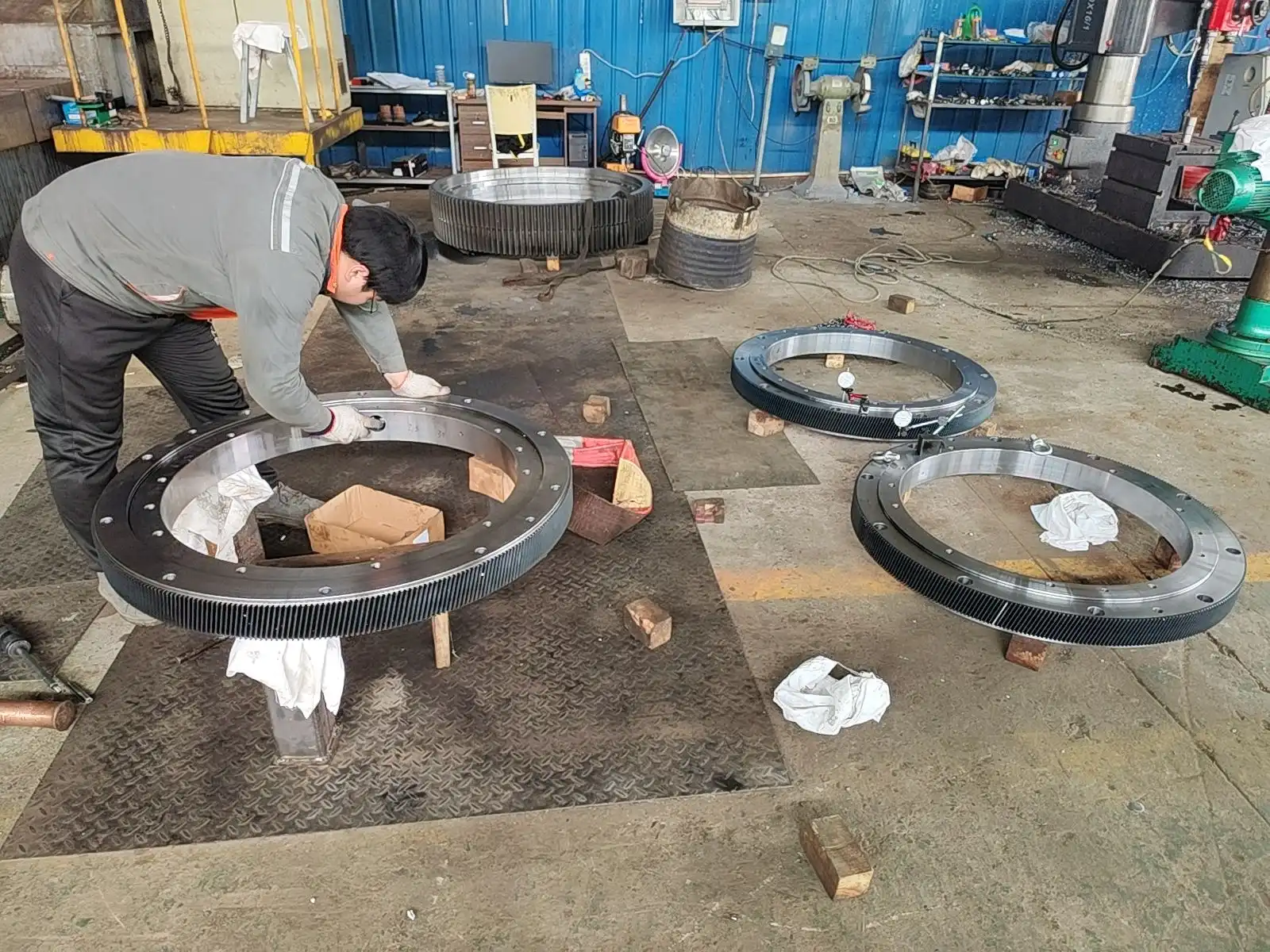

The final examination deals with the sections that determine service life; therefore, provide enough time for it instead of dismissing it as a formality. Measure the axial and radial clearance such that the RD 700 slewing bearing rotates easily without play, and check the raceway hardness using a hardness tester at the designated test sites; the ground surface should read 55 to 62 HRC after induction hardening. The raceway surface of an RD 700 roller ball combination slewing ring should have a smooth, even finish, achieved by precise grinding. When you install it, the soft area should be on the opposite side of the primary load zone.

The state of the seal should also be in the same pass. The regular multi-lip nitrile seal is for general duty, the labyrinth seal is for mining dust, and the fluoroelastomer (FKM) seal is for offshore salt spray with chemical and UV resistance. Heng Guan Bearing keeps these figures in its inspection files for you to compare with your own incoming inspections. We recommend doing a quick visual inspection and rotation on delivery, as it verifies the bearing is ready to bolt in and start operating.

How Luoyang Heng Guan Solves Your RD 700 Slewing Bearing Challenges

• Official documents. Each purchase comes with a material certificate with heat number traceability, heat treatment record, 100% dimensional inspection report, and rotating torque sheet, so your audit trail is complete before the RD 700 slewing bearing arrives.
• Roller & ball knowledge. The RD 700 roller ball combination slewing ring is available in five roller-diameter classes from Ø32 mm to Ø50 mm with separately optimized roller length-to-diameter ratios, ball diameters, ring cross-sections and bolt patterns.
• Control of hardness and material. Quenched and tempered 42CrMo rings for core toughness, vacuum-degassed GCr15 steel to control inclusions, and induction-hardened raceways to 55-62 HRC, and precisely ground.
• Environment-matched sealing: General duty applications are sealed with standard multi-lip nitrile seals, labyrinth seals take care of mining dust, while FKM seals are resistant to salt spray, chemicals and UV for offshore platforms.
• Engineering assistance. An engineering staff of more than 50 evaluates load charts and drawings and can provide comprehensive CAD models for new build integration and run a trial build before serial release.
• International reach.Heng Guan Bearing partners with crane builders, wind turbine OEMs, mining equipment producers, and offshore integrators across Europe, the Americas, Asia and the Middle East, with documentation developed for each region.
• Fast, agile supply. Stock products ship in 7 to 15 days. Custom Seal, coating, and Gear Configurations Usually Take 4 to 6 weeks, and non-standard sizes can be reverse-engineered from your original ring

Conclusion

A well-certified bearing is a confident purchase. By checking documents, factory tests, dimensions, gear accuracy, clearance, and hardness, you can trust the RD 700 slewing bearing from Heng Guan Bearing to deliver steady rotation and long service life.

FAQ

Q: Which certificates should I request for an RD 700 slewing bearing?

 Ask for a quality system certificate, a material certificate with heat number traceability, and a full heat treatment record.

Q: What makes an RD 700 roller ball combination slewing ring special?

 It combines rollers and balls in one double-row structure, so the roller row carries the heavy axial and tilting loads while the ball row handles secondary loads and minor misalignment.

Q: Which accuracy grades are available?

Heng Guan Bearing offers P0, P6, P5, and P4 grades, so you can match precision to your duty cycle.

Q: How is hardness checked?

A hardness tester measures the raceway at marked test points, and the ground surface should read 55 to 62 HRC after induction hardening.

Q: Can I get gear data reviewed before ordering?

Yes. Send your drawing and gear details for a professional review, and the team will confirm module, tooth count, and meshing before production.

Ready to Order an RD 700 Slewing Bearing You Can Trust?

Send your drawings, load data, and inspection requirements to mia@hgb-bearing.com today. RD 700 slewing bearing will reply quickly with expert advice and a tailored quotation, so your next project begins with certified quality and complete confidence.

References

1. International Organization for Standardization. (2015). ISO 9001:2015 — Quality management systems — Requirements. ISO.

2. International Organization for Standardization. (2007). ISO 281:2007 — Rolling bearings — Dynamic load ratings and rating life. ISO.

3. International Organization for Standardization. (2013). ISO 1328-1:2013 — Cylindrical gears — ISO system of flank tolerance classification — Part 1: Definitions and allowable values of deviations relevant to flanks of gear teeth. ISO.

4. International Organization for Standardization. (2023). ISO 6508-1:2023 — Metallic materials — Rockwell hardness test — Part 1: Test method. ISO.

5. International Organization for Standardization. (2017). ISO 15243:2017 — Rolling bearings — Damage and failures — Terms, characteristics and causes. ISO.

6. Harris, T. A., & Kotzalas, M. N. (2007). Essential Concepts of Bearing Technology (5th ed.). CRC Press.
