RKS.23.0941 Slewing Bearings
• Road-roller keyword owner — LYHY (Hengguan's own MIC) directly hangs "Slewing Ring Bearings Rotary Bearings with Flange for Road Roller Rks. 23 0941" — only factory owns the road-roller scene at this size; competitor copy does not exist.
- Product Description
RKS.23.0941 Slewing Bearings – Light Series Ungeared Four-Point Contact Ball Slew Ring for Heavy-Duty Rotary Equipment

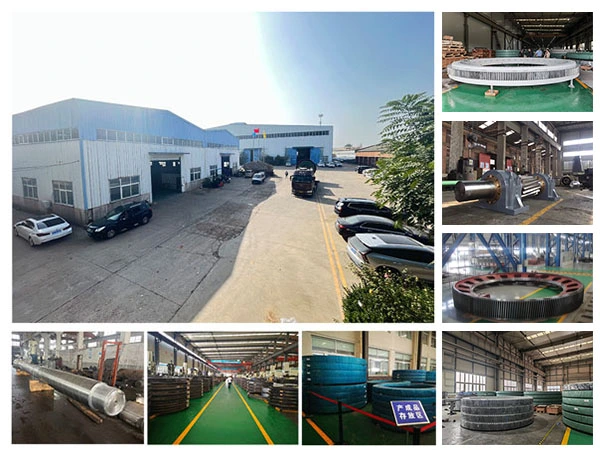

Luoyang Heng Guan Bearing Technology Co., Ltd. is a modern enterprise specializing in the R&D, manufacturing, and sales of high-precision bearings. Located in Luoyang, China's bearing industry hub, our 50+ member team brings over 30 years of expertise. The RKS.23.0941 Slewing Bearings is a light-series single-row four-point contact ball slewing ring without gear, built to SKF RKS.23 standards. With a 1048 mm OD, 834 mm bore, 56 mm height, and 54 kg weight, it delivers outstanding combined axial, radial, and tilting moment load capacity. ISO9001 certified. Products exported to 50+ countries.
What Is the RKS.23.0941 – SKF RKS.23 Light Series Ungeared Turntable Bearing?
The RKS.23 0941 is a single-row, four-point contact ball slewing ring belonging to SKF's RKS.23 light series. It carries combined axial, radial, and tilting moment loads in a compact, ungeared design.
Both inner and outer rings feature 18 mm through holes — no M12 threads — making it a true direct-drive turntable bearing. The inner-ring flange design simplifies mounting on road rollers, robot palletizers, solar trackers, radar antennas, and large filling machine turntables.
At 54 kg and just 56 mm tall, this bearing delivers heavy-duty performance in a light footprint. If you need a drop-in replacement for INA VLU200944, Kaydon L6-37P9Z, or Rollix 23-0941-01, this is your match.
Full Technical Specifications
Parameter | Value |
Mean raceway diameter (dm) | 941 mm |
Outside diameter (D) | 1048 mm (41.26 in) |
Centring diameter outer (D1 / D2) | 984 mm / 942.5 mm |
Bore diameter (d) | 834 mm (32.83 in), tolerance +0.7/0 |
Centring diameter inner (d1 / d2) | 898 mm / 939.5 mm |
Total height (H) | 56 mm (2.20 in), tolerance ±1 mm |
Weight | 54 kg |
Gear type | Without gear (ungeared) |
Outer-ring bolt circle (Je) | 1020 mm, 16 × 18 mm through holes |
Inner-ring bolt circle (Ji) | 862 mm, 20 × 18 mm through holes |
Ball diameter | 20 mm (four-point contact) |
Ring material | C45E / 42CrMo4 / 50Mn |
Raceway hardness | HRC 55–62 (induction hardened) |
Seal | NBR one-piece, –40 °C to +110 °C, sealed on both sides |
Lubrication | NLGI 2 lithium EP grease; 4 × AM8×1 grease nipples (inner ring) |
Speed | ≤ 1.5 m/s continuous / 2 m/s short-term |
Running accuracy | Radial ≤ 0.2 mm / Axial ≤ 0.3 mm |
Dynamic load rating (C) | 231 kN |
Static load rating (C₀) | 664 kN |
Cross Reference & Interchange Guide
Looking for a VLU200944 equivalent or a direct RKS.23.0941 replacement? The table below lists all confirmed interchangeable part numbers.
Brand | Part Number |
SKF | RKS.23.0941 / RKS.230941 |
INA / Schaeffler | VLU200944 / VLU200944N |
Kaydon | L6-37P9Z (L6 family) |
Rollix | 23-0941-01 |
Rothe Erde | 230.20.0900.013 Typ 21/1050.0 |
Rothe Erde / NBL | NBL.20.0944.200-1PPN |
TGB | SD.1050.20.00.C / 90-20 0941 / 0-37062 |
All these bearings share the same 1048 × 834 × 56 mm envelope. Our factory-direct unit is a verified drop-in for every reference above.
Key Product Advantages
Ungeared Direct-Drive Design
No gear teeth means lower weight and simpler integration for direct-drive systems. Both rings use 18 mm through holes for clean, fast bolting.
Cold-Resistant & Sealed on Both Sides
The NBR one-piece seal handles –40 °C to +110 °C. Whether you're running construction excavator in a Scandinavian winter or a solar tracker in the Middle East desert, this bearing stays protected.
Induction-Hardened Raceways
HRC 55–62 surface hardness on 42CrMo4 / 50Mn steel delivers excellent wear resistance and a long service life — even under shock and vibration loading.
Published Tolerance Data
Bore tolerance: +0.7/0 mm. OD tolerance: 0/–0.7 mm. You get full dimensional transparency for confident engineering and procurement decisions.

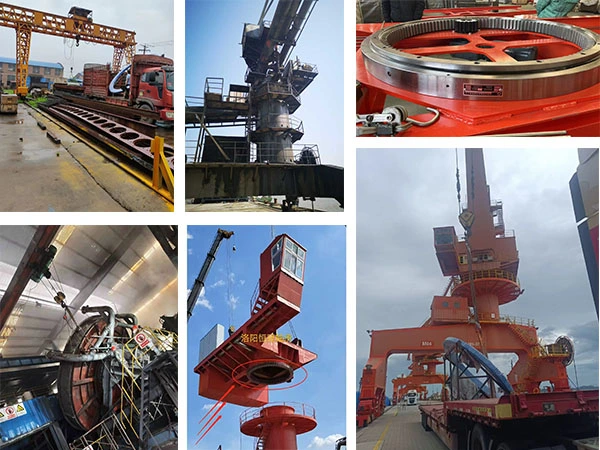

Typical Application Areas
The RKS.23.0941 Slewing Bearings four-point contact ball slewing ring without gear performs reliably across demanding industries:
· Road Rollers & Construction Excavator — high shock resistance, sealed protection against debris
· Large Direct-Drive Turntable Systems — ungeared flange design enables clean torque transmission
· Robot Palletizers & Logistics Automation — compact height with strong moment capacity
· Solar Trackers — corrosion-resistant, low-maintenance under continuous slow rotation
· Radar Antennas & Positioning Systems — high running accuracy (radial ≤ 0.2 mm)
· Large Filling & Packaging Lines — smooth, low-noise rotation for high-cycle operation
Certification
FAQ
Q: What is RKS.23.0941?
A: It is a light-series single-row four-point contact ball slewing bearing without gear, built to the SKF RKS.23 standard. Mean raceway diameter is 941 mm, bore is 834 mm, OD is 1048 mm, height is 56 mm, and weight is 54 kg.
Q: What are the exact dimensions of RKS.23 0941?
A: Bore 834 mm, OD 1048 mm, height 56 mm. Bolt circles: 1020 mm outer (16 × 18 mm holes) and 862 mm inner (20 × 18 mm holes). Bore tolerance +0.7/0 mm; OD tolerance 0/–0.7 mm.
Q: Is RKS.23.0941 equivalent to INA VLU200944?
A: Yes. INA VLU200944 / VLU200944N, Kaydon L6-37P9Z, Rollix 23-0941-01, and Rothe Erde 230.20.0900.013 / NBL.20.0944.200-1PPN are all confirmed interchangeable. Note: geared versions are RKS.21.0941 (external gear) and RKS.22.0941 (internal gear).
Q: What is the load capacity?
A: Dynamic axial load rating C = 231 kN; static axial load rating C₀ = 664 kN. The four-point contact design handles combined axial, radial, and tilting moment loads simultaneously.
Q: Is RKS.23.0941 in stock? What is the lead time?
A: Stock units ship within 3–7 business days. Non-stock standard configurations take 25–30 days. MOQ is 1 piece. Contact Us for current availability and factory-direct pricing.
Contact Us
Ready to order or need a custom quote with RKS.23.0941 Slewing Bearings? Email mia@hgb-bearing.com — our engineers respond within 24 hours.
