Port Crane Slewing Bearing Selection Guide for Engineers

Selecting a​​​​​​​ port crane slewing bearing requires more than matching an outside diameter to an existing mounting position. The bearing must support the crane’s axial and radial loads, resist overturning moments, transmit rotation through its mounting structure or gear teeth, and continue to function reliably in an environment subject to salt spray, moisture, dust and different temperatures. Therefore the selection procedure of engineers and procurement teams should begin from the actual load spectrum and operational conditions of the crane and not a catalogue size alone. A strong slewing bearing will improve the stability of rotation, make maintenance planning easier and reduce the chance of premature raceway, gear or mounting problems. Even when the correct basic dimensions are present, an unsuitable bearing may be vulnerable to high contact stresses, abnormal wear, bolt loading, seal damage or an excessively short service life. This is a guide to the primary engineering factors that should be addressed before specifying or buying a bearing for a port crane.

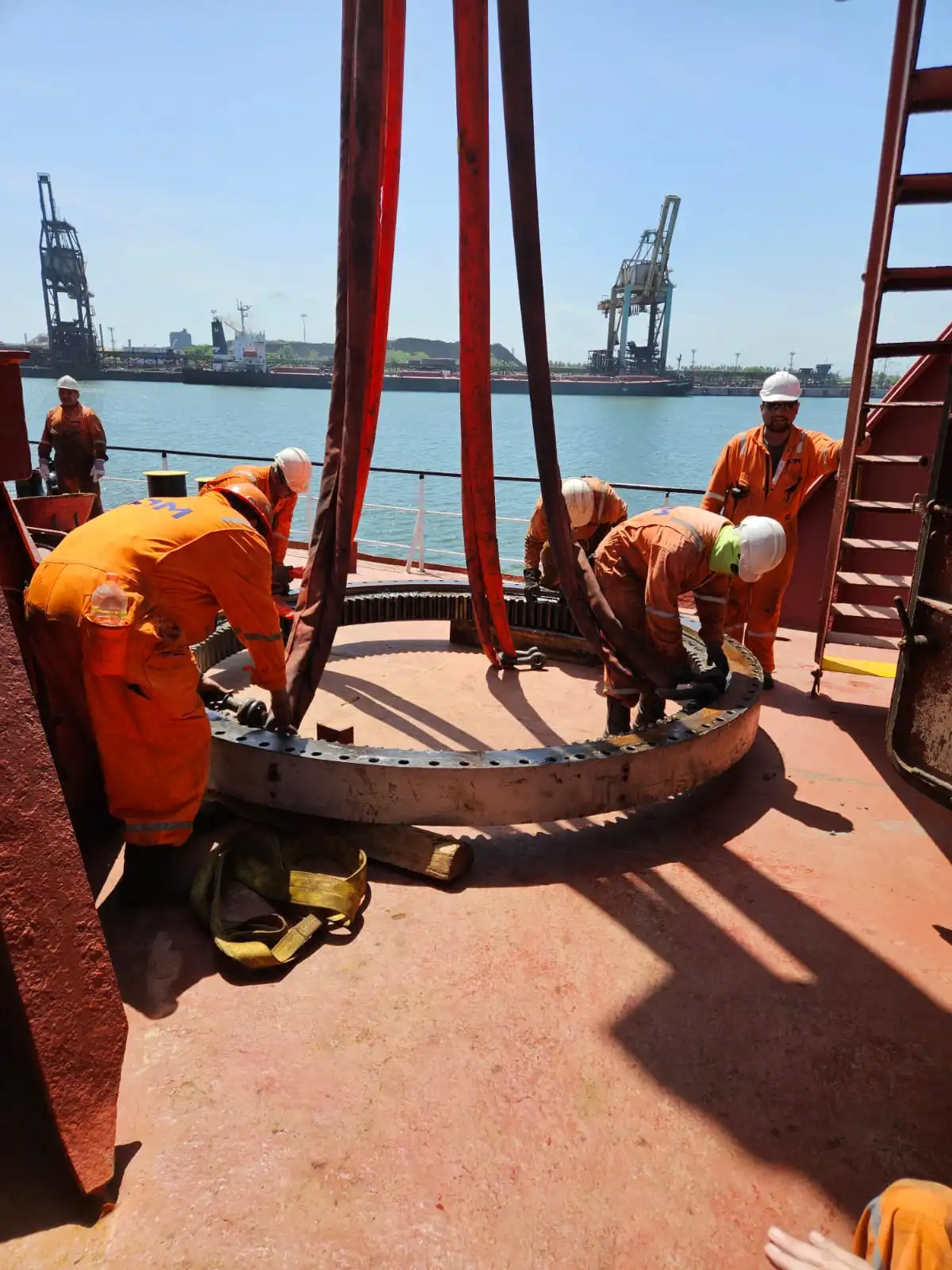

How Does a Slewing Bearing Support Port Crane Rotation?

A slewing bearing performs two main functions: it carries the rotating superstructure, and it provides a controlled rotational contact between the crane structure and its supporting base. Depending on the crane design, the bearing can additionally contain an integrated gear, which is driven by a pinion and drive system for rotating the upper structure.

Unlike a small industrial bearing working under relatively stable conditions, a crane slewing bearing may be subjected to combined loads varied with the change of boom position, lifted load, working radius, and working direction. Hence, the bearing must be estimated in the whole construction of the crane.

Main Bearing Components Engineers Should Review

A basic slewing bearing comprises an inner ring, an outer ring, rolling elements, raceways, seals, and lubrication supplies. Depending on the design, the bearing may contain balls or rollers and may be furnished with an external or internal gear.

The structural load path is provided by the inner and outer rings. The bearing capacity of repeated loading is influenced by the dimensions, material condition, heat treatment, and machining accuracy. The raceways are the contact surfaces for the rolling elements. For long-term performance, therefore, the raceways’ geometry and hardness are especially crucial.

The load characteristics should also be suitable to the rolling element configuration. Four-point contact ball bearings may offer a useful option for combined loading and relatively compact construction. Higher load capacity or greater structural stability may be achieved with double-row ball designs. 3-row roller arrangements can provide strong load-carrying capacity for heavy-duty applications with large combined loads.

Gear geometry is also a significant aspect for geared slewing bearings. The gear module, tooth size, pitch diameter, hardness, precision, and contact condition should be in accordance with the crane drive system. Choosing the bearing without evaluating the pinion and gear interface can lead to needless wear or gearbox difficulties down the line.

Material and Heat Treatment Considerations

Material selection should be assessed combined with heat treatment and load circumstances. Large slewing bearing rings are made from medium carbon or alloy steels for their strength, machinability, and resistance to repetitive loads. The various bearing components can be made of 42CrMo or 50Mn, depending on the manufacturer’s design and application requirements.

The bearing performance is not defined by the material designation. Engineers should additionally evaluate the heat treatment procedure, the acquired hardness, hardened depth (if appropriate), metallurgical quality, and inspection controls. Different needs of the main ring body could include raceways and gear teeth. The manufacturing process should be examined at the component level.

In appropriate designs, rolling elements can be made using bearing steels such as GCr15SiMn. From a procurement standpoint, the issue is not only picking a familiar steel grade but also validating that the material and heat-treatment condition selected are adequate for the specified load, fatigue resistance, and operating environment.

Load Analysis Before Bearing Selection

A usual starting point for the selection of a slewing bearing for a port crane should be the load analysis. The bearing is not simply affected by the weight of the lifted load. The loads imparted to the bearing can be varied considerably by different crane structures, boom positions, working radii, accelerating and braking forces, wind effects, and other operating conditions.

Axial Load, Radial Load, and Overturning Moment

The engineers should set at least three basic load inputs: axial load, radial load, and overturning moment.

Axial load is in a direction along the axis of rotation of the bearing. It can comprise the weight transferred from a spinning structure of the crane and lifted load. Radial Load: The load acting perpendicular to the axis of rotation is called radial load. The overturning moment is of particular interest because a load placed at a large operating radius can create a big moment even if the weight of the cargo has not changed.

For example, the same container weight can lead to very different bearing loading situations if the boom or operating radius is changed. That is why choosing a bearing merely by its highest lifting capability can be misleading.

Where possible, representative and maximum operating loads should be applied to the manufacturer. The load scenarios should also discriminate between normal operation and start-up, shutdown, emergency braking, and other expected transient events.

Load Spectrum and Duty Cycle

Port cranes often operate repeatedly rather than continuously at one fixed load. A port crane slewing bearing may experience light loads during repositioning, higher loads during lifting, and changing overturning moments as the working radius changes.

For this reason, engineers should provide information about:

• Maximum lifted load

• Typical working load

• Working radius

• Maximum and normal rotation speed

• Rotation frequency

• Operating hours

• Start-stop frequency

• Expected load distribution

• Environmental conditions

A bearing selected for a crane with frequent high-load cycles may require a different configuration from one used on equipment with occasional lifting operations.

The load spectrum is also useful when discussing service life with the bearing manufacturer. Instead of evaluating only one theoretical maximum load, the manufacturer can assess the range of operating conditions that the bearing is expected to experience.

Static Stability and Structural Stiffness

Bearing selection should not be separated from the stiffness of the supporting structure. A bearing may have sufficient theoretical load capacity while the surrounding mounting structure is too flexible to maintain the required contact conditions.

The upper and lower structures, mounting flange, bolt connections, and bearing rings work together as a load-transfer system. Excessive deformation can change the load distribution around the raceway and increase localized stress.

For demanding port crane applications, engineers should therefore review bearing calculations together with the mounting structure rather than treating the bearing as an isolated component.

Dimensional and Interface Requirements

Correct dimensions are essential, but dimensional compatibility involves much more than the bearing's outside diameter.

Mounting Diameter, Bolt Pattern, and Bearing Height

The bearing drawing should be compared with the crane's existing mounting structure. Important dimensions include the inner diameter, outside diameter, overall height, mounting flange dimensions, bolt-hole pattern, bolt-hole diameter, and mounting surface requirements.

The bolt arrangement deserves particular attention because the bearing transfers substantial loads through the mounting bolts. Bolt quantity, diameter, grade, preload requirements, and tightening procedures should be considered together with the bearing manufacturer's recommendations and the crane structure.

If a replacement bearing is being considered, engineers should not rely solely on measurements taken from the old component. The original drawing, equipment documentation, and actual mounting dimensions should be cross-checked to reduce the risk of dimensional errors.

Gear and Drive Compatibility

When the slewing bearing includes an integral gear, the gear must match the crane's pinion and drive system.

Engineers should verify parameters such as gear type, module, number of teeth, pitch diameter, tooth hardness, gear accuracy, rotation direction, and required backlash. The pinion should also be inspected because replacing the bearing while leaving a heavily worn pinion in service may cause poor tooth contact.

Gear lubrication is equally important. The lubricant must be appropriate for the gear design and operating environment, and the lubrication method should allow the gear teeth to receive sufficient lubricant during repeated crane operation.

Environmental Protection for Port Applications

Port cranes operate in environments that are considerably more demanding than many indoor industrial machines. Salt spray, humidity, rain, airborne dust, temperature variation, and limited access for maintenance can all influence bearing performance.

Sealing and Corrosion Protection

The sealing arrangement should be selected according to the actual environmental exposure. Effective seals help limit the entry of water, dust, and other contaminants into the raceway while retaining grease inside the bearing.

Seal material should also be matched to temperature, lubricant compatibility, and environmental exposure. Nitrile rubber and fluororubber are examples of materials that may be selected for specific conditions, but the appropriate choice depends on the manufacturer's design and operating requirements.

Corrosion protection should cover more than the visible external surface. Engineers should consider the bearing rings, gear teeth, mounting surfaces, exposed fasteners, lubrication points, and other interfaces that may be exposed to marine conditions.

Lubrication and Contamination Control

Grease condition is closely related to bearing reliability. A suitable lubrication plan should specify the correct lubricant type, quantity, replenishment method, and service interval.

More grease is not automatically better. Excessive lubrication can also create problems, while insufficient or contaminated grease may increase friction and accelerate raceway or rolling-element damage.

In port applications, contamination control is especially important. Maintenance teams should check seals, grease outlets, lubrication points, and exposed surfaces during routine inspections. If water contamination or unusual grease discoloration is detected, the cause should be investigated rather than simply adding more lubricant.

Choosing the Right Slewing Bearing Configuration

There is no single slewing bearing configuration that is ideal for every port crane. The correct design depends on the combination of load, available installation space, rotation requirements, gear arrangement, and expected operating life.

Ball and Roller Bearing Configurations

Four-point contact ball bearings can offer a relatively compact solution for applications involving combined axial, radial, and moment loading. They may be suitable where installation space and weight are important considerations.

Double-row ball bearings provide another option when increased load capacity or stability is required. Their suitability depends on the actual load distribution and bearing geometry rather than simply on the number of rows.

Three-row roller bearings are commonly considered for applications where very high load capacity is required. Their multiple roller arrangements can distribute heavy loads over several raceway paths, but the overall design, mounting requirements, lubrication, and cost of a port crane slewing bearing should be considered before selection.

The key point for engineers is that the bearing type should follow the load analysis. Choosing a configuration only because it has a higher nominal capacity can result in unnecessary weight, cost, or installation requirements.

Standard Design or Customized Bearing?

Standard bearings can provide shorter lead times and simpler procurement when their dimensions and performance characteristics match the application. However, port cranes frequently have project-specific mounting dimensions, gear requirements, load conditions, or space limitations.

A customized port crane slewing bearing can be designed around the actual equipment requirements. Customization may involve dimensions, gear parameters, mounting holes, internal clearance, sealing arrangements, lubrication provisions, or material and heat-treatment specifications.

For replacement projects, engineers should provide the existing bearing drawing, equipment model, load information, mounting dimensions, and operating history. This gives the manufacturer enough information to determine whether an equivalent replacement is appropriate or whether a revised design would provide a better solution.

How to Evaluate a Slewing Bearing Manufacturer?

Choosing the manufacturer is as important as choosing the bearing specification. A technically suitable design can still create problems if manufacturing consistency or quality control is inadequate.

Manufacturing and Inspection Capabilities

Engineers should ask the manufacturer how the bearing rings are machined, how raceway dimensions are controlled, and how heat treatment is verified.

Useful quality documentation may include:

• Material certificates

• Heat-treatment records

• Dimensional inspection reports

• Hardness inspection results

• Raceway inspection data

• Gear inspection reports

• Runout measurements

• Final inspection records

• Product drawings and technical data

The exact documentation should correspond to the project's quality requirements. For critical crane equipment, traceability from raw material through machining, heat treatment, assembly, and final inspection can provide additional confidence.

Engineering Support and Application Experience

A supplier should be able to discuss the actual crane operating conditions rather than simply recommend a bearing based on dimensions.

A technically capable manufacturer should be prepared to review axial load, radial load, overturning moment, rotation speed, duty cycle, environmental exposure, gear requirements, and mounting conditions.

Experience with port and marine equipment can also be valuable because these applications involve environmental and maintenance challenges that may not appear in a standard industrial installation.

Conclusion

Selecting a port crane slewing bearing requires careful consideration of the technical needs, operating environment, mounting structure, and expected duty cycle. The correct bearing cannot be determined from diameter or lifting capacity alone. Engineers should evaluate axial and radial loads, overturning moment, load spectrum, rotation requirements, gear compatibility, mounting conditions, sealing, lubrication, and corrosion protection as an integrated system.

The manufacturer's engineering capability is also an important part of the selection process. A reliable supplier should be able to review application data, provide appropriate drawings and technical documentation, explain material and heat-treatment choices, and support installation and maintenance requirements.

For a new crane or replacement project, providing complete operating and dimensional information before requesting a quotation can significantly improve the selection process. When the bearing design, crane structure, installation method, and maintenance plan are considered together, the resulting solution can provide more predictable performance, longer service life, and lower lifecycle risk in demanding port operations.

FAQ

1. How often should port crane slewing bearings be inspected?

For most port crane uses, eye checks should be done once a month. More in-depth checks should be done every three months, including checking the lubricant and sizes. Cranes that are used a lot or that work in tough settings may need to be inspected more often to make sure they are working at their best and problems are found quickly.

2. What distinguishes high-performance slewing bearings from standard models?

High-performance bearings are made with better materials, with tighter production standards, and with special treatments that make them stronger, more resistant to corrosion, and last longer. Marine-specific features include improved sealing systems, coatings that don't rust, and optimized internal shapes made for the way port cranes load and unload.

3. When should bearings be repaired versus replaced?

Cleaning and re-greasing methods often work well to fix minor surface wear and contamination problems. However, major physical wear, structural damage, or failure patterns that happen over and over again usually mean that the part needs to be replaced. When deciding whether to repair or replace something, cost analysis should look at both the short-term costs of fixing it and the long-term effects on its dependability.
