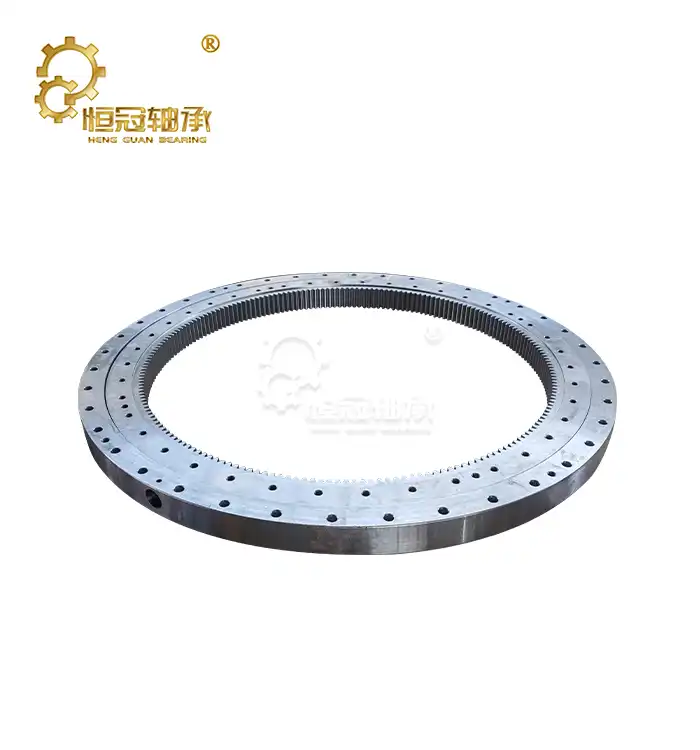

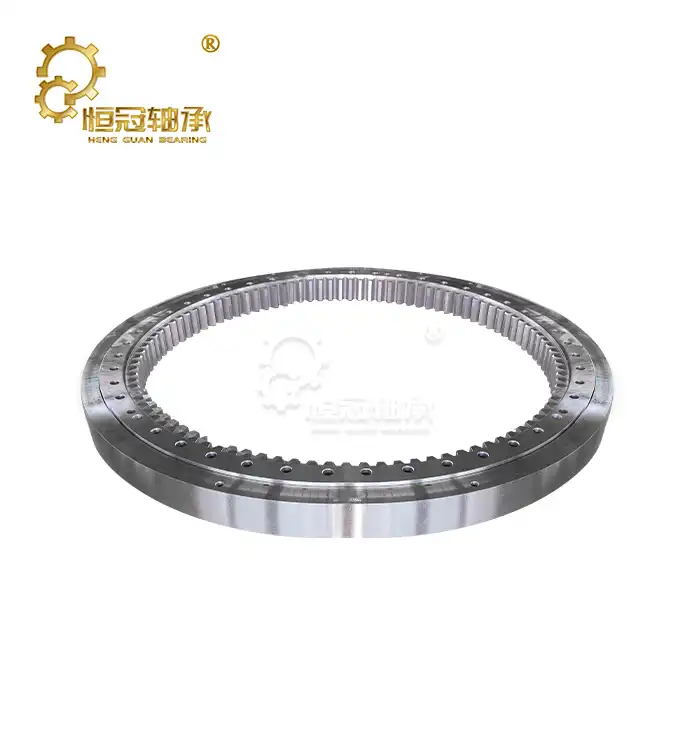

Liugong Excavator Slewing Bearing: Professional OEM-Grade Replacement Solutions

The Liugong Excavator Slewing Bearing serves as the critical rotational interface between the upper turret and undercarriage, simultaneously handling axial loads,radial loads, and tilting moments during every digging cycle. At Luoyang Heng Guan Bearing Technology, we specialize in manufacturing precision-engineered slewing bearings that match OEM specifications for the complete Liugong excavator range—from compact 1.5-ton models to heavy-duty 90-ton mining machines. Our products deliver reliable performance in demanding applications where bearing failure means costly downtime.

What Makes a Quality Slewing Bearing for Your Liugong Equipment?

Your excavator's swing circle must withstand thousands of rotation cycles daily while supporting loads that exceed 50 tons in larger models. We manufacture product units using forged alloy steel—specifically 42CrMo and 50Mn grades—that provide superior matrix density compared to cast alternatives.

The raceway surfaces receive precision induction hardening treatment. This process creates a hardened layer 3-5mm deep with consistent HRC 55-62 surface hardness. This engineering approach directly addresses the contact fatigue that causes raceway spalling in harsh environments.

Contact our engineering team: mia@hgb-bearing.com

Technical Specifications and Performance Parameters

Liugong Model Product Parameters

Core Structural Configurations

Single-Row Four-Point Contact Ball Bearings

These designs efficiently distribute axial and radial loads through four contact points per ball. You'll find this configuration in 6-25 ton Liugong models where smooth rotation and moderate load capacity meet operational requirements.

Cross-Roller and Three-Row Roller Bearings

Heavy-duty and mining-grade excavators demand maximum rigidity. Three-row roller designs provide exceptional resistance to impact loads during rock-breaking operations. The roller arrangement maintains rotational stability even under extreme tilting moments.

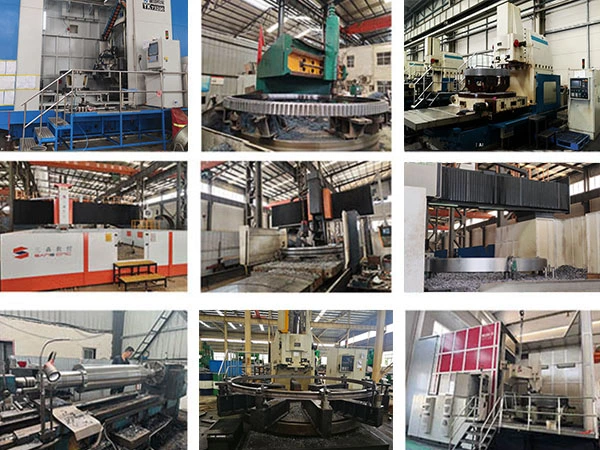

Manufacturing Process That Ensures Reliability

Precision Forging

We start with integral forging rather than welded construction. This process eliminates weak points and creates a homogeneous grain structure throughout the ring material.

CNC Machining

Modern vertical lathes and machining centers maintain tight tolerances on mounting dimensions. Your bearing will align perfectly with existing bolt hole patterns on your Liugong chassis.

Induction Hardening

Medium-frequency induction equipment delivers controlled heat treatment. The process parameters are adjusted based on ring size to achieve uniform hardness distribution across the entire raceway length.

Gear Tooth Processing

Precision hobbing machines cut the external or internal gear teeth. Post-hardening tooth grinding ensures correct tooth profile geometry for smooth engagement with your swing motor pinion.

Addressing Common Field Challenges

High-Impact Loading Environments

Mining and quarry applications subject bearings to severe shock loads. Our heat treatment process creates a tough core beneath the hardened surface layer. This combination absorbs impact energy while maintaining surface wear resistance.

Contaminated Operating Conditions

Construction sites expose bearings to abrasive dust and water. We implement triple-sealing arrangements: primary grease retention seals, secondary dust exclusion seals, and tertiary moisture barriers. This system extends maintenance intervals significantly.

Corrosive Coastal Applications

For excavators working in harbor construction or marine environments, we apply specialized anti-corrosion coatings. The treatment protects mounting surfaces and non-hardened areas from salt-induced oxidation.

Custom Solutions for Non-Standard Requirements

Standard catalog bearings cover most applications. However, modified equipment or specialized excavator may require custom engineering. Our technical team can design Liugong Excavator slewing bearing solutions based on:

• Physical sample measurement (reverse engineering)
• Customer-provided technical drawings
• On-site dimensional verification

Quality Verification Process

Every bearing undergoes multi-stage inspection:

Material Testing: Ultrasonic examination detects internal forging defects before machining begins.

Dimensional Verification: CMM (Coordinate Measuring Machine) confirms that mounting holes, pitch circles, and gear parameters match specifications.

Hardness Testing: We verify both surface hardness and case depth through destructive sampling of test pieces from each production batch.

Rotation Testing: Pre-assembly rotation tests identify any geometric irregularities that could cause vibration or uneven load distribution.

Installation and Maintenance Guidance

Proper installation is critical for bearing longevity. We provide detailed technical documentation covering:

• Bolt torque sequences and values
• Raceway pre-lubrication procedures
• Gear mesh alignment verification methods
• Initial break-in operating procedures

For upkeep, we prescribe grease lubrication each 250 working hours. Pivot the turret amid grease to disseminate new grease all through the raceway. Screen hub clearance annually—increases surpassing 1.5-2.0mm show wear drawing nearer substitution limits.

Global Supply Capability

We keep up prepared stock for high-demand Liugong models, empowering fast shipment to your area. Our coordinations arrange bolsters conveyance to over 50 nations over North America, Europe, Southeast Asia, and the Middle East.

For critical substitution needs, contact our designing group at mia@hgb-bearing.com. We can speed up generation and organize need shipping to minimize your hardware downtime.

FAQ

Q: What causes clicking sounds amid excavator rotation?

A: Conceivable causes incorporate equip harm, flotsam and jetsam, or free mounting jolts. Assessment is recommended.

Q: How do I select the redress bearing for my Liugong excavator?

A: Send us your show and serial number, and we'll affirm the adjust bearing.

Q: Can I overhaul to a higher-capacity bearing?

A: Yes. We can optimize materials and plan to make strides execution where feasible.

Q: What is the ordinary benefit life?

A: For the most part 8,000–12,000 working hours with legitimate maintenance.

Q: Do you give establishment support?

A: Yes. Specialized direction and on-site bolster are accessible when needed.

Q: What guarantee do you offer?

A: We give a 12-month guarantee against fabricating absconds.

Contact Us

For technical inquiries, quotations, or emergency bearing replacement support for Liugong Excavator slewing bearing, reach out to our team at mia@hgb-bearing.com.
