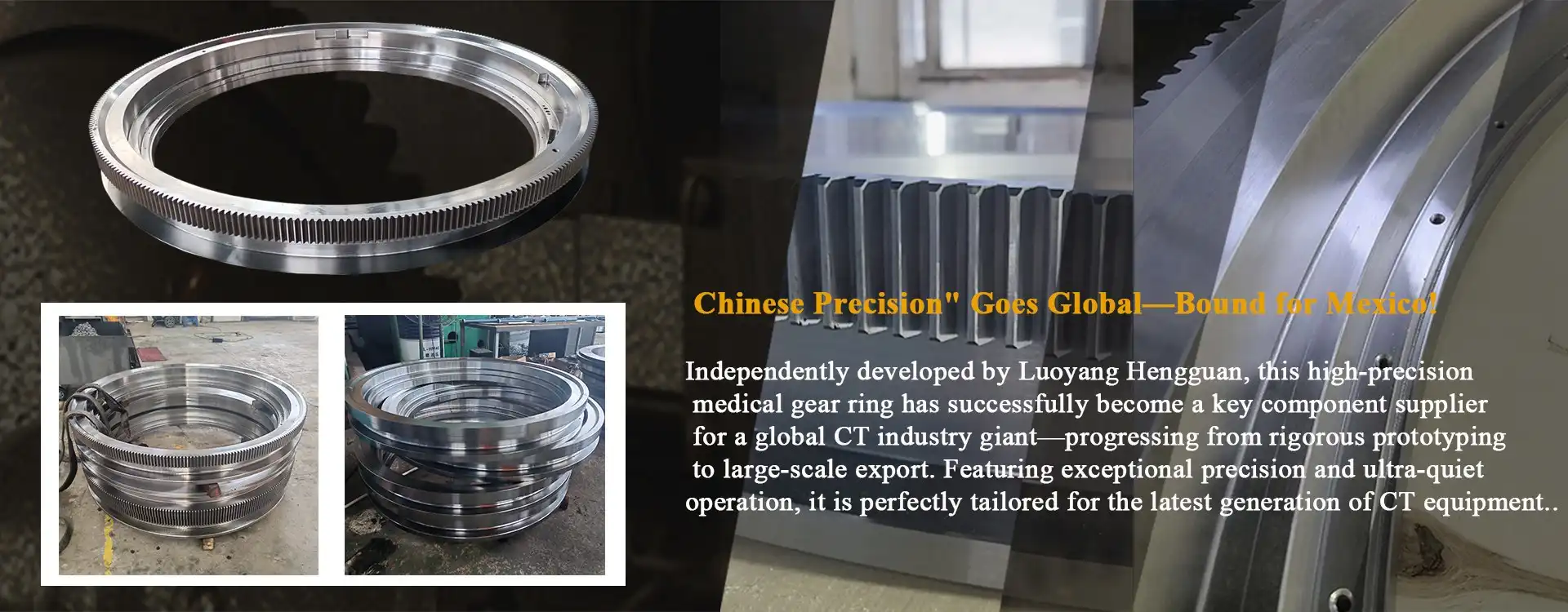

Need a Custom CT Machine Slewing Ring for OEM Medical Devices?

How do you ensure your CT scanner delivers accurate, artifact-free imaging? At the heart of every CT gantry is the slewing ring bearing, a precision component that enables ultra-smooth rotation under continuous load. Any deviation in its performance — vibration, uneven motion, or thermal distortion — directly impacts image quality and patient outcomes. At Luoyang Heng Guan Bearing Technology, we specialize in custom CT machine slewing rings for OEM medical devices, with proven exports to international markets including Israel. This guide walks you through the critical considerations when specifying a slewing ring for high-end medical imaging equipment.

Why is a CT Machine Slewing Ring Critical for Imaging Accuracy?

The CT gantry rotates thousands of times over its service life. Even slight vibration or irregular motion can create image artifacts, compromising diagnostic accuracy. A single-row, four-point contact ball bearing is the standard for CT machines, balancing axial, radial, and overturning load capacity within a compact gantry envelope. Key performance factors include:

• Positional accuracy: Maintains consistent rotation to prevent image distortion
• Thermal stability: Resists deformation under continuous use
• Low noise: Ensures patient comfort during scanning
• Material and surface quality: High-grade steel and precise raceway geometry ensure long-term reliability

Selecting the right bearing is not optional — it is a precision-critical decision in OEM medical device design.

Key Design Considerations for Custom CT Machine Slewing Ring Solutions

Custom CT machine slewing rings must fit tight dimensional envelopes, integrate with gantry drives, and accommodate encoder mounts. Luoyang Heng Guan Bearing Technology supports diameters from 50 mm to 10,000 mm, including standard CT gantry sizes such as 1960×48mm. Rings are made from 42CrMo or 50Mn alloy steel, while rolling elements use GCr15SiMn high-purity bearing steel, ensuring consistent hardness and dimensional stability. Custom options allow adjustment of geometry, gear configuration, and surface treatment to meet unique OEM requirements.

Technical Specifications

This table gives OEM engineers a clear overview of both standard and customizable options, making it easier to match the bearing to gantry specifications and operational requirements.

How Do OEM Manufacturers Select the Right CT Machine Slewing Ring?

Three key criteria guide OEM selection:

1. Dimensional Compatibility: The bearing must match the gantry assembly without modification — check bolt circle, overall height, inner bore, and gear module.
2. Material Traceability: Confirm steel grade, heat treatment, and certification for every batch.
3. Supplier Quality Systems: Include incoming inspection, in-process checks, raceway hardness verification, and final rotation testing.

Luoyang Heng Guan Bearing Technology provides full inspection documentation and maintains precise production controls aligned with medical-grade standards. For technical consultation, reach out to mia@hgb-bearing.com — we respond with a detailed assessment within one business day.

​​​​​​​

Advanced Manufacturing and Quality Standards

Producing medical-grade slewing rings demands tight tolerances and rigorous process control.

At Luoyang Heng Guan Bearing Technology, located in Luoyang — China's recognized bearing hub — we combine experienced bearing designers, skilled production technicians, advanced CNC machining equipment, and precision testing instruments to ensure the consistent quality of every CT Machine Slewing Ring we manufacture.

Raceways undergo precision grinding and hardness treatment to achieve smooth, stable contact geometry. Bearings are run-in tested and checked for rotational smoothness, supporting low-noise, low-vibration operation. Our products have been successfully exported to international medical markets, including Israel, confirming compliance with global precision standards.

Why Choose a Custom CT Machine Slewing Ring?

Next-generation CT and MRI systems demand higher rotational speeds, wider bores, and tighter tolerances. Standard bearings may not meet these requirements. Custom manufacturing allows OEM developers to:

• Specify exact outer diameter, gear module, and bearing height
• Choose material grades and pre-lubrication for clean-room assembly
• Ensure compatibility with advanced gantry designs and AI-assisted imaging

Luoyang Heng Guan Bearing Technology builds slewing rings to fit your design — not the other way around — supporting diameters from 50 mm to 10,000 mm and offering tailored material options for prototype and production volumes.

Conclusion

CT machine slewing rings are precision-critical components. Luoyang Heng Guan Bearing Technology delivers both custom and standard solutions built to OEM medical standards, ensuring consistent performance, reliability, and patient-safe operation. Early specification and collaboration with our engineering team help secure the right bearing for your device platform.

FAQ

Q1: What bearing structure is used in your CT machine slewing rings?
A: Single-row, four-point contact ball bearing — optimized for compact gantry integration and multi-directional load handling.

Q2: Can you manufacture non-standard sizes?
A: Yes — we support custom diameters from 50mm to 10,000mm.

Q3: What materials are used for rolling elements?
A: GCr15SiMn high-purity bearing steel for consistent hardness and long-term stability.

Q4: Do you provide inspection and material documentation?
A: Yes — each order includes material certifications and dimensional inspection reports.

Q5: Has your slewing ring been used internationally?
A: Yes — exported to medical markets including Israel, validating international quality acceptance.

Partner With Us for Your Next OEM Medical Bearing Project

Ensure your next CT or MRI platform is equipped with a high-performance CT Machine Slewing Ring built for precision. Send your specifications or technical drawings to mia@hgb-bearing.com for a tailored solution. Backed by decades of bearing manufacturing expertise, advanced production capabilities, and responsive engineering support, Luoyang Heng Guan Bearing Technology delivers reliable CT Machine Slewing Ring solutions for OEM medical device manufacturers worldwide.

References

1. Bushberg, J. T., Seibert, J. A., Leidholdt, E. M., & Boone, J. M. (2011). The Essential Physics of Medical Imaging (3rd ed.). Lippincott Williams & Wilkins.

2. Harris, T. A., & Kotzalas, M. N. (2006). Rolling Bearing Analysis: Essential Concepts of Bearing Technology (5th ed.). CRC Press.

3. ISO 13485:2016. Medical Devices — Quality Management Systems — Requirements for Regulatory Purposes. International Organization for Standardization.

4. IEC 60601-1:2005. Medical Electrical Equipment — General Requirements for Basic Safety and Essential Performance. International Electrotechnical Commission.

5. Kalender, W. A. (2011). Computed Tomography: Fundamentals, System Technology, Image Quality, Applications (3rd ed.). Publicis Publishing.

6. Brändlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. (1999). Ball and Roller Bearings: Theory, Design and Application (3rd ed.). John Wiley & Sons.
