How Do Three Row Roller Slewing Bearings Reduce Maintenance Costs?
What's actually eating your equipment spend? Not the capital cost. It's the stuff that sneaks up on you — unplanned downtime, midnight repair calls, the bearing that gave out two years early. Dig into that, and you'll usually find a slewing bearing at the center of it. If you're running tower cranes, excavators, or port gear, Three Row Roller Slewing Bearings might be what you've been sleeping on. Luoyang Heng Guan Bearing Technology Co., Ltd. has been elbows-deep in this for twenty-plus years, and plenty of our customers have knocked their slewing bearing maintenance costs down 40% — sometimes more — just by ditching single row designs.
The Load Distribution That Keeps Wear in Check

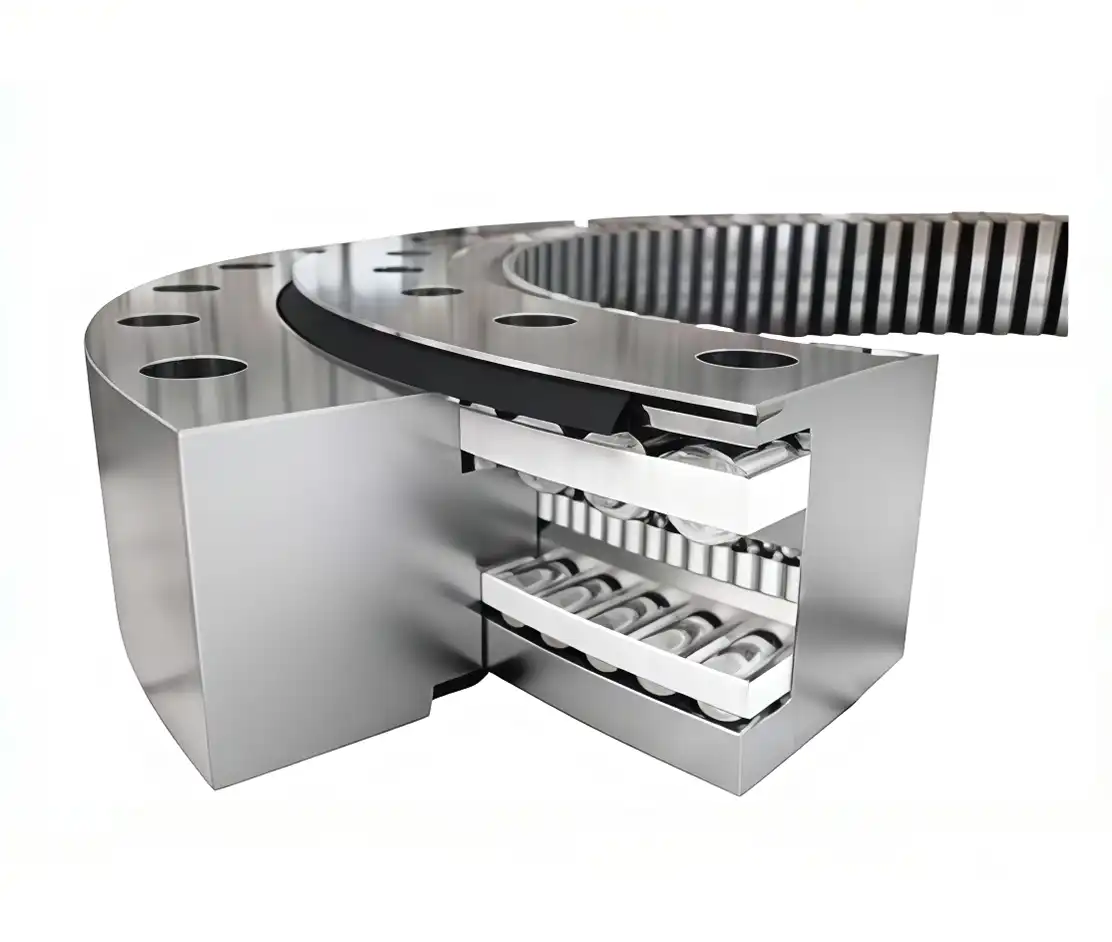

Three Row Roller Slewing Bearings — the name's not fluff. Open one up: three independent roller tracks, each doing exactly one job. Two axial rows carry vertical and tipping forces. One radial row handles sideways loads. Nobody's moonlighting. Nobody's overloaded.
Flip that around. A single row bearing? Every element juggles axial, radial, and moment loads simultaneously. Stress concentrates at contact points, wear goes uneven, and suddenly you're staring at a heavy equipment bearing replacement way ahead of schedule.
| Cost Factor | Three Row Roller Slewing Bearings | Single Row / Double Row Designs |
|---|---|---|
| Load Per Rolling Element | Split across three dedicated tracks — each row bears one load type | All load types concentrated on fewer contact points |
| Wear Pattern | Even, predictable, gradual | Uneven — accelerated wear at overloaded zones |
| Typical Service Interval | Extended — lower contact stress means slower degradation | Shorter — more frequent relubrication and inspection needed |
| Replacement Downtime | Bolt-on design; swapped in hours | Often requires more disassembly |
| Contamination Resistance | Triple-seal protection on all rows | Fewer sealing zones; faster contamination ingress |
At Luoyang Heng Guan Bearing Technology Co., Ltd., our Three Row Roller Slewing Bearings run 1000–8000 mm ID. Rings: 42CrMo or 50Mn alloy steel. Rollers: GCr15SiMn, hardened. Precision grades P0–P4. Split the load three ways, and per-roller stress drops hard.
Built-In Design Features That Stretch Service Life
What makes Three Row Roller Slewing Bearings cheaper over the long haul? Not one magic bullet — a stack of smart calls.
The rollers. Cylindrical rollers make line contact with raceways, not point contact like balls. Bigger contact patch, lower stress. If roller bearing load capacity numbers matter: a three-row setup handles ~3× the moment load of a same-size single row ball bearing. Less stress → less wear → longer stretches between lube jobs.
Mounting. Bolt-on. No press fits, no torches, no heating a bearing housing at 2 AM. When heavy equipment bearing replacement comes due — and with Three Row Roller Slewing Bearings, you're counting years, not months — your crew swaps it in hours. Equipment's back online, labor bill stays sane.
Seals. Every Three Row Roller Slewing Bearing from our shop ships with imported NBR or FKM seals, a labyrinth-plus-elastomer layout. Mining dust, construction grit, salt spray — doesn't matter. Good seals mean you're not gambling on contamination failures.
Sizing Three Row Roller Slewing Bearings for a new build or retrofit? Shoot us an email at mia@hgb-bearing.com — we'll run load calcs, walk you through gear options (internal, external, gearless), and make sure you're not overpaying or under-spec'ing into an early failure.
Where the Biggest Cost Reductions Happen
Where do Three Row Roller Slewing Bearings move the needle on maintenance spend? Pattern's pretty consistent across the board:
| Industry | Key Equipment | How Three Row Roller Slewing Bearings Cut Costs |
|---|---|---|
| Construction & Lifting | Tower cranes, crawler cranes, concrete pumps | Handles combined slewing + luffing loads without supplemental bearings; fewer components to maintain |
| Mining & Metallurgy | Bucket wheel excavators, continuous casters, rolling mills | Triple-seal protection against abrasive dust; higher rigidity means less vibration-induced wear on surrounding structures |
| Port & Marine | Ship-to-shore cranes, container handlers, offshore platforms | Corrosion-resistant sealing options; bolt-on replacement minimizes vessel/terminal downtime |
| Wind Energy | Yaw and pitch systems, turbine rotors | Sustains precision under gust loads; extended relubrication intervals cut tower climbing maintenance trips |
| Tunneling & Infrastructure | Tunnel boring machines, bridge erection equipment | High moment capacity handles extreme overturning loads without deformation; fewer mid-project bearing swaps |
Luoyang Heng Guan Bearing Technology Co., Ltd. ships Three Row Roller Slewing Bearings into all these sectors. Common thread? Wherever bearing downtime reduction means real money, three row pays for itself, usually faster than the finance guys expect.
Smart Maintenance That Protects the Investment
Even the best Three Row Roller Slewing Bearings aren't immortal — but keeping them happy is simpler than you'd think:
- Lubrication: Every 100 hours or monthly. Rotate the bearing while greasing — don't pump it in a stationary. Miss the radial row because you skipped turning it? You just bought yourself a bearing.
- Seal checks: Quarterly. Cracked, hardened, or shifted? Swap it. A $20 seal vs. a five-figure bearing replacement — easy call.
- Bolt torque: Check at 50 hours, then annually. Loose bolts → mounting surface shifts → vibration → trouble. Don't let it get there.
- Noise and drag: Hear grinding or feel drag? Stop and look. Bearings don't fix themselves, and hoping it goes away isn't a plan.
Here's the thing about three rows from a maintenance perspective: wear creeps, doesn't jump. Three tracks splitting the load — no single row eats all the punishment. Breathing room between service intervals. Problems telegraph early, you've got time. That's where real slewing bearing maintenance costs stay low.
Conclusion
Short version: Three Row Roller Slewing Bearings keep maintenance costs down by splitting load across three tracks, sealing out contamination, mounting fast, and wearing slow enough that you see it coming. Lower stress, longer lube intervals, fewer failures. If bearing downtime's chewing your margins, three rows' worth is a real conversation.
|
|
FAQ
1. How do Three Row Roller Slewing Bearings compare to single row designs for long-term maintenance?
Single row bearings make one set of elements handle axial, radial, and moment loads all at once — stress concentrates, wear accelerates, you're inspecting more often. Three rows give each load type its own track. Wear stays even. You go longer between service calls without rolling the dice on reliability.
2. What lubrication schedule should I follow for a three-row roller bearing?
Standard: every 100 hours or monthly. Tighten that up if you're in dust, moisture, or continuous heavy load. Critical: rotate while greasing so lube reaches all three rows. Stationary greasing misses the radial row. Use grease rated for your temp range and load — don't grab whatever's on the shelf.
3. Can Three Row Roller Slewing Bearings be retrofitted into older machines?
Most of the time, yeah — especially if the mounting pattern can be matched. Bolt-on design makes retrofitting way simpler than press-fit. We reverse-engineer custom configurations for legacy equipment regularly. Lead times: 4–10 weeks.
Cut Maintenance Costs with Three Row Roller Slewing Bearings
Nobody's handing out bigger maintenance budgets — so make the bearing do more of the work. LYHGB has spent 20+ years on exactly that: slewing bearings that stay in service longer, cost less to run, and don't surprise you. ISO 9001, CE, RoHS compliant. Products from 20 mm to 10,000 mm across four precision grades. Our engineers provide personalized design and flexible custom production — no one-size-fits-all. Standards ship in weeks. We've delivered across Europe, the Americas, and Asia. Ready to get your maintenance costs under control? Reach us at mia@hgb-bearing.com. Let's find the right bearing for your application.
