Container terminals operate around the clock, and every lift relies on one invisible component: the slewing bearing. To choose the finest port crane slewing bearing solutions for container handling cranes, you need to balance load capacity, durability, and supplier dependability. So for this problem, we create high-duty bearings at Heng Guan Bearing. Continue reading to discover how to size, source, check, and maintain the correct bearing for your fleet.

What Load Capacity Should a Port Crane Slewing Bearing Provide for Container Handling?

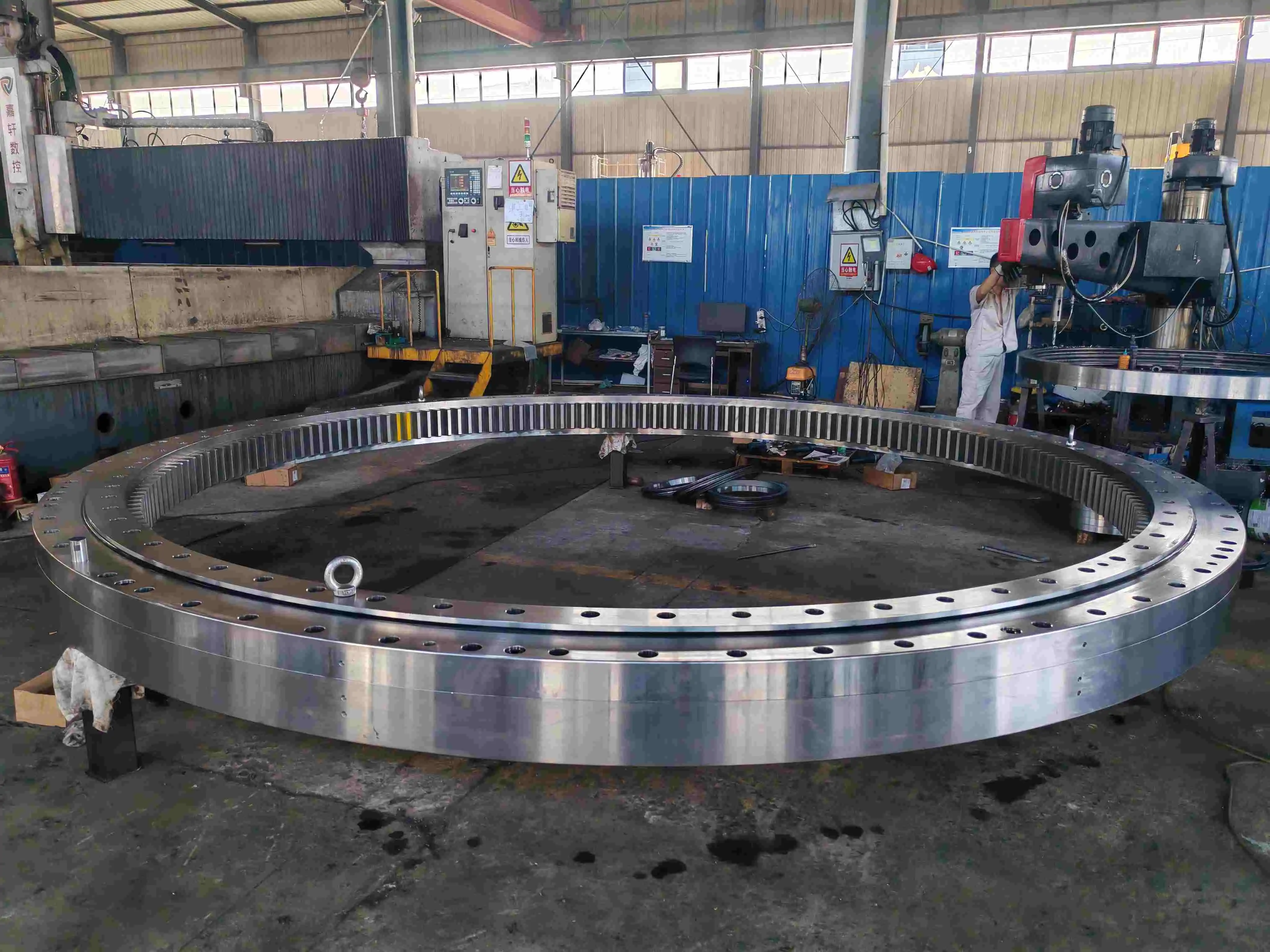

The turntable of a container handling crane is exposed to strong and continuously varying stresses, and hence a port crane slewing bearing has to be able to cope with axial, radial, and tilting moment loads at the same time. This is why the three-row roller construction is often used, since it distributes the load across numerous raceways and ensures smooth running under full load.

Heng Guan heavy-duty bearings are available in sizes from 4,238 mm by 270 mm. Special equipment bespoke dimensions are available. As a reliable China crane slewing bearing supplier, we assist engineers in choosing the bearing based on crane type, lifting capability, and duty cycle. Here’s a look at the key bearings and what each can provide for a container terminal.

How to Evaluate a China Crane Slewing Bearing Manufacturer for OEM Projects?

If you want to find an honest China crane slewing bearings manufacturer, you need to check beyond the pricing list. Verify if the factory produces its own goods, has CNC machining and heat treatment capabilities, and is ISO 9001 certified. Experience also counts, as a supplier already working with port, mining, and wind power projects knows genuine working circumstances, including salt spray, strong shock loads, and 24/7 duty. Flexible customisation is also crucial for OEM projects, from non-standard dimensions to specific gear details, marine-grade corrosion treatment, and multi-layer sealing for harbor conditions.

Heng Guan Bearing provides One-to-one Customization, rapid technical response, and delivery to over 50 countries. If you would like to discuss drawings or request a quotation for a port crane slewing bearing, simply send us an email at mia@hgb-bearing.com, and our engineers will gladly assist you.

Key Quality Standards, Material Selection, and Testing Requirements for Port Cranes

It begins with the materials. The rings of port crane slewing bearing are made of 42CrMo or 50Mn alloy steel; the rolling elements are made of GCr15SiMn high-purity bearing steel, and the seals are made of imported nitrile or fluororubber. Accuracy grades from P0 to P4 provide customers with the choice of the accuracy their crane wants, and a working temperature range from -40°C to +120°C covers everything from northern winter ports to tropical container yards.

Marine-grade corrosion treatment and multi-layer sealing are very helpful, since ports are exposed to salt spray, humidity, and sand. They continue to be usable in the worst port conditions. Before leaving the workshop, every serious china crane slewing bearing manufacturer must carry out raceway hardness testing, dimensional inspection, and rotation testing so that you may install with confidence. The main things to examine by buyers are shown below in the chart.

How Can Proper Lubrication and Maintenance Extend Slewing Bearing Service Life?

Good lubrication and regular maintenance are the cheapest preventive measures a port operator can take and the best way to protect the investment. Before installation, fill the raceways with the required grease or oil. Check lubricant supply quarterly and add additional lubricant as required. Monthly visual inspections will help you spot anomalous noise, vibration, or seal damage early on.

A complete examination once a year keeps the entire system in tip-top form and will offer your maintenance team a paper trail. To ensure the smooth operation of a port crane slewing bearing throughout many years of operation, even while working round the clock at a terminal, make sure that the seals are kept clean, the operating temperature checked, and the bolts tightened to the correct tension.

Heng Guan Bearing China crane slewing bearing with these characteristics may provide you with constant performance and prolonged uptime, so your cranes remain in operation when the ships come.

Conclusion

Choosing the right port crane slewing bearing depends on sound load calculation, a capable supplier, strict material and testing standards, and regular lubrication. Heng Guan Bearing combines custom design, quality control, and responsive service to support container terminals worldwide, helping your cranes work safely and efficiently for years.

FAQ

Q1: Which bearing structure suits container gantry cranes?

A: The three-row roller slewing bearing, thanks to its even load distribution.

Q2: Can the size be customized?

A: Yes. Special dimensions and gear details are available for OEM needs.

Q3: What materials are used?

A: 42CrMo or 50Mn rings, GCr15SiMn rolling elements, and nitrile or fluororubber seals.

Q4: What precision grades are offered?

A: P0, P6, P5, and P4.

Q5: How often should lubrication be checked?

A: Every quarter, with a full assessment once a year.

Ready to Upgrade Your Container Cranes? Contact Us Today

Contact Heng Guan Bearing today. Share your drawings, dimensions, or application details, and our engineers will recommend a tailored solution with a fast quotation. Email us at mia@hgb-bearing.com and let us build a dependable port crane slewing bearing for your next project.

References

1. International Organization for Standardization. (2007). ISO 281:2007 Rolling Bearings: Dynamic Load Ratings and Rating Life.

2. International Organization for Standardization. (2006). ISO 76:2006 Rolling Bearings: Static Load Ratings.

3. International Organization for Standardization. (2016). ISO 4301-1 Cranes: Classification, Part 1: General.

4. Harris, T. A., & Kotzalas, M. N. (2006). Essential Concepts of Bearing Technology (5th ed.). CRC Press.

5. Hamrock, B. J., Schmid, S. R., & Jacobson, B. O. (2004). Fundamentals of Machine Elements (2nd ed.). McGraw-Hill.

6. European Materials Handling Federation. (1998). FEM 1.001: Rules for the Design of Hoisting Appliances (3rd ed.).
