Komatsu Excavator Slewing Bearing – Precision Engineered for Heavy-Duty Performance

The Slewing Bearing is what keeps your Komatsu excavator rotating smoothly under stress. Drop-in replacement slewing bearings designed especially for Komatsu excavator weighing between 6 and 90 tons are produced by Luoyang Heng Guan Bearing Technology. Our Komatsu Excavator slewing bearing solutions provide the load capacity, rotational precision, and durability your application requires, whether you are operating a mining-class PC700 in quarry operations or a compact PC60 on urban sites. Because every bearing is made to meet OEM mounting dimensions, direct compatibility is achieved without any modifications.

Understanding Slewing Bearing Design for Komatsu Excavators

The crucial rotational link between the excavator's top frame and undercarriage is a slewing bearing.Axial forces from the boom and bucket assembly, radial loads during digging cycles, and tilting moments when the arm reaches its maximum reach are the three types of loads it must manage simultaneously.

Commonly Used Structural Forms:

A small, flexible,single-row four-point contact ball slewing bearing Slewing Bearing that can simultaneously withstand axial force, radial force, and tilting moment is used. It makes little noise and runs nicely.

Strong load-bearing capacity, high stiffness, superior impact resistance, and anti-overturning performance are all provided by a single-row crossed-roller or three-row cylindrical roller slewing bearing. Extreme operating circumstances like heavy loads, high-frequency rotation, and mine crushing are appropriate for it.

Technical Specifications

Komatsu Model Product Parameters

Material Selection and Heat Treatment Process

The inner and outer rings are forged from 50Mn or 42CrMo alloy structural steel. Integral forging produces a dense grain structure. This ensures high tensile strength and impact resistance across the bearing's full cross-section.

Raceways undergo medium-frequency induction hardening. After hardening, we precision-grind each raceway to achieve surface hardness between HRC 52 and 58. This hardness range provides excellent wear resistance and prevents spalling under cyclical loading. Even when subjected to shock loads during rock breaking or heavy lifting, the raceways maintain dimensional stability and resist crack initiation.

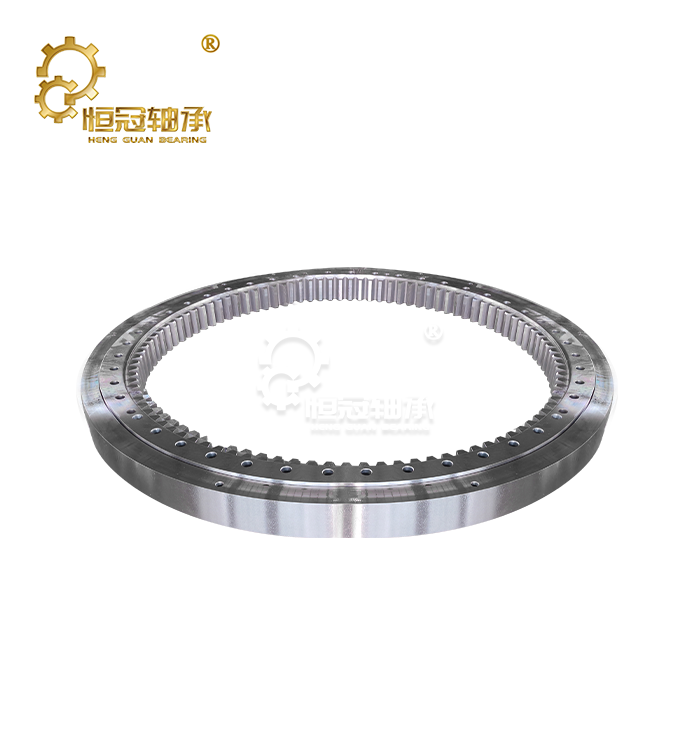

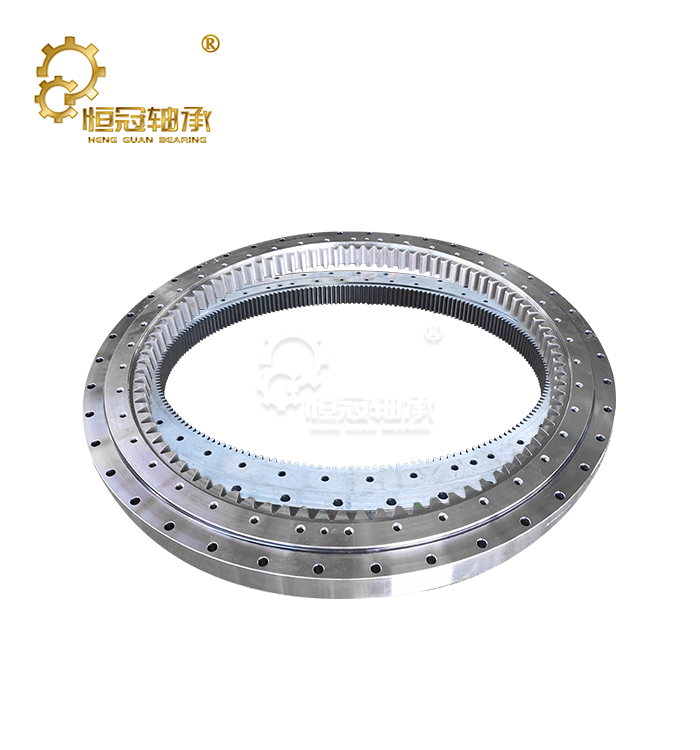

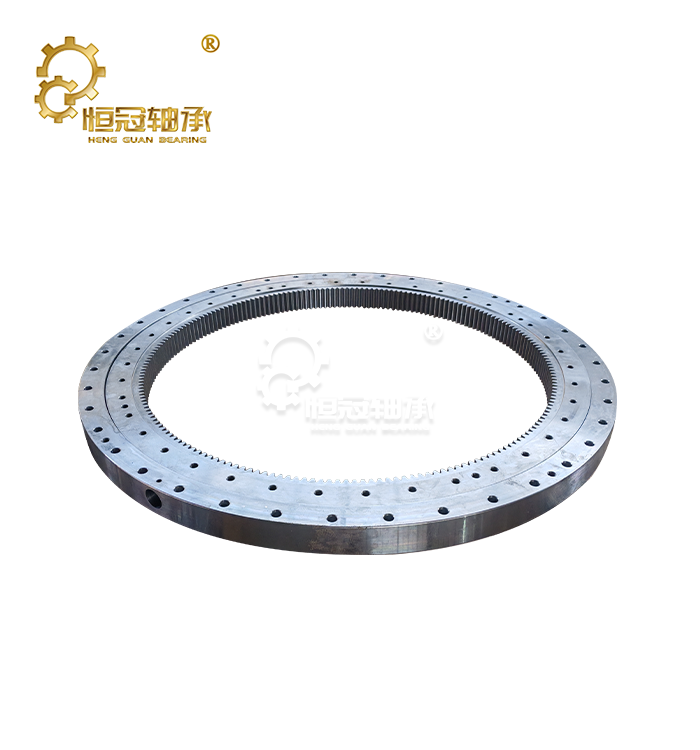

Most of our Komatsu Excavator slewing bearing units feature internal gearing as standard. We also offer external gear configurations when your drive system requires it.

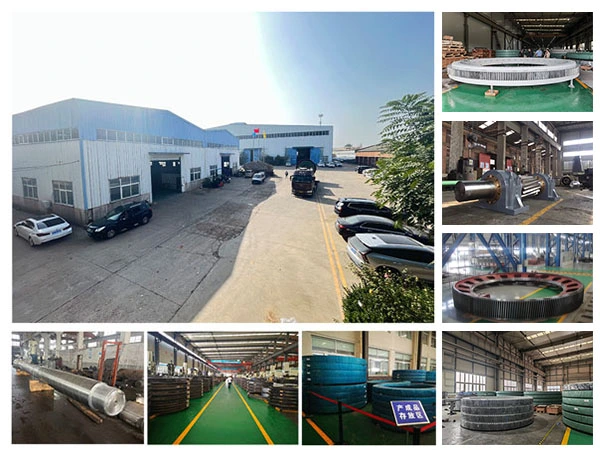

Manufacturing Capabilities and Quality Control

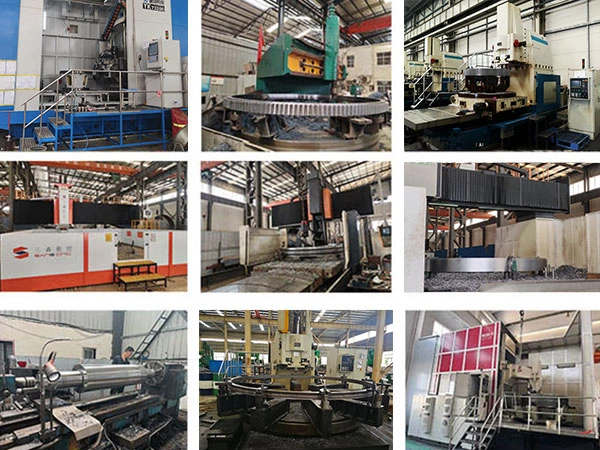

We produce slewing bearings with diameters ranging from 50 mm to 10,000 mm. Our facility operates CNC vertical lathes, CNC quenching machines, CNC gear shapers, machining centers, grinding machines, and large gear hobbing equipment. This allows us to control every production stage in-house.

Depending on the needs of your application, we maintain precision grades ranging from P0 to P4. All of our goods adhere to RoHS regulations, and our quality system is ISO9001 certified. Before shipment, we employ life testing equipment, vibration testers, and coordinate measuring devices to confirm rotational torque, raceway hardness, and dimensional accuracy.

Frequently Asked Questions

Q: Are your bearings direct replacements for original Komatsu slewing bearings?

A: Yes. Our bearings are compatible with OEM bolt patterns and installation specifications. They can be installed with your current hardware without any changes.

Q: What is the expected service life under normal operating conditions?

A: The operational environment, maintenance intervals, and load cycles all affect service life. Our bearings normally reach 8,000 to 12,000 operating hours in ordinary excavation duty with adequate lubrication and routine inspection.

Q: What is the typical lead time for standard models?

A: Standard catalog items ship within 7 to 14 days if in stock. Custom or non-standard bearings require 4 to 6 weeks depending on design complexity and production schedule.

Contact Us

Our engineering staff is here to assist you if you require technical advice choosing the appropriate Komatsu Excavator slewing bearing for your machinery or if you have inquiries regarding custom fabrication.
