RKS.512080101001 Slewing Bearings

RKS.512080101001 Customized Crossed Cylindrical Roller Slewing Bearing with Internal Gear – High Load Capacity Solution for Large Rotary Applications

Luoyang Heng Guan Bearing Technology Co., Ltd. specializes in manufacturing the RKS.512080101001 Slewing Bearings, a customized crossed cylindrical roller bearing with internal gear designed for the most demanding rotary applications. With over 30 years of industry expertise and a dedicated team of 50+ R&D and precision manufacturing specialists, we deliver this 2.2-meter-class bearing featuring a 2202 mm mean raceway diameter, 2091 mm bore (82.32 in), 2290 mm outside diameter (90.16 in), and 70 mm total height. This bearing provides exceptional load capacity with 838 kN dynamic and 5680 kN static axial ratings, module 5 internal gearing (420 teeth), and weighs 290 kg (639 lb). ISO9001 certified and RoHS compliant, our factory produces slewing bearings from 50-10000mm diameter with precision grades P0, P6, P5, and P4.

Technical Specifications

Our RKS 512080101001 offers precise engineering data verified against SKF catalogue standards. You can rely on these specifications for your design calculations and interchangeability assessments.

Design Advantages and Engineering Benefits

The RKS.512080101001 internal gear design positions the drive pinion inside the bearing ring, creating a compact mechanism that protects tooth surfaces from environmental debris. This configuration is particularly valuable when you need to maintain a clean machine envelope.

Your equipment benefits from 90-degree crossed cylindrical rollers that deliver superior rigidity under combined loads. The bearing handles axial forces, radial loads, and tilting moments simultaneously—essential for precision rotary applications.

With module 5 gearing and 420 teeth, you receive ultra-smooth engagement and Optimal working clearance. The high tooth count distributes drive forces evenly across the gear mesh, extending service life in demanding duty cycles.

Our threaded mounting system provides installation flexibility. Thirty-six M14 bolts on dual circles (2262/2142 mm) allow you to achieve proper preload without specialized hydraulic tools.

The static load capacity of 5680 kN represents the highest rating in this bearing family. You can specify this customized crossed cylindrical roller bearing for applications where shock loads and tilting moments are primary design concerns.

Where You Can Apply This Large Diameter Internal Gear Slewing Bearing

Radial Rotary Tables

When you're designing radial rotary table slewing bearings, the 512080101001 provides the 2.2-meter capacity your large workpieces demand. The internal gear couples directly to your table-top drive motor, keeping your mechanism compact while the crossed roller rigidity carries heavy machining loads without deflection.

Milling Machine Worktables

Your milling machine slewing bearing internal gear application requires smooth indexing under continuous cutting forces. The hardened module 5 teeth (420-tooth count) deliver precise positioning, while the 2290x2091x70mm envelope accommodates the large components you need to machine.

Wind Turbine Yaw Systems

As a wind turbine internal gear slewing bearing, this reference suits nacelle yaw drives where you need reliable rotation into prevailing wind. The 5680 kN static capacity resists storm loads and extreme weather events that would overload smaller bearings.

Ship Cranes and Port Excavator

Your ship crane internal gear slewing bearing demands both high tilting moment resistance and corrosion protection. This bearing family has documented service in marine duty, where the internal gear design protects the mesh from salt spray and deck debris.

Mining and Tunnel Boring Equipment

For mining equipment rotary table bearing and tunnel boring machine slewing bearing applications, you face abrasive environments and massive rotation loads. The protected internal gear and 2.2-meter-class capacity deliver the durability your heavy equipment requires.

Replacement Market

Listed in LKPB replacement tables and cross-referenced by QIBR, the RKS.512080101001 replacement serves aftermarket needs. We supply the identical SKF-compatible bearing—including the 36 × M14 threaded bolt pattern—at factory-direct pricing.

Manufacturing Excellence and Quality Control

You receive bearings manufactured on CNC vertical lathes, CNC quenching machines, and precision gear shapers. Our heat treatment process hardens raceways to 55-62 HRC while maintaining core toughness to absorb shock loads.

Every RKS.512080101001 slewing ring bearing undergoes coordinate measuring machine inspection, vibration testing, and dimensional verification before shipment. We provide full traceability from raw material 42CrMo/50Mn ingots through final assembly.

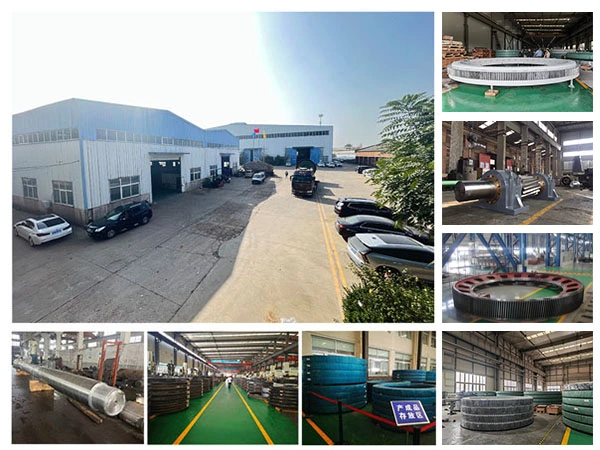

Our factory in Luoyang—China's bearing industry hub—combines advanced equipment with skilled craftsmen. This integration allows us to deliver both standard SKF-compatible models and personalized non-standard customization for your unique applications.

Custom Engineering Services

When standard catalog dimensions don't match your design envelope, our engineering team provides customized solutions. We offer old product mapping (reverse engineering from your worn bearing), technical consultation, and manufacturing from your 2D drawings.

You can specify modifications including special seal configurations, alternative gear modules, custom bolt patterns, or material upgrades for corrosive environments. Our 24-hour engineering response ensures your project stays on schedule.

We support OEM/ODM partnerships for large internal gear slewing bearing manufacturer requirements. Whether you need prototype quantities or production volumes, our flexible manufacturing accommodates your timeline.

Inventory and Delivery

Stock models ship within 2-3 days from our warehouse. Non-stock standard configurations require 25-30 days production lead time. Custom-engineered designs ship in 45-60 days, depending on complexity.

We maintain minimum order quantity of just 1 piece, making prototyping and emergency replacements economical. Our logistics partners arrange sea freight in reinforced export crates via Tianjin, Shanghai, Qingdao, Guangzhou, or Shenzhen ports.

For urgent needs, we can expedite production and arrange air freight to your facility. Contact Us for current availability, CAD drawing downloads, technical datasheets, and FOB pricing.

Packaging and Global Logistics

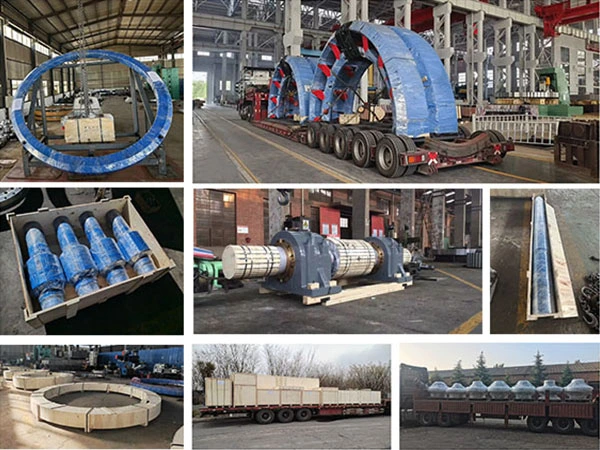

Your RKS.512080101001 Slewing Bearings turntable bearing ships in reinforced wooden crates with anti-corrosion VCI paper wrapping. We provide export documentation including commercial invoice, packing list, and certificate of origin for customs clearance.

Our products reach customers in over 50 countries—from South Africa and the United States to Germany, the United Kingdom, Italy, Turkey, Russia, Austria, Norway, Australia, Mexico, Malaysia, and throughout the Middle East. We work with established freight forwarders to ensure your bearing arrives safely and on schedule.

FAQ

Q: What is RKS.512080101001?

A: RKS.512080101001 is a customized crossed cylindrical roller slewing bearing with internal gear from the SKF RKS series—the largest internal gear model in the customized range. It has a 2202 mm mean raceway diameter, 2091 mm bore, 2290 mm outside diameter, and 70 mm height, weighing 290 kg.

Q: What are the dimensions of RKS.512080101001?

A: Bore 2091 mm (82.32 in), outside diameter 2290 mm (90.16 in), height 70 mm (2.76 in), weight 290 kg (639 lb). Internal gear pitch circle 2100 mm, module 5, 420 teeth. Bolt circles: 2262 mm outer (36 × M14 threaded) and 2142 mm inner (36 × M14 threaded).

Q: What is the load capacity of RKS.512080101001?

A: Dynamic axial load C = 838 kN, static axial load C0 = 5680 kN (confirmed by SKF catalogue and BSPD verification). Permissible gear tooth forces: 31 kN normal operating, 61 kN maximum. Tilting moment reference approximately 67.8 kN·m.

Q: What are the advantages of the internal gear design?

A: The internal gear places your drive pinion inside the bearing ring, keeping your mechanism compact, protecting tooth surfaces from debris, and allowing a cleaner machine envelope—ideal for rotary tables and precision worktables where contamination control matters.

Q: Is RKS.512080101001 in stock?

A: Stock status varies by season. Standard models typically ship in 2-3 days; non-stock standard configurations in 25-30 days; custom designs in 45-60 days. MOQ is 1 piece. Contact us at mia@hgb-bearing.com for current availability, interchange verification, and factory-direct quotation.

Contact Us

Ready to specify the RKS.512080101001 Slewing Bearings for your next project? Our technical team stands ready to provide selection guidance, CAD drawing downloads, interchange verification, and competitive factory pricing.

Reach us at mia@hgb-bearing.com with your application details, operating conditions, and delivery requirements. We'll respond within 24 hours with technical confirmation and a comprehensive quotation.
