133.40.1600 Slewing Bearing – Heavy-Duty Three-Row Roller Design for Tower Crane Applications

The 133.40.1600 Slewing Bearing is a three-row cylindrical roller slewing bearing with internal gear, engineered for extreme load capacity in tower cranes, port cranes, and marine cranes. Featuring ID 1405mm × OD 1795mm × H 220mm dimensions, this internal gear slewing bearing for tower crane integrates a module 14 internal gear with 96 teeth. Manufactured from 42CrMo forged rings and GCr15SiMn rollers, the bearing offers P0, P5, and P4 precision grades. The internal gear configuration reduces mounting envelope while maintaining full axial, radial, and moment load capacity—solving the critical challenge of compact drive integration in heavy-duty rotating excavator.

Technical Specifications

Design Features and Engineering Advantages

Three-Row Cylindrical Roller Configuration

The 133.40.1600 internal gear slewing ring manufacturer Hengguan employs three independent rows of cylindrical rollers to distribute axial and radial loads uniformly. This architecture eliminates point contact stress concentration seen in ball bearings, providing line contact for superior rigidity and fatigue resistance. The design directly addresses raceway cracking under shock loads—a common failure mode in tower crane slewing mechanisms during sudden stops or load shifts.

Internal Gear Integration (Module 14, 96 Teeth)

Positioning the drive pinion inside the bearing circumference reduces overall assembly diameter compared to external gear designs. The 1405×1795×220mm internal gear slewing bearing offers a more compact footprint for installations with space constraints while maintaining full torque transmission capacity. The module 14 gear undergoes medium-frequency induction hardening to HRC 50-55, balancing wear resistance with impact toughness to prevent tooth breakage during high-torque starts.

42CrMo Forged Rings for Ultimate Strength

High-strength 42CrMo alloy steel rings provide exceptional tensile strength and resistance to plastic deformation under tilting moments. This addresses buyer concerns about ring cracking in overload conditions. The forging process refines grain structure, eliminating internal voids that could propagate fatigue cracks during continuous rotation cycles.

Precision Grades: P0 / P5 / P4

Hengguan offers selectable precision grades to match application requirements. P0 grade suits general tower crane applications, while P5 and P4 grades deliver tighter radial and axial runout tolerances for operations demanding minimal vibration and positioning errors—critical for high-rise construction projects where boom sway must be minimized.

Solving Critical Industry Pain Points

Heavy Load Capacity Without Raceway Failure

The three row roller bearing internal gear module 14 design withstands axial forces exceeding 1200 kN and tilting moments over 800 kN·m (specific values depend on load distribution). Finite element analysis optimizes raceway curvature to prevent stress concentration. Induction-hardened raceways resist brinelling and spalling, extending service life beyond 20,000 operating hours in continuous-duty applications.

Superior Sealing Against Contamination

Triple-lip sealing systems (NBR elastomer with labyrinth features) exclude abrasive dust, mud, and water ingress—common causes of premature wear in port and marine environments. This design reduces maintenance frequency and prevents the catastrophic failure scenario where contaminants grind raceways, forcing costly emergency replacements.

Corrosion Resistance for Marine and Port Environments

Buyers operating in saltwater-exposed facilities face severe corrosion risks. Hengguan applies zinc-nickel anti-corrosion coatings and special grease formulations to protect against salt spray. The heavy duty slewing ring with internal gear for crane construction eliminates rust-induced binding and maintains smooth rotation even after years of coastal exposure.

OEM Replacement Compatibility

The 133.40.1600 shares envelope dimensions with 130.40.1600 (non-geared) and 131.40.1600 (external gear) models, ensuring drop-in compatibility for retrofit projects. This solves the pain point of dimensional mismatch during equipment upgrades or obsolete part replacement. Hengguan provides 1:1 dimensional verification against original drawings to guarantee fit.

On-Site Measurement and Reverse Engineering Service

When original technical documentation is unavailable—a frequent scenario for aging tower cranes—Hengguan dispatches engineers to job sites with precision measurement instruments. Our team captures critical parameters including outer diameter, gear module, and bolt hole positions. This data feeds into reverse engineering workflows that reconstruct CAD models, incorporating wear compensation and structural optimization.

For example, if field measurements reveal excessive raceway wear patterns, engineers redesign contact geometry to redistribute loads and extend replacement bearing lifespan. This service eliminates downtime waiting for overseas suppliers and reduces procurement costs versus original equipment manufacturer parts. Custom manufacturing follows, including forging, CNC machining, gear hobbing, and final inspection—all completed within the 4-6 week lead time for custom configurations.

Manufacturing Process and Quality Control

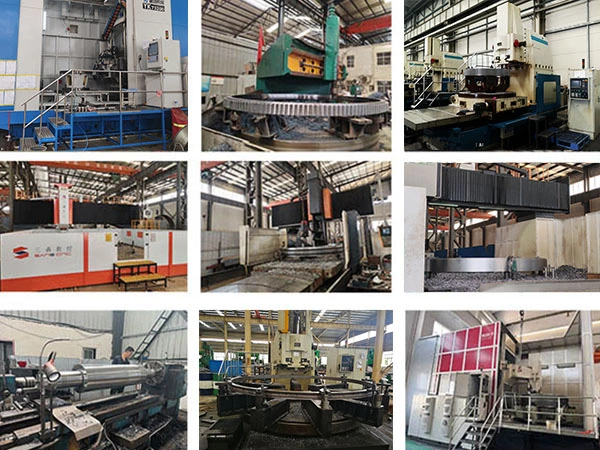

Hengguan's production leverages CNC vertical lathes for precision turning, CNC quenching machines for controlled heat treatment, and large gear hobbing equipment for module 14 internal teeth. Coordinate measuring machines verify dimensional tolerances to P4 grade requirements. Every bearing undergoes vibration testing and life cycle simulation under simulated crane loads before shipment.

ISO 9001 certification governs the entire workflow, from raw material traceability to final packaging. RoHS compliance ensures environmental responsibility. The 133.40.1600 slewing bearing quality consistency stems from rigorous process controls—batch-to-batch variation in hardness and geometry stays within ±2% tolerances.

Delivery and Custom Solutions

The in-stock product ships within 7-15 days from stock. Custom setups take 4-6 weeks, depending on intricacy. Hengguan maintains inventory of standard precision grades and can expedite critical orders through priority production scheduling. Non-standard modifications—such as alternate bolt patterns, special coatings, or modified gear modules—are fully supported through our engineering team.

Certification

FAQ

Q: Can this bearing handle sudden shock loads from emergency stops?

A: Yes. The three-row roller design distributes impact forces across line contact surfaces, while 42CrMo ring material resists plastic deformation. Raceway hardness of 55-62 HRC prevents brinelling during shock events.

Q: How do I verify compatibility with existing tower crane models?

A: Provide your equipment model number or current bearing dimensions. Hengguan engineers cross-reference envelope dimensions and mounting hole patterns to confirm drop-in fit or identify necessary modifications.

Q: What lubrication intervals are recommended for marine environments?

A: Re-grease every 200 operating hours in saltwater-exposed installations. Use lithium-based EP2 grease compatible with NBR seals. Hengguan provides detailed maintenance guidelines with each shipment.
