Pipeline Equipment Slewing Bearing
2. Product Structure: Multi-layer sealing system: A double-lip seal with a labyrinth structure effectively blocks mud, sand, and moisture.
3. Dimensions: Product dimensions: 1452 × 1110 × 110 mm
Processable diameter range: 50 mm - 10,000 mm
Customization is available to meet specific size requirements.
4. Materials: Ring material: High-strength alloy steels such as 50Mn and 42CrMo
Rolling elements: Balls or rollers made of GCr15SiMn bearing steel
Seal material: Oil-resistant and wear-resistant nitrile rubber
5. Applications:
Construction machinery: Pipe jacking machine slewing systems, horizontal directional drilling rig power heads, cross-country cranes, other heavy-duty pipeline construction equipment, and fully automatic pipeline welding vehicles.
- Product Description
Pipeline Equipment Slewing Bearing – Heavy-Duty Rotational Solution for Pipeline Construction
Luoyang Heng Guan Bearing Technology offers a premium pipeline equipment Slewing Bearing designed for demanding construction environments. Our featured model (1452 × 1110 × 110 mm) boasts a load capacity enhanced by 40% through a fortified raceway design. Engineered from 42CrMo and 50Mn alloy steel with GCr15SiMn rolling elements, this pipeline equipment slewing bearing features a multi-layer double-lip sealing system and achieves 1,000-hour salt spray resistance. With over 20 years of industry experience, our ISO 9001-certified facility produces bearings ranging from 50 mm to 10,000 mm in diameter (Precision Grades P0 to P4), serving 50+ countries worldwide.
Pipeline Equipment Slewing Bearing Details
Your pipeline machinery demands reliable rotation under extreme loads. Each pipeline equipment slewing bearing integrates axial, radial, and tilting moment capacities into a single compact unit. The induction-hardened surfaces (55-62 HRC) ensure exceptional wear resistance during continuous operation. This 1452 mm configuration is ideal for pipe jacking machines, horizontal directional drilling (HDD) rigs, and automated welding rotators. The double-lip seal with a labyrinth structure prevents mud and moisture ingress—critical for harsh construction sites. Additionally, heat-treated Gear teeth extend service life by more than three times compared to standard designs.
Why Choose Us
You benefit from two decades of specialized expertise in pipeline equipment slewing bearing technology. Our 50-member R&D team focuses exclusively on developing high-performance rotational components for heavy machinery, ensuring your equipment operates with maximum reliability.
We maintain strict quality control from raw material selection to final inspection using Coordinate Measuring Machines (CMM) and vibration testers. Our facility is equipped with advanced CNC vertical lathes and gear shapers, enabling us to achieve diameters up to 10 meters and precision grades up to P4.
Our customization capabilities include non-standard machining for large ring gears, Shafts, and couplings to support complete system integration. All pipeline equipment slewing bearing products meet ISO, DIN, and GB standards, ensuring global compatibility, RoHS compliance, and reliable project timelines.
Technical Specifications
Parameter | Specification |
Outer Diameter | 1452 mm |
Inner Diameter | 1110 mm |
Height | 110 mm |
Ring Material | 50Mn, 42CrMo alloy steel |
Rolling Elements | GCr15SiMn bearing steel (balls/rollers) |
Seal Type | Double-lip NBR with labyrinth structure |
Hardness (Raceway) | 55-62 HRC |
Precision Grades Available | P0, P6, P5, P4 |
Diameter Range | 50-10,000 mm (customizable) |
Operating Temperature | -40°C to +70°C |
Corrosion Resistance | 1000-hour salt spray test certified |
Load Capacity Increase | +40% vs. standard designs |
Features and Benefits
Higher Load Capacity: Optimized raceway design distributes stress more effectively, providing 40% higher load ratings. This gives you an extra safety margin for heavy-duty pipe laying operations.
Superior Sealing: We use a multi-layer setup with double-lip seals and labyrinth channels. It’s built to block mud and grit in dirty trench conditions, which means less maintenance and longer service intervals.
Corrosion Resistance: Our specialized coating passes a 1,000-hour salt spray test. This ensures the bearing won't fail prematurely in coastal or offshore pipeline projects.
Hardened Gear Teeth: The teeth are induction-hardened to resist wear 3x longer than standard treatments. This reduces your long-term replacement costs and keeps the machine running longer.
Wide Temperature Range: Reliable performance from -40°C in arctic cold to +70°C in desert heat. Your equipment stays precise no matter the job site location.
Applications
Pipe Jacking Machines: Maintains alignment precision under high thrust forces during tunneling through tough soil.
HDD Rigs (Horizontal Directional Drilling): Reinforced structure to absorb shock loads and vibrations while keeping rotation smooth.
Automated Welding Rotators: P5/P4 precision grades provide the repeatability needed for high-quality seams on large-diameter pipes.
Pipe-Laying Vessels: Built to handle the combined challenge of heavy loads and salt-water exposure in marine environments.
Cross-Country Pipeline Cranes: Handles high tilting moments on uneven terrain to prevent structural deflection during pipe positioning.
Installation Guide
Pre-Installation Inspection: Verify mounting surface flatness within 0.05 mm per meter. Ensure all contact areas are free of rust, paint, or debris, as any contamination can cause uneven loading and premature failure.
Bolt Tightening Sequence: Always use a cross-pattern (star pattern) to ensure even clamping force. Torque all bolts to the specifications provided in the technical drawing, and apply a thread-locking compound to prevent loosening caused by machine vibration.
Gear Mesh Alignment: For geared models, use feeler gauges to check backlash at multiple points around the circumference. Adjust the pinion position to achieve uniform clearance, which prevents concentrated edge loading on the gear teeth.
Initial Lubrication: Completely fill the grease channels before the first operation. Rotate the bearing manually for several revolutions to ensure the lubricant is evenly distributed across all internal raceways and contact surfaces.
Partners
Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.
Testing & Certification
Every pipeline equipment slewing bearing undergoes dimensional verification with coordinate measuring machines, ensuring tolerances meet specified precision grades. Vibration testing identifies imbalances before shipment, while raceway hardness checks confirm proper heat treatment.
Our ISO 9001:2015 certification covers all manufacturing stages. RoHS compliance documentation accompanies each order for regulatory requirements. Material certifications trace alloy composition to mill test reports, providing full traceability for quality audits.
Packaging & shipping

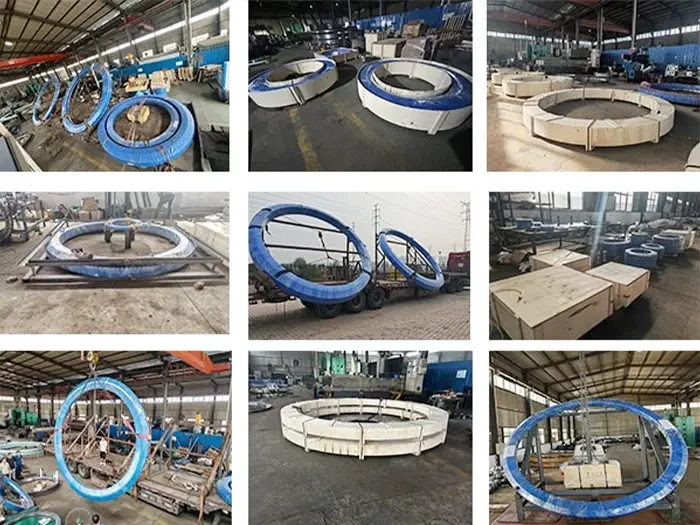

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).
Maintenance and Care
Lubrication Schedule: Relubricate every 100 operating hours for continuous-duty applications. Use lithium-based EP2 grease for standard conditions; for ambient temperatures exceeding 50°C, switch to high-temperature formulations.
Seal Inspection: Check for grease leakage or seal hardening monthly. Replace seals immediately if you suspect contamination has reached the rolling elements—early intervention is key to preventing raceway damage.
Bolt Retorquing: Re-check bolt tension after the first 50 operating hours, then quarterly. Vibration can cause fasteners to relax, leading to fretting corrosion on the mounting surfaces.
Gear Tooth Examination: Periodically monitor for pitting or spalling during routine service. Address any misalignment issues promptly, as uneven wear accelerates rapidly once it starts
FAQ
Q: What material works best for Arctic pipeline projects?
A: We recommend 42CrMo alloy steel for its superior impact toughness at -40°C. Charpy V-notch testing verifies low-temperature performance for your application.
Q: How does the sealing handle sandy construction sites?
A: Our double-lip NBR seals with labyrinth structure physically block particulate ingress. The design has proven effective in Middle Eastern desert pipeline projects.
Q: Can you accommodate non-standard dimensions?
A: Yes. Our CNC equipment produces custom diameters from 50 to 10,000 mm. Provide your 3D model or we offer reverse engineering for existing installations.
Q: What's the typical lead time for custom orders?
A: Standard modifications require 4-6 weeks. Complex geometries may extend to 8 weeks depending on heat treatment schedules and inspection requirements.
Q: Do you support on-site installation assistance?
A: Our technical team provides remote guidance for all installations. For large-scale projects, we arrange field support through regional partners in your operating area.
Contact Us
Ready to enhance your pipeline equipment slewing bearing equipment reliability? Our engineering team will recommend the optimal bearing configuration for your machinery. Reach us at mia@hgb-bearing.com for technical specifications and delivery timelines.
