Amusement Equipment Slewing Bearing

Amusement Equipment Slewing Bearing

When your amusement rides need to deliver both thrilling experiences and uncompromising safety, the right rotational support becomes critical. Our Amusement Equipment Slewing Bearing is engineered specifically for high-intensity theme park applications where reliability cannot be compromised. Designed to withstand extreme dynamic loads, rapid directional changes, and continuous operation cycles, this bearing provides the structural foundation for large pendulum rides, Ferris wheels, and rotating attractions. With three-row roller configurations and advanced heat treatment processes, you get a solution that balances smooth rotation with exceptional load capacity—essential for passenger safety and operational uptime in demanding outdoor environments.

Product Details

Our slewing bearing for amusement equipment features a robust three-row raceway design. Each raceway independently manages specific load directions—axial forces, radial forces, and overturning moments. This separation allows the bearing to handle complex, multi-directional stresses typical in rides with sudden accelerations and decelerations.

The ring material uses 50Mn or 42CrMo high-strength alloy steel. These grades provide superior toughness and fatigue resistance compared to standard carbon steels. Rolling elements are manufactured from GCr15SiMn bearing steel, hardened to HRC 60-64 for extended wear life.

Gear teeth undergo induction hardening to achieve surface hardness of HRC 58-62. This process increases wear resistance by approximately three times compared to non-hardened gears. Nitrile rubber seals protect internal components from dust, moisture, and contaminants—particularly important for outdoor installations.

Standard dimensions are 1200×877×135mm, optimized for large pendulum attractions. Our manufacturing capability covers diameters from 50mm to 10,000mm, allowing custom sizing for your specific ride geometry.

Why Choose Us?

Engineering Heritage: Located in Luoyang, China's bearing manufacturing center, we bring over 20 years of specialized experience in slewing bearing design and production.

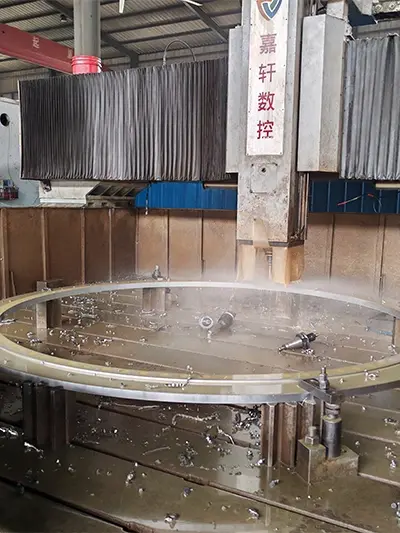

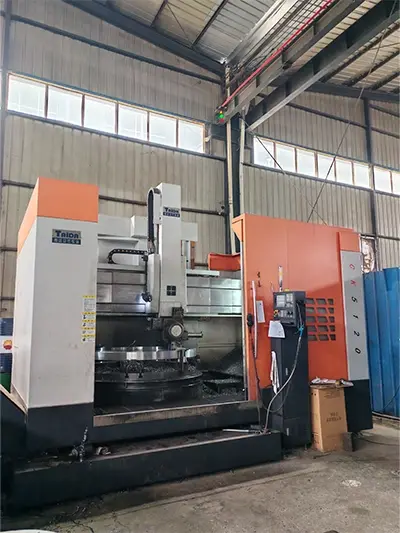

Manufacturing Capacity: Our facility operates CNC vertical lathes, CNC quenching machines, CNC gear shapers, and precision grinding equipment. This integrated production line ensures dimensional consistency and surface quality control.

Technical Support: Our 50-member engineering team provides installation guidance, custom design services, and reverse engineering for legacy components. We work from your 2D drawings or sample parts.

Quality Systems: ISO 9001 certified operations with full process traceability. Each bearing undergoes coordinate measurement, vibration testing, and material verification before shipment.

Global Reach: Products currently operate in over 50 countries including Germany, United States, Australia, and South Africa. This export experience means we understand international standards and documentation requirements.

Customization Flexibility: We handle non-standard requests including special bore configurations, unique gear tooth profiles, and application-specific material selections.

Technical Specifications

Certification

Features and Benefits

Three-Row Stack Dissemination: Autonomous raceways anticipate stack interaction. Pivotal strengths from traveler weight, outspread strengths from centrifugal movement, and tilting minutes from deviated stacking are each overseen by devoted roller columns. This expands benefit life by decreasing stretch concentrations.

Enhanced Equip Solidness: Induction-hardened teeth stand up to setting and spalling indeed beneath stun loads. For rides with visit start-stop cycles, this implies decreased support intervals and lower substitution costs.

Sealed Assurance: Dual-lip nitrile seals keep up inside oil whereas blocking natural defilement. You get steady execution over temperature varieties and climate conditions commonplace in open air parks.

Precision Fabricating: CNC machining guarantees raceway roundness inside 0.05mm resilience. This accuracy deciphers to smoother revolution, diminished vibration, and calmer operation—important variables for rider comfort.

Material Choice: Amalgam steel rings give the essential sturdiness to retain affect loads without breaking. The fabric composition balances hardness with ductility, avoiding delicate disappointment modes.

Applications

Our Amusement Equipment Slewing Bearing serves multiple ride categories:

· Pendulum Rides: Supports the pivoting motion and passenger cabin rotation

· Pirate Ships: Handles oscillating movements and peak acceleration loads

· Ferris Wheels: Provides smooth, continuous rotation under constant loading

· Rotating Towers: Manages combined vertical and rotational forces

· Carousel Platforms: Ensures stable horizontal rotation with variable passenger distribution

· Hurricane Chairs: Accommodates multi-axis motion and centrifugal forces

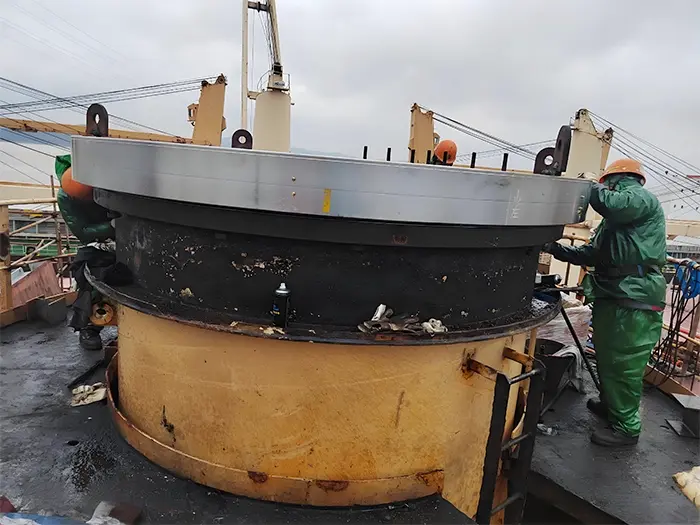

Installation Guide

Arrangement: Confirm mounting surface levelness is inside 0.1mm per meter. Clean all jolt gaps and contact surfaces to evacuate debris.

Positioning: Utilize arrangement devices to center the bearing on the mounting spine. Guarantee jolt gap arrangement some time recently embeddings fasteners.

Bolt Fixing: Apply grease to jolt strings. Fix in a star design to the indicated torque value—typically 70-80% of jolt confirmation stack. Re-torque after beginning operation period.

Gear Work Alteration: If remotely equipped, set backfire to 0.2-0.4mm. Check work contact design over full rotation.

Lubrication: Fill grease channels with suggested oil review. Pivot bearing through a few total cycles to disperse oil evenly.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

​​​​​​​

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Plan: Relubricate each 100 working hours or month to month, whichever comes to begin with. Utilize lithium-based oil with EP added substances evaluated for high-load applications.

Inspection Focuses: Check for bizarre clamor, vibration, or temperature rise. Assess seals for harm or corruption quarterly.

Bolt Confirmation: Re-check mounting jolt torque each 500 hours. Supplant any clasp appearing signs of push or corrosion.

Wear Checking: Degree equip tooth thickness every year. Supplant bearing when tooth wear surpasses 10% of unique dimension.

Operational Limits: Do not surpass appraised stack capacity. Maintain a strategic distance from drawn out operation over 80°C inside temperature.

FAQ

Q: What makes this bearing appropriate for open air beguilement applications?

A: The combination of fixed development, corrosion-resistant materials, and solidified components gives solid execution in variable climate conditions and temperature ranges.

Q: Can you customize the bearing measure for non-standard rides?

A: Yes. We make slewing heading from 50mm to 10,000mm breadth. Give your dimensional necessities and stack determinations for a custom design.

Q: What exactness review ought to I select?

A: P0 review suits most beguilement applications. Higher accuracy grades (P6, P5, P4) are prescribed for rides requiring outstandingly smooth movement or negligible vibration.

Q: How do I calculate the required bearing size?

A: Our building group can help with stack calculations based on ride geometry, traveler capacity, and operational speeds. Contact Us with your application details.

Q: What is the ordinary lead time for custom bearings?

A: Standard alterations require 4-6 weeks. Complex custom plans may require 8-10 weeks depending on detail complexity.

Contact Us

Ready to enhance your Amusement Equipment Slewing Bearing ride reliability? Reach out to our technical team mia@hgb-bearing.com for application support and quotations.
