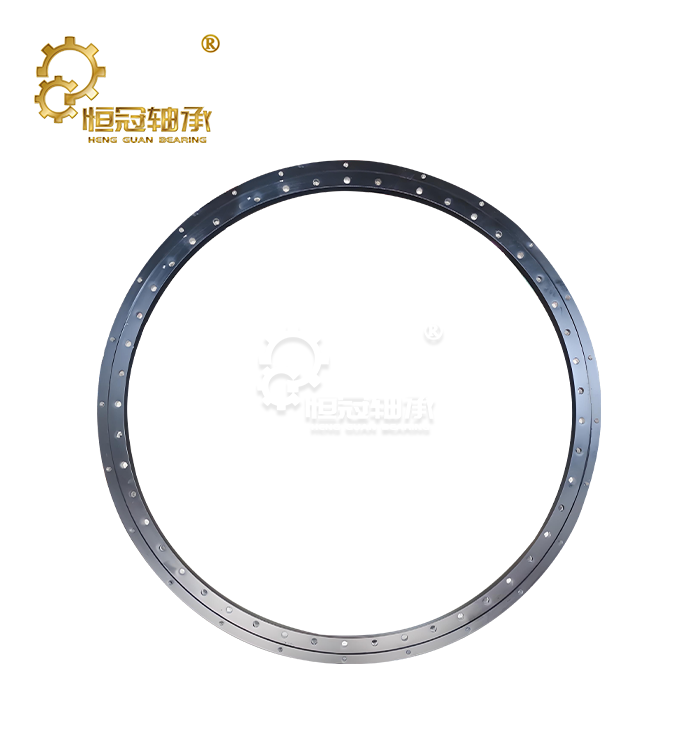

Crossed Roller Slewing Bearing - High-Precision Rotational Solutions

Product Details

When your application requests both compact plan and exceptional load capacity, the Crossed Roller Slewing Bearing conveys precisely what you require. This specialized rotational bearing features cylindrical rollers organized in a exact X-pattern on V-shaped raceways, empowering it to handle combined axial, radial, and moment loads at the same time through a single bearing position. Not at all like customary multi-row plans, our crossed roller setup accomplishes superior rigidity and rotational precision inside a essentially littler impression. The part external ring plan, secured by holding rings, rearranges establishment whereas keeping up basic keenness. Whether you're designing accuracy machine instruments, mechanical robots, or restorative imaging hardware, this bearing gives the high-performance establishment your framework requires.

Our fabricating approach combines progressed CNC machining with thorough quality control. Each bearing experiences arrange estimation and vibration testing to guarantee it meets your determinations. The result is a dependable component that decreases your gathering complexity whereas making strides in general framework performance.

Why Choose Us?

Two Decades of Bearing Expertise

Located in Luoyang, China's bearing industry center, we bring over 20 years of specialized experience in slewing bearing design and manufacturing. Our designing group gets it the specialized challenges you face.

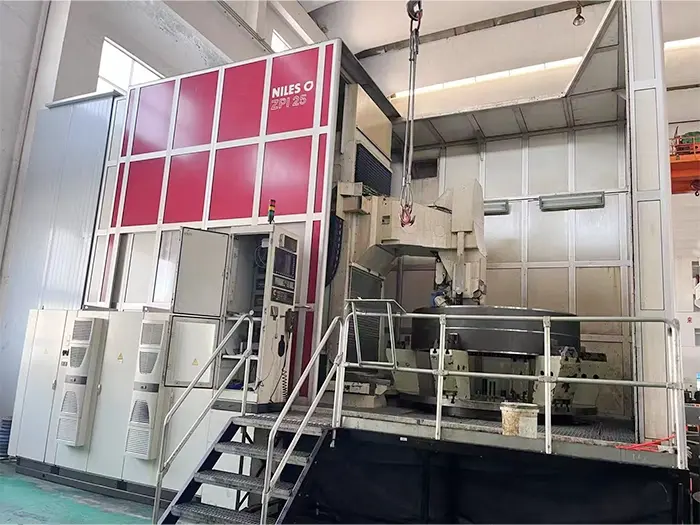

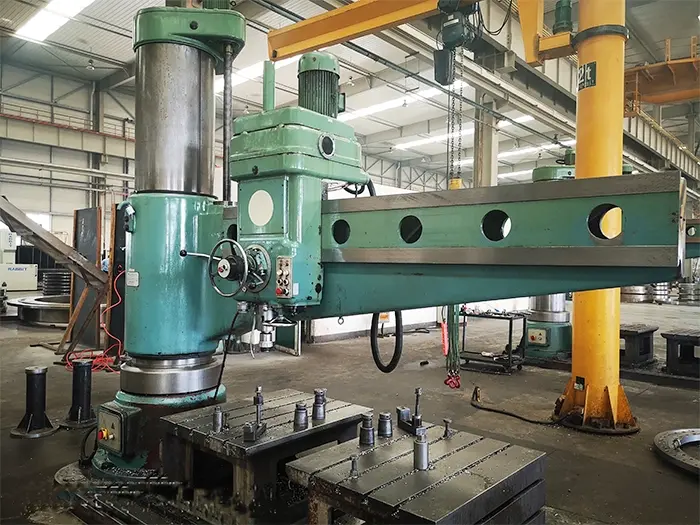

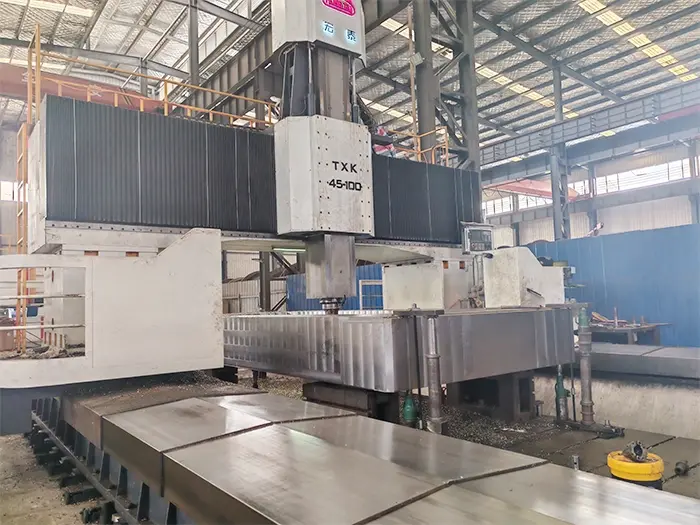

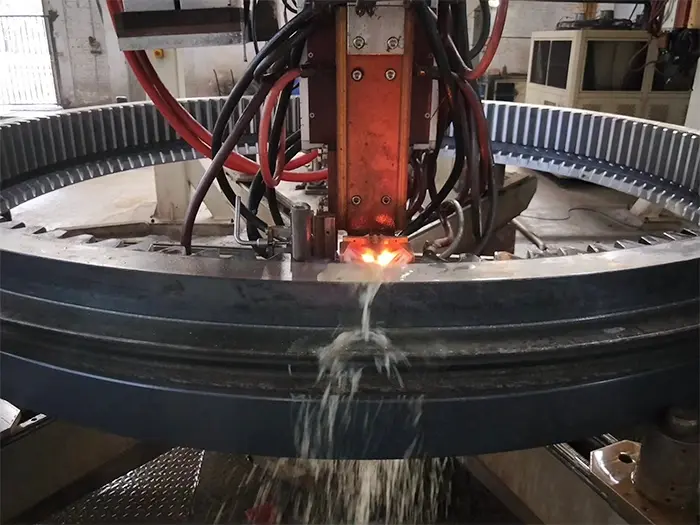

Precision Fabricating Capabilities

We produce slewing bearing ranging from 50mm to 10,000mm in diameter, with precision grades covering P0, P6, P5, and P4. Our factory incorporates CNC vertical machines, quenching machines, Gear shapers, and grinding euqipment to guarantee dimensional accuracy.

ISO 9001 Certified Quality

Every bearing follows strict quality conventions from raw material choice through last assessment. Our items comply with ISO, DIN, and GB standard, with full RoHS compliance for worldwide markets.

Custom Building Support

We provide technical consultation, product plan, and personalized non-standard customization. Our group can work from your 3D drawings or perform old item mapping to make correct replacements.

Global Benefit Network

With items sent out to over 50 nations over North America, Europe, Southeast Asia, and the Center East, we get it universal extend prerequisites and conveyance desires.

Technical Specifications

Certification

Features and Benefits

Crossed Roller Design

Crossed roller bearings deliver an exceptional combination of high precision, rigidity, and load capacity within a single, compact unit. Their unique design features cylindrical rollers arranged in an X-pattern between V-shaped raceways. This allows them to simultaneously handle combined axial, radial, and moment loads, effectively replacing multiple bearing setups. As a result, they simplify mechanical design, save space, reduce weight, and provide smooth, quiet operation with high rotational accuracy. These advantages make them the preferred solution for demanding applications such as industrial robots, precision machine tool rotary tables, medical imaging equipment, and automated manufacturing systems.Superior Rigidity

The single-row raceway structure with crossed rollers provides exceptional stiffness compared to conventional multi-row bearings. This can lead to better positioning accuracy in your equipment.

Compact Footprint

Achieve higher load capacity in less space. The efficient roller arrangement means you can downsize your bearing housing without sacrificing performance.

Low Running Noise

Precision-ground raceways and optimized roller spacing minimize vibration and acoustic emissions. This makes Crossed Roller Slewing Bearing ideal for laboratory instruments and medical devices.

High Rotational Accuracy
With radial and axial runout controlled to tight tolerances, these bearings maintain precise positioning even under varying loads. Your machine maintains accuracy over extended operating periods.

Split Outer Ring Construction
The divided outer ring simplifies installation in confined spaces. Retaining rings secure the assembly while allowing straightforward maintenance access.

Applications

Precision Machine Tools

Rotary tables, indexing heads, and milling machine swivels benefit from the high rigidity and accuracy these bearings provide.

Industrial Robotics

Joint actuators and rotary platforms require compact, high-precision bearings that handle complex load combinations. Our crossed roller designs meet these demands.

Medical Imaging Equipment

CT scanners and X-ray positioning systems depend on smooth, quiet rotation with minimal runout. The low noise and high accuracy make these bearings suitable for clinical environments.

Measuring Instruments

Coordinate measuring machines and optical inspection systems require repeatable positioning. The stiffness and precision of crossed roller bearings ensure measurement reliability.

Automation Systems

Pick-and-place machines, rotary indexers, and assembly equipment use these bearings where space constraints meet high-performance requirements.

Testing & Certification

All products undergo comprehensive inspection before shipment:

· Dimensional verification using coordinate measuring machines

· Vibration and noise testing under loaded conditions

· Material composition analysis and hardness testing

· ISO 9001:2015 quality management certification

· RoHS compliance for hazardous substance restrictions

We maintain complete traceability records for each production batch, ensuring you receive bearings that meet specified performance criteria.

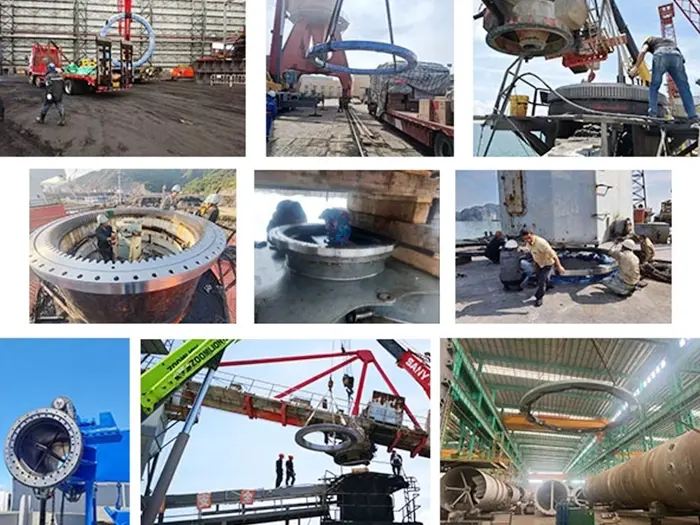

Installation Guide

Pre-Installation Checks

Verify that mounting surfaces are clean, flat, and free from burrs. Confirm dimensional tolerances of mating components match bearing specifications.

Mounting Procedure

1. Position the bearing on the mounting surface, aligning the bolt holes carefully

2. Install clamping rings or mounting bolts finger-tight

3. Check that the bearing seats evenly with no gaps

4. Tighten fasteners in a star pattern to specified the torque values

5. Verify smooth rotation before applying full loads

Lubrication

Apply prescribed grease to raceways if not pre-lubricated. Take after your equipment manufacturer's grease plan for ideal benefit life.

Alignment

Ensure associated components keep up appropriate arrangement to avoid edge loading and untimely wear.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

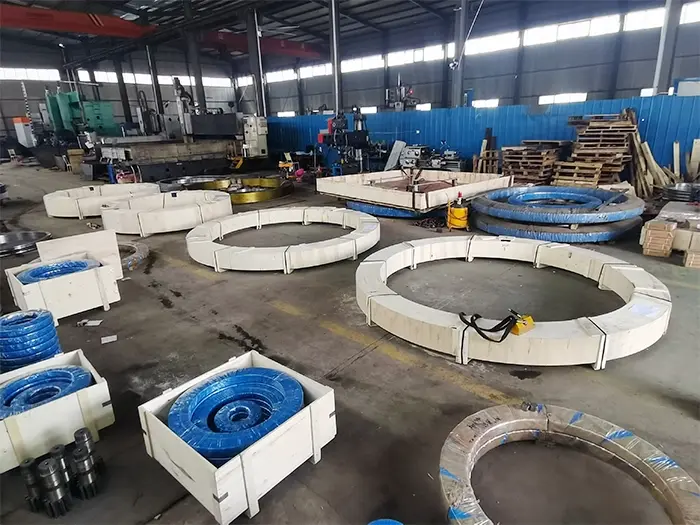

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Positive customer reviews

Our quality and service have received widespread praise from our customers.

Maintenance and Care

Regular Inspection

Check for unusual noise, vibration, or resistance during rotation. Assess seals for harm or contamination.

Lubrication Schedule

Relubricate according to your working conditions. High-temperature or contaminated situations may require more frequent service.

Cleaning

Keep outside surfaces clean to prevent contaminants from entering the bearing through seals.

Storage
Store unused bearings in a dry, temperature-controlled environment. Keep the original packaging intact until installation.

Replacement Indicators
Replace bearings if you notice increased operating noise, visible wear, or a loss of smooth rotation

Customer Reviews

Note: We ensure client confidentiality. Testimonials are available upon request for qualified projects.

FAQ

Q: What's the difference between crossed roller and conventional slewing bearings?
A: Crossed roller designs use a single raceway with X-arranged rollers, providing higher rigidity and precision in less space compared to multi-row standard bearings.

Q: Can you provide custom sizes?
A: Yes. We offer non-standard customization based on your specifications or by replicating existing parts.

Q: What accuracy grade should I choose?
A: P0 is suitable for general applications. P6 and P5 meet higher precision requirements. P4 is recommended for high-precision spindles requiring minimal runout.

Q: How do I determine the right bearing size?
A: Our engineering team can assist with load calculations and selection based on your application parameters. Please Contact Us with your requirements.

Q: What is your typical lead time?
A: Standard sizes are shipped from stock. Custom bearings typically require 4–6 weeks, depending on complexity.

Contact Us

For technical specifications, custom solutions, or ordering assistance for Crossed Roller Slewing Bearing, our engineering team is ready to help.
