What Makes a Reliable 011.30.630 Slewing Bearing Manufacturer?
Picking the proper source is just as important as picking the correct bearing type, and this article shows what makes a reliable 011.30.630 slewing bearing manufacturer different from the others. This 732mm class type external gear slewing ring bearing is made by Heng Guan Bearing of Luoyang, China, the historic “Bearing Town,” for cranes, rotary tables, and construction equipment used across the globe. The 011.30.630 has external gear teeth on its outer ring that mesh with a driving pinion to deliver torque; therefore, accurate gear hobbing and uniform heat treatment are critical. This page discusses certifications, manufacturing capabilities, customisation choices, and long-term supply dependability to assist customers confidently assess any 011.30.630 manufacturer in China.
|
|
What Certifications Should a Reliable 011.30.630 Slewing Bearing Manufacturer Have?
A reliable producer of 011.30.630 slewing bearings should have ISO 9001:2015 quality management system certification and traceability of the material for each batch of forged steel for raceway and gear teeth. Heng Guan Bearing checks each external gear slewing ring bearing 732mm unit for hardness and tolerance from raw material spectrographic testing to final dimensional verification before shipment using coordinate measuring machines (CMM).
Surface hardness of 55–62 HRC is to be validated by heat-treatment records following induction hardening of 126 involute gear teeth (module 6, tip diameter 774 mm) on the outer ring of the bearing.011.30.630 makers China should provide compliance certificates, gear tooth inspection reports and hardness test certifications instead of catalogue claims. These statistics show whether the quality control of a supplier is up to its marketing claims and whether the bearing has to withstand the cyclic loads and shock of a crane slewing mechanism.
| Certification / Document | Why It Matters |
|---|---|
| ISO 9001:2015 Quality Management | Confirms documented process control across production stages |
| Material Traceability Reports (EN 10204 3.1) | Verifies steel grade (50Mn / 42CrMo) and forging quality |
| Gear Tooth Inspection Report | Confirms tooth profile accuracy and pitch deviation per DIN 3960 |
| Induction Hardness Test Certificate | Verifies raceway and gear tooth hardness at 55–62 HRC |
How to Evaluate the Manufacturing Capability of an 011.30.630 Slewing Bearing Supplier?
Manufacturing capabilities are evaluated beginning with available machining equipment; as a 011.30.630 manufacturer China needs precision gear hobbing, raceway grinding, and induction hardening to provide smooth rotation under combined loads.

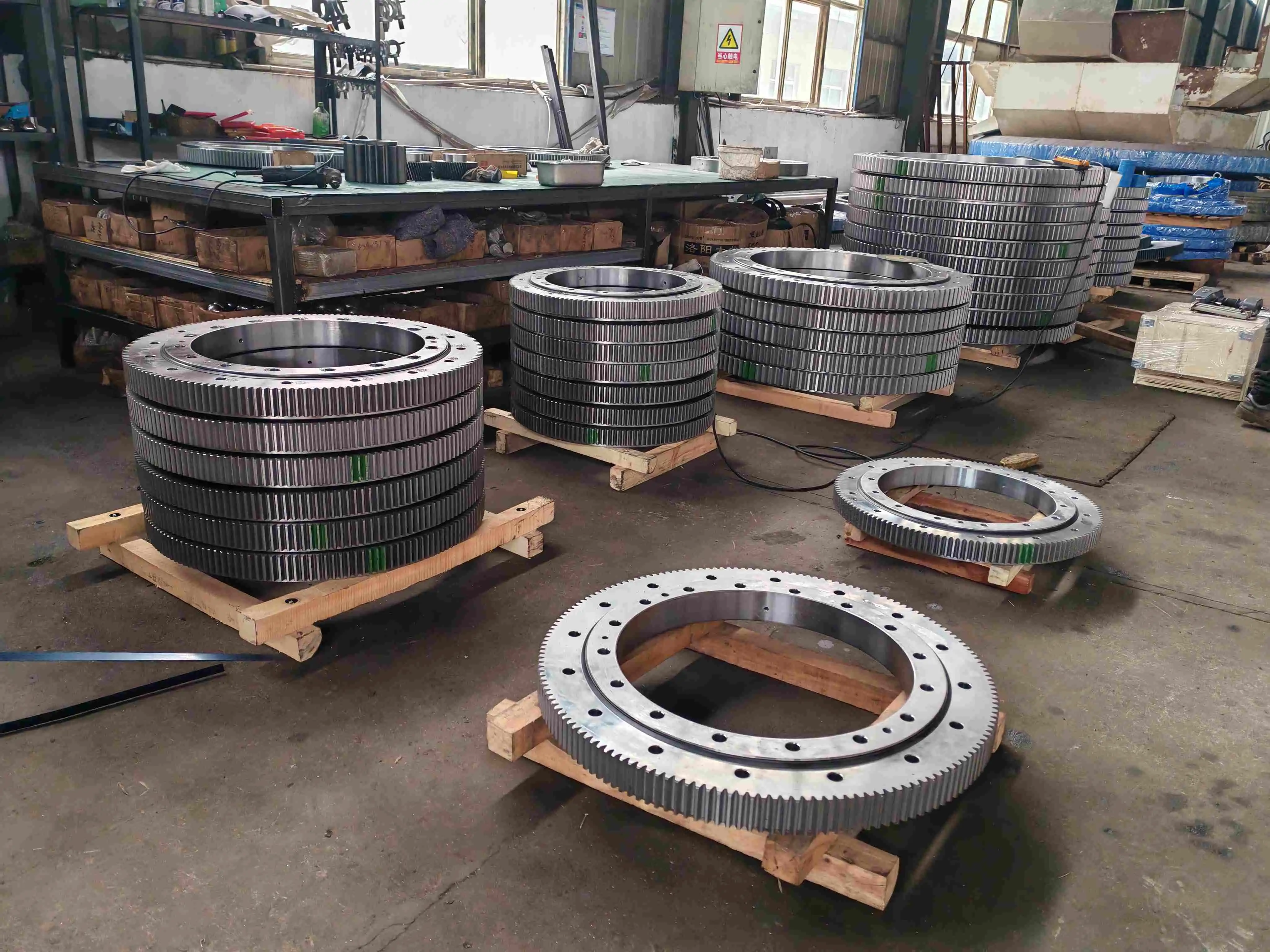

Heng Guan Bearing is equipped with CNC vertical lathes (processing range from 50 mm to 10,000 mm), CNC gear hobbing machines, and large induction hardening systems specifically developed for the production of this external gear slewing ring bearing in size 732mm, ensuring consistent tooth profile accuracy and raceway roundness. The entire bearing specifications (below) show the dimensional accuracy required of competent production equipment.
| Parameter | Value |
|---|---|
| Bearing Model | 011.30.630 |
| Structure Type | Single-row four-point contact ball, external gear |
| Outer Diameter (D) | 732 mm |
| Inner Diameter (d) | 528 mm |
| Total Height (H) | 80 mm |
| Raceway Center Diameter | 630 mm |
| Ball Diameter | 30 mm |
| Module (m) | 6 mm |
| Number of Teeth (Z) | 126 |
| Gear Tip Diameter (Da) | 774 mm |
| Gear Tooth Width (b) | 60 mm |
| Basic Dynamic Load Rating (Coa) | 1,870 kN |
| Bolt Circle — Outer (D1) | 696 mm, 24 holes |
| Bolt Circle — Inner (D2) | 564 mm, 24 holes |
| Bolt Hole Diameter | 18 mm (M16 bolts) |
| Ring Material | 50Mn / 42CrMo forged steel |
| Ball Material | GCr15 bearing steel |
| Raceway Hardness | 55–62 HRC |
| Seal Type | Double-sided nitrile rubber seal |
| Precision Grades | P0, P6, P5, P4 |
| Approximate Weight | 110 kg |
Buyers comparing an 011.30.630 manufacturer China should also ask about in-house testing capability, including ultrasonic flaw detection, hardness testing, and dimensional inspection, since suppliers who outsource critical quality checks often introduce longer lead times and inconsistent batch quality that only becomes apparent after installation. For technical drawings, precision grade options, or a formal 011.30.630 manufacturer China quotation, reach the Heng Guan Bearing engineering team directly at mia@hgb-bearing.com — our specialists typically respond within one business day with documentation tailored to your project.
011.30.630 Slewing Bearing Customization Options and Industrial Application Solutions
Beyond standard catalog dimensions, a capable 011.30.630 slewing bearing manufacturer should offer customization across mounting hole patterns, seal types, lubrication grease selection, and gear tooth modifications to match specific machinery requirements. Heng Guan Bearing produces this external gear slewing ring bearing 732mm model across P0, P6, P5, and P4 precision grades, giving engineers flexibility when designing rotary platforms for tower cranes, truck-mounted cranes, excavators, welding manipulators, and port handling equipment.
Because application environments vary widely — from dusty construction sites to humid coastal ports — working with an 011.30.630 manufacturer in China that supports custom sealing solutions (NBR, FKM, or labyrinth seals), marine-grade anti-corrosion coatings (zinc-nickel plating), and specialized lubricants ensures the finished bearing performs reliably across its intended service life rather than requiring premature replacement.
| Customization Option | Available Variants |
|---|---|
| Precision Grade | P0 (standard), P6, P5, P4 (high-precision) |
| Seal Type | NBR rubber, FKM (high-temp), labyrinth seal |
| Surface Treatment | Zinc-nickel plating, marine-grade anti-corrosion coating |
| Lubrication | Lithium-based EP2 grease, low-temp grease, food-grade |
| Mounting Holes | Standard 24+24 pattern, custom hole count on request |
| Gear Modification | Addendum modification (x), custom pressure angle |
Why Choose an Experienced 011.30.630 Slewing Bearing Manufacturer for Long-Term Supply?
Long-term supply reliability depends on more than a single successful order; it requires a manufacturer with the design experience and production capacity to support repeat business as demand grows. Heng Guan Bearing has gathered experienced bearing designers and skilled production workers dedicated to producing the 011.30.630 slewing bearing consistently across large and small order volumes alike, with standard models shipping in 7–15 days and custom configurations in 4–6 weeks.
Choosing an established 011.30.630 manufacturer in China also reduces supply chain risk, since experienced suppliers typically maintain buffer inventory of popular sizes, offer faster replacement turnaround for emergency downtime, and provide dedicated technical support for buyers managing ongoing equipment maintenance schedules across multiple facilities or export markets.
Conclusion
Heng Guan Bearing combines ISO 9001 certified quality, advanced CNC manufacturing, and flexible customization to deliver dependable 011.30.630 slewing bearing solutions for cranes, excavators, and rotary platforms. From certified dimensional drawings to custom precision grades and rapid delivery, our team supports your project from specification through after-sales service. Contact Us today to request drawings, pricing, or technical support.
FAQ
Q: What gear configuration does the 011.30.630 slewing bearing use?
A: It features external involute gear teeth on the outer ring — module 6, 126 teeth, tip diameter 774 mm — engaging a driving pinion for controlled, torque-driven rotation in crane and excavator applications.
Q: What are the main dimensions of the external gear slewing ring bearing 732mm?
A: The outer diameter is 732 mm, inner diameter is 528 mm, and total height is 80 mm. The bearing uses 24 M16 bolt holes on each of the outer (696 mm) and inner (564 mm) bolt circles, with a basic dynamic load rating of 1,870 kN.
Q: What certifications should I request from an 011.30.630 manufacturer in China?
A: Request ISO 9001:2015 certification, EN 10204 3.1 material traceability reports, gear tooth inspection certificates, and induction hardness test reports before finalizing a supplier.
Q: Can this bearing be customized for specific machinery?
A: Yes — mounting hole patterns, seal types (NBR, FKM, labyrinth), surface treatments (zinc-nickel plating), lubrication options, and gear tooth modifications can all be customized to match your equipment's requirements.
Q: What is the lead time for ordering from Heng Guan Bearing?
A: Standard precision (P0) models typically ship in 7–15 days. Custom precision grades (P5/P6) and modified configurations require 4–6 weeks. Emergency expedited production is available for unplanned downtime situations.
Get Your 011.30.630 Slewing Bearing Quote from Heng Guan Bearing
Ready to source a dependable 011.30.630 slewing bearing from a certified 011.30.630 manufacturer in China? Heng Guan Bearing offers certified external gear slewing ring bearing 732mm specifications, custom precision grades, marine-grade coating options, and responsive engineering support. Contact us today at mia@hgb-bearing.com for drawings, pricing, and reliable long-term supply.
References
ISO 9001:2015, Quality Management Systems — Requirements. International Organization for Standardization.
DIN 3960:1987, Definitions, Parameters and Equations for Involute Cylindrical Gears and Gear Pairs. Deutsches Institut für Normung.
Harris, T. A., & Kotzalas, M. N. (2006). Rolling Bearing Analysis (5th ed.). CRC Press.
DIN 616:2000, Rolling Bearings — Boundary Dimensions — General Plan. Deutsches Institut für Normung.
Shigley, J. E., Mischke, C. R., & Budynas, R. G. (2003). Mechanical Engineering Design (7th ed.). McGraw-Hill.
Brändlein, J., Eschmann, P., Hasbargen, L., & Weigand, K. (1999). Ball and Roller Bearings: Theory, Design and Application. John Wiley & Sons.
