Marine Crane Slewing Bearing

1. Product Description: The Marine Crane Slewing Bearing is a large slewing bearing designed specifically for marine equipment. Measuring 3800 × 3800 × 260 mm, it features exceptional load capacity, ultra-high precision (P5 grade), and excellent rotational stability.
2. Product Structure: Optimized raceway design: Precision-machined raceway profile ensures even load distribution.
3. Dimension Range: Product dimensions: 3800 mm × 3800 mm × 260 mm
Machinable range: 50 mm - 10,000 mm
Customization Capabilities: We can design and manufacture custom designs based on your specific design drawings (e.g., mounting dimensions, gear parameters, raceway center distance, etc.)
4. Material: Base material: 50Mn/42CrMo high-quality alloy steel
Heat Treatment: Overall quenching and tempering treatment, hardness HB 260-300
Tooth Surface Hardening: Medium-frequency quenching treatment, hardness HRC 55-60
5. Applications: Marine cranes, ship propulsion systems, special marine equipment, and marine engineering

Product Description

Marine Crane Slewing Bearing - High Precision Turntable Bearing for Marine Applications

Product Details

When your marine crane operates in harsh near-shore environments, you need a reliable slewing bearing. Luoyang Hengguan Bearing Technology Co., Ltd.'s marine crane slewing bearings are designed specifically for heavy-duty marine equipment. This rotary rolling bearing can withstand combined axial, radial, and moment loads, maintaining smooth and precise rotation even under extreme conditions. Measuring 3800 × 3800 × 260 mm and manufactured to P5 precision grade, it meets your operational reliability requirements.

Our slewing bearings feature precision-machined raceway profiles, ensuring even load distribution across the bearing surface. This design minimizes stress concentration and significantly extends service life. Optimized tooth profiles on the integral gear ensure smooth power transmission and reduce vibration and noise.

Why Choose Us?

Superior Engineering Technology

With over 20 years of experience in bearing manufacturing, our team of over 50 engineers focuses on the design and production of slewing bearings. We deeply understand the unique challenges of the marine environment.

Precision Manufacturing Capabilities

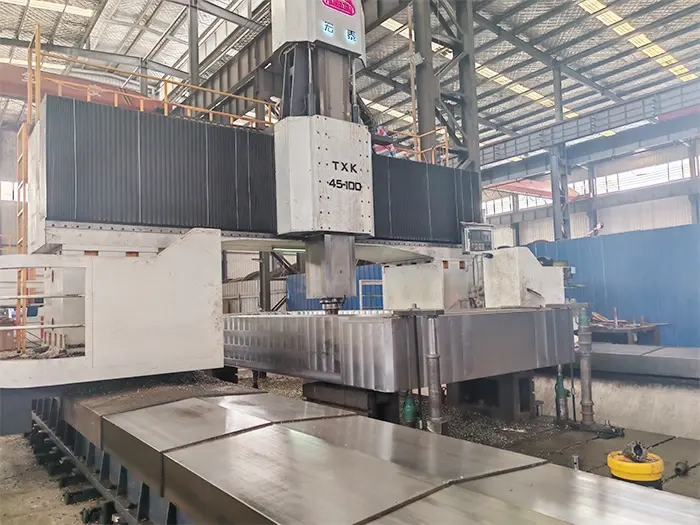

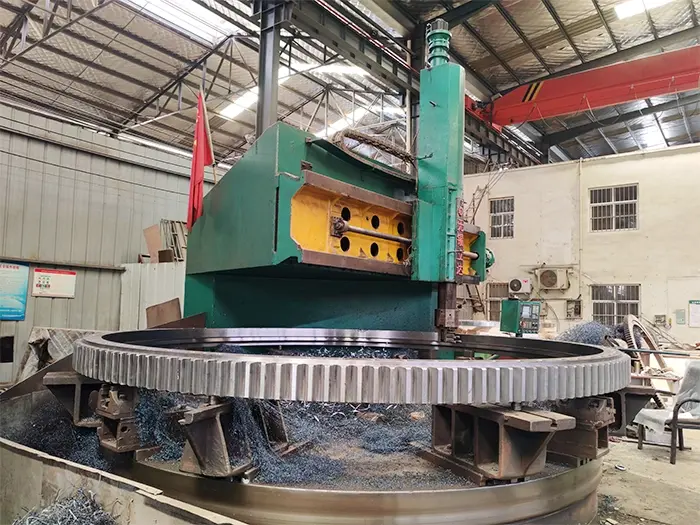

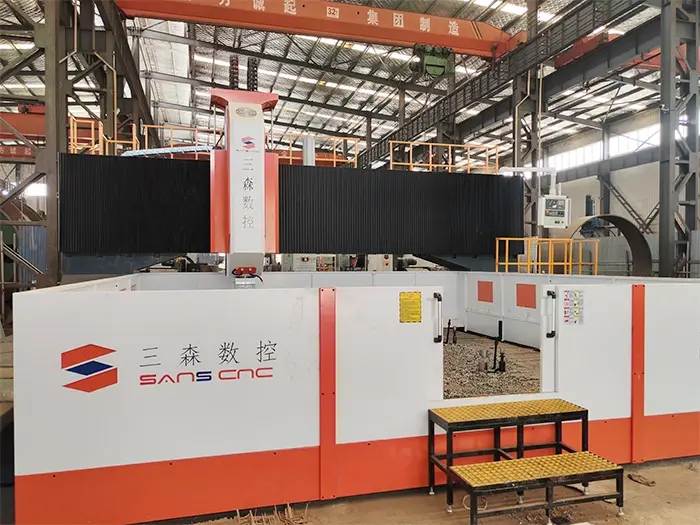

We possess CNC vertical lathes, CNC hardening machines, CNC gear forming machines, and grinding equipment. This allows us to maintain tight tolerances across a bearing production range of 50-10,000 mm diameter.

Quality Management System

Our ISO 9001 certified processes ensure consistent product quality. Every bearing undergoes rigorous dimensional inspection, hardness testing, and rotational performance verification before shipment.

Global Service Network

Our products serve customers in over 50 countries. We offer technical consultation, installation guidance, and custom design services to meet your specific needs.

Flexible Customization Services

We can manufacture bearings according to your installation dimensions, bolt hole layout, gear parameters, and raceway specifications. Non-standard configurations are our specialty.

Technical Specifications

Parameter	Specification	Notes
Product Dimensions	3800 × 3800 × 260 mm	Custom sizes available
Manufacturing Range	50-10,000 mm	Diameter capability
Precision Grade	P5	High precision class
Axial Clearance	0.03-0.05 mm	Adjustable
Radial Clearance	0.03-0.05 mm	Adjustable
Gear Tooth Hardness	HRC 55-60	Induction hardened
Base Material Hardness	HB 260-300	Quenched and tempered
Base Material	50Mn/42CrMo	High-strength alloy steel
Heat Treatment	Through-hardening + Tempering	Complete thermal processing

Certification

Marine Crane Slewing Bearing certification

Features and Benefits

High Load Capacity

The robust and durable marine crane slewing bearing raceway design can withstand combined loads in all directions. You can operate the crane at full load without worrying about bearing failure.

Longer Service Life

A precision heat treatment process hardens the tooth surface (HRC 55-60), making it wear-resistant. The tempered matrix (HB 260-300) gives it superior strength and wear resistance.

Extremely Minimal Clearance Control

Both pivot clearance and external clearance are controlled within 0.03-0.05 mm. This tight control reduces sway and significantly improves positioning accuracy during crane operation.

Corrosion-Resistant Design

Materials and surface treatments are selected specifically for marine environments. Your bearings can withstand seawater corrosion and temperature variations.

Smooth Rotation

P5 precision inspection ensures excellent roundness and raceway coverage. This means lower operating torque and lower energy consumption.

Applications

Marine Deck Cranes

Marine cranes are used for cargo loading, unloading, and lifting operations, utilizing the ability of bearings to handle small loads during slewing operations to achieve powerful lifting advantages.

Offshore Platform Cranes

Oil and gas platform cranes require systems that can operate reliably in harsh environments and with limited maintenance conditions.

Marine Drive Systems

Azimuth thrusters and podded drive units utilize slewing motion to achieve 360-degree rotation, thereby enabling ship maneuvering.

Offshore Development Equipment

Piling equipment, dredging equipment, and offshore development vessels rely on robust slewing bearings to achieve continuous operation.

Installation Guide

Pre-Installation Inspection

Check mounting surfaces for levelness and cleanliness. Evacuate any burrs, paint, or flotsam and jetsam from jolt gaps and mating surfaces.

Alignment Verification

Ensure the mounting base and beat stage are legitimately adjusted. Misalignment will cause uneven stack conveyance and untimely wear.

Bolt Fixing Sequence

Use a star design to fix mounting jolts continuously. Apply the torque indicated in your hardware manual. Never fix one jolt totally some time recently moving to the next.

Clearance Adjustment

After beginning establishment, work the bearing beneath light stack. Check and alter clearances if vital some time recently full-load operation.

Lubrication Application

Apply the suggested marine-grade oil to the raceway and adapt teeth some time recently commissioning.

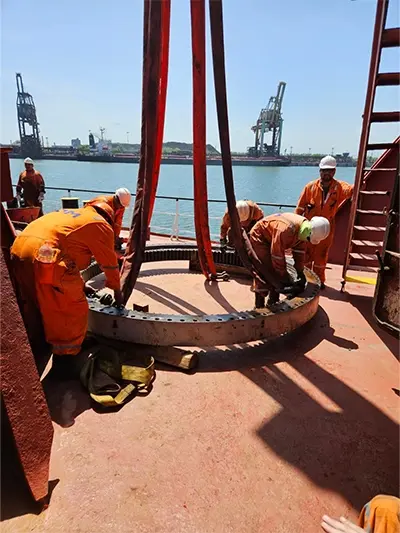

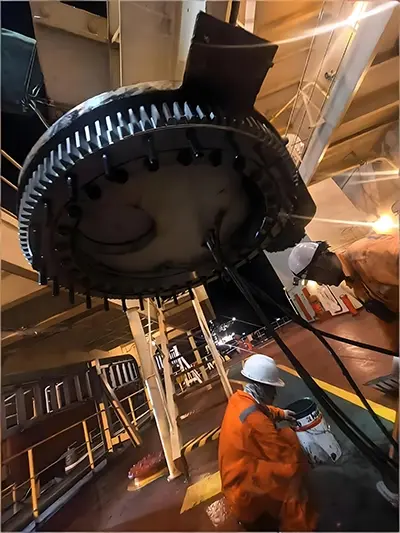

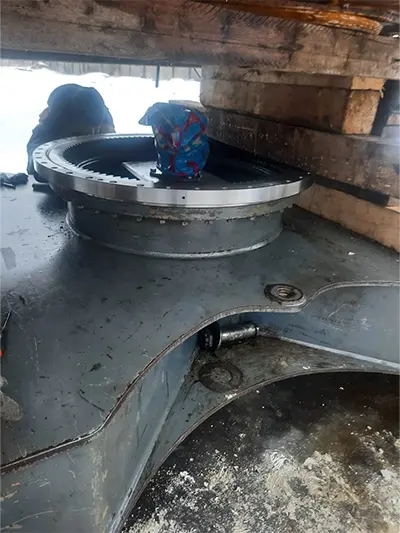

Marine Crane Slewing Bearing installation

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Marine Crane Slewing Bearing packing

Positive customer reviews

Our quality and service have received widespread praise from our customers.

Maintenance and Care

Regular Lubrication

Relubricate each 100 working hours or month to month, whichever comes to begin with. Utilize as it were marine-grade lithium oil evaluated for high-load applications.

Periodic Inspection

Check for abnormal clamor, vibration, or resistance amid turn. Assess mounting jolts for appropriate torque each 6 months.

Clearance Monitoring

Measure pivotal and spiral clearance every year. Expanded clearance shows wear and may require bearing alteration or replacement.

Seal Condition

Inspect seals for harm or wear. Supplant harmed seals promptly to avoid defilement ingress.

Gear Tooth Examination

Check equip teeth for setting, spalling, or over the top wear. Address any variations from the norm some time recently they lead to disastrous failure.

FAQ

Q: Can you make heading bigger than 3800 mm?

A: Yes, our generation capability expands to 10,000 mm breadth. We can plan and make item units to your correct specifications.

Q: What lead time ought to I anticipate for custom orders?

A: Standard setups transport inside 4-6 weeks. Custom plans ordinarily require 8-12 weeks depending on complexity.

Q: Do you give establishment support?

A: We offer point by point establishment drawings and farther specialized direction. On-site establishment bolster can be organized for expansive projects.

Q: What materials do you utilize for marine applications?

A: We utilize 50Mn or 42CrMo amalgam steel with suitable warm treatment. These materials give great erosion resistance and mechanical properties.

Q: Can you work from our existing bearing dimensions?

A: Yes, we give switch designing administrations. Send us your ancient bearing or dimensional information, and we'll make a coordinate substitution.

Contact Us

Ready to discuss your Marine Crane Slewing Bearing requirements? Our engineering team is here to help you select the right solution. Reach out to us at mia@hgb-bearing.com for technical support and quotations.

Luoyang Heng Guan Bearing Technology Co., Ltd. - Your trusted partner for slewing bearings in marine applications.
