Can a High-Precision Slewing Bearing Reduce Maintenance Costs?
Unplanned stoppages, premature wear, and frequent re-greasing silently eat away at budgets in cranes, port gear, and mining equipment. Many operators know the drill: a low-cost bearing, a premature failure, emergency repairs at the worst possible time, and a maintenance program that never quite seems to catch up. A high-precision slewing bearing addresses these issues right at the source. Heng Guan Bearing has made a name for itself by this method. In this tutorial, Heng Guan Bearing discusses how precise design, regular maintenance, and proper lubrication minimize operating costs, and why the 133.40.1600 slewing bearing merits a closer study. For details, see below.
How Does High-Precision Slewing Bearing Design Reduce Wear and Downtime?
The precise contact between rolling elements and raceways of a high-precision slewing bearing distributes stress uniformly, slowing down surface wear. The slewing bearing 133.40.1600 is a three-row roller slewing bearing with independent upper, lower, and radial raceways; thus, each roller row takes its own axial load, radial load, and tilting moment. This leads to a clear division of the loads, and local overload is avoided. Service intervals may be increased.
Heng Guan Bearing is manufactured to accuracy grades P0, P5, and P4. The rings are made of 42CrMo alloy steel; the GCr15SiMn rolling elements are used, with the raceways induction hardened to HRC 55–62 and the internal gear teeth to HRC 50–55. Toughened raceways and precision-cut teeth make every slewing bearing perform smoothly in everyday service. Less vibration means fewer emergency repairs, reduced downtime, and smoother rotation.
| Configuration | Primary Load Characteristic | Effect on Wear and Downtime |
|---|---|---|
| Single-row four-point contact ball | Balanced axial, radial and moment loads in a compact envelope | Suited to moderate loads where space is limited |
| Three-row roller | Very high axial and moment capacity with maximum rigidity | Separate raceways avoid local overload and extend service intervals |
| Double-row ball | Elevated radial capacity alongside axial load handling | Added stability for tower cranes and slewing jibs |
Next, let's look at the practices that turn this design advantage into real savings.
Which Slewing Bearing Maintenance Practices Help Lower Operating Costs?
Even the greatest slewing bearing will benefit from a simple practice. Begin with periodic checks of the bolt preload, since loose fasteners lead to uneven loads and damage the raceway. Check seals for cracks. Keep gear teeth clean and coated with proper grease. Record turn torque and any abnormal sounds so small changes are recognized before becoming large.
When installing a 133.40.1600 slewing bearing, make sure the mounting surfaces are smooth and clean. An accurately installed three row roller slewing bearing will run quietly and steadily. Torque bolts in a crisscross pattern to the desired torque. Retorque bolts after the first 100 hours as the ring beds to the mounting surface. Heng Guan Bearing provides instructions on installation with every transaction. An example timetable which you may customize to your personal duty cycle is shown in the table below.
| Task | Typical Frequency | Benefit |
|---|---|---|
| Bolt re-torque after installation | First 100 hours | Offsets bedding-in relaxation |
| Bolt torque check | Every 500 hours | Even load distribution |
| Seal inspection | Monthly | Keeps contaminants out |
| Gear cleaning and greasing | Every 250 hours | Smooth meshing |
| Rotation torque record | Quarterly | Early trend detection |
Heavy-duty or continuous-operation applications call for shorter intervals than the calendar-based schedule, so adjust each line to your actual working hours.
133.40.1600 Slewing Bearing: Key Specifications and Load Capacity

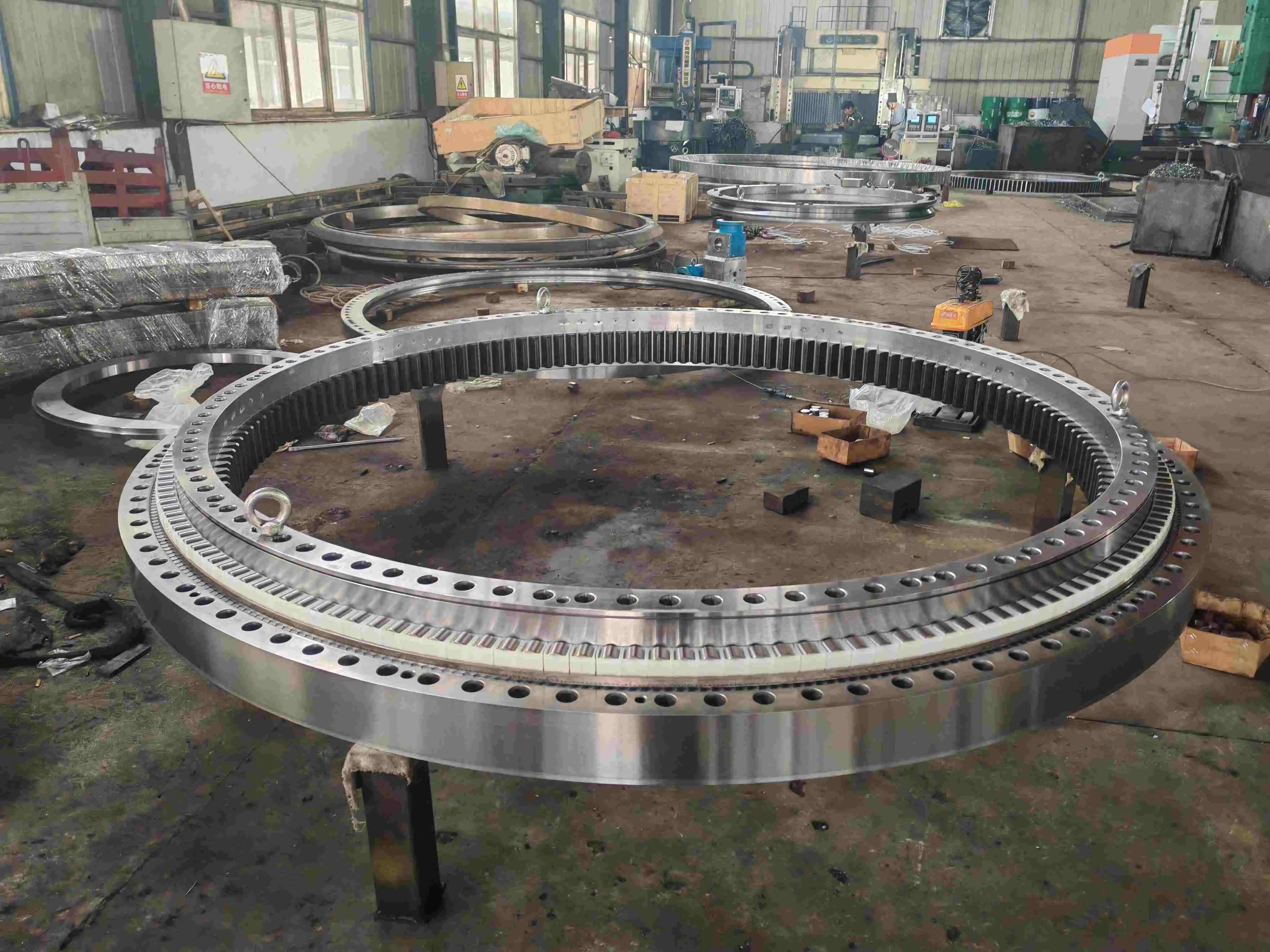

The 133.40.1600 slewing bearing is a three-row roller bearing with internal gear, developed for large lifting and swing systems. The principal use is tower cranes, but it may also be used in port cranes, ship cranes, wheeled cranes, stacker-reclaimers, and ladle turrets. It has an outside diameter of 1795 mm, an inner diameter of 1405 mm, and a height of 220 mm. It provides a robust construction and a substantial load-bearing section. With the three-row roller arrangement, it has one of the greatest load capabilities among slewing bearing types, managing axial force, radial force, and overturning moment at the same time. Axial forces up to 1200 kN and tilting moments up to 800 kN·m are possible, depending on the load distribution. Its 48 mounting holes disperse the load equally throughout the support frame.
The 133.40.1600 shares its envelope dimensions with the 130.40.1600 (no gear) and 131.40.1600 (external gear) variants; therefore, it is easy to retrofit and modify. Heng Guan Bearing can check load curves for your application. Not sure whether the 133.40.1600 slewing bearing fits your crane? Get engineering support for model matching and drawings by contacting us at mia@hgb-bearing.com, and review the key data below.
| Parameter | Value |
|---|---|
| Model | 133.40.1600 |
| Type | Three-row cylindrical roller + internal gear |
| Outer diameter (D) | 1795 mm |
| Inner diameter (d) | 1405 mm |
| Height (H) | 220 mm |
| Net weight | ~1520 kg |
| Mounting holes | 48 × Ø26 mm / M24 |
| Internal gear | Module 14, 96 teeth, face width 150 mm |
| Ring material | 42CrMo forged steel |
| Rolling element material | GCr15SiMn bearing steel |
| Precision grade | P0 / P5 / P4 |
| Raceway hardness | HRC 55–62 (induction quenched) |
| Gear teeth hardness | HRC 50–55 |
| Seals | Triple-lip NBR seal |
Standard configurations ship in 7–15 days, and custom orders typically take 4–6 weeks.
How Can Proper Lubrication Extend Slewing Bearing Service Life?
Proper lubrication creates a protective coating between rollers and raceways that decreases friction, heat, and wear. A lithium-based EP grease is a frequent choice for a three row roller slewing bearing, and the raceways should be re-greased when the bearing is rotating slowly so that the grease distributes evenly around the circle. The gear teeth of the 133.40.1600 slewing bearing require their own oil, which should be applied periodically to maintain quiet, smooth meshing.
When replenishing, always wipe away old, contaminated grease and never combine incompatible greases. The 133.40.1600 slewing bearing has triple-lip seals to keep dust and water out, but the seals are only effective if the grease below them is clean. In salt-spray or dusty locations, reduce the frequency, e.g., to every 200 operating hours in maritime duty.
| Lubrication Practice | Why It Matters |
|---|---|
| Use lithium-based EP grease compatible with NBR seals | Protects rollers and raceways under heavy load |
| Re-grease while rotating slowly | Spreads grease evenly around the full circumference |
| Grease the gear teeth separately | Keeps meshing quiet and reduces tooth wear |
| Wipe away old, contaminated grease first | Prevents abrasive particles from grinding the raceways |
| Shorten intervals in harsh sites | Compensates for salt, dust, and continuous rotation |
With these steps, a high-precision slewing bearing from Heng Guan Bearing can serve for many years, lowering both spare-part spending and labor hours. Follow the schedule in the table above, and your maintenance budget will thank you.
Conclusion
Uniform load distribution, easy regular maintenance, and proper lubrication make the high-precision slewing bearing save maintenance costs. Heng Guan Bearing’s 133.40.1600 slewing bearing is a high-duty, three-row roller slewing bearing that helps heavy equipment operators reduce wear, prevent downtime, and safeguard long-term budgets.
FAQ
Q: What type of bearing is the 133.40.1600 slewing bearing?
A: It is an internal-gear three-row roller slewing bearing, with separate raceways that carry axial and radial loads independently.
Q: What are its main dimensions?
A: The outer diameter is 1795 mm, the inner diameter is 1405 mm, and the height is 220 mm, with a net weight of about 1520 kg.
Q: Which equipment is it suited for?
A: It suits tower cranes, port cranes, ship cranes, and other heavy-duty lifting and swing systems, as well as stacker-reclaimers and ladle turrets.
Q: How often should the gear teeth be greased?
A: A typical interval is every 250 hours, adjusted to your duty cycle. Shorten it in marine, dusty, or continuous-operation applications.
Q: Can Heng Guan Bearing customize a slewing bearing?
A: Yes, personalized designs are available for specific customer needs, including bolt patterns, gear modules, seals, and coatings.
Contact Heng Guan Bearing Today to Lower Your Maintenance Costs
Ready to reduce downtime and spare-part spending? Luoyang Heng Guan Bearing Technology Co., Ltd. combines engineering expertise, manufacturing capability, and technical support to deliver slewing bearings that minimise downtime and maximise reliability:
- Forged 42CrMo rings and GCr15SiMn rolling elements, with P0, P5 and P4 precision grades
- ISO 9001-certified production, custom sizing and material options
- Engineering support for load analysis, bearing selection and installation guidance
- Proven solutions for tower cranes, port cranes, marine cranes and other heavy-duty systems
Contact Us for a tailored slewing bearing solution, technical drawings and a competitive quotation. Email Mia at mia@hgb-bearing.com, share your working conditions, and our team will recommend the right model for your equipment.
References
1. Harris, T. A., & Kotzalas, M. N. Rolling Bearing Analysis, 5th ed. CRC Press, 2006.
2. ISO 281:2007. Rolling Bearings: Dynamic Load Ratings and Rating Life. International Organization for Standardization.
3. Stachowiak, G. W., & Batchelor, A. W. Engineering Tribology, 4th ed. Butterworth-Heinemann, 2013.
4. Bhushan, B. Introduction to Tribology, 2nd ed. Wiley, 2013.
5. Mobley, R. K. An Introduction to Predictive Maintenance, 2nd ed. Butterworth-Heinemann, 2002.
6. Schmid, S. R., Hamrock, B. J., & Jacobson, B. O. Fundamentals of Machine Elements, 3rd ed. CRC Press, 2014.
