Are Custom Port Crane Slewing Bearings Available for Projects?
Yes. Custom port crane slewing bearing solutions are available for projects where a standard bearing cannot adequately match the crane's load conditions, mounting envelope, gear arrangement, or operating environment. Customising port equipment is more than just adjusting the bearing diameter. The bearing must be selected and engineered as part of the overall slewing system considering axial load, radial load, tilting moment, load spectrum, rotation circumstances, gear forces, mounting structure, lubrication, sealing and environmental exposure. For heavy-duty port cranes with high combined loading as a main design requirement, the three-row roller layout is a feasible solution. Other applications can lend themselves more to the double row ball or single row ball configuration. Heng Guan Bearing Technology provides crane slewing bearings in three-row roller, reinforced double-row ball and single-row ball types, with ring materials such as 42CrMo and 50Mn and rolling elements made from GCr15SiMn bearing steel. Special-size customisation is also listed as an option in its published port-crane information. The main takeaway for OEMs, crane makers and port operators is that a custom bearing should be designed based on documented application needs instead of a broad statement that a bigger or stronger bearing is always preferable.
|
|
When Does a Port Crane Need a Custom Slewing Bearing?
A standard slewing bearing can be an efficient choice when its dimensions, load ratings, gear configuration, and operating conditions match the equipment. Custom engineering becomes more relevant when one or more of those requirements fall outside a standard configuration.
Port cranes often operate with substantial and changing loads. The slewing bearing must support the loads transferred between the rotating upper structure and the supporting structure while allowing controlled rotation. Depending on the crane configuration, the bearing may simultaneously experience axial force, radial force, and a tilting moment.
The selection process therefore begins with the actual operating conditions. A manufacturer with slewing-bearing engineering capability should normally evaluate the maximum and minimum load cases, load spectrum, slewing speed or number of slewing movements, swing angle, gear forces, bearing diameter, and other operating conditions. These are also among the parameters identified by established slewing-bearing engineering guidance for bearing selection.
Load and Duty Conditions That Can Drive Customization
The first reason to consider customization is usually the load combination.
A port crane does not experience one constant load. The bearing may see different conditions during lifting, slewing, acceleration, deceleration, positioning, empty-hook operation, and other working cycles. Wind can also affect the resulting moment, particularly when the crane operates outdoors.
For this reason, engineers should provide more than the crane's rated lifting capacity. Useful design inputs include:
Maximum lifted load
Dead weight of the rotating structure
Maximum and minimum working radius
Axial and radial loads
Tilting or overturning moment
Wind loading where applicable
Slewing speed and acceleration
Working cycle or load spectrum
Gear transmission force
Required static safety margin
Mounting bolt arrangement and structural stiffness
A professional bearing selection should consider the combination of these loads rather than selecting the bearing solely from the lifting capacity.
Dimensional and Interface Constraints
Space limitations are another common reason for customization.
The bearing must fit the crane's existing support structure while maintaining appropriate mounting dimensions, bolt-hole positions, gear geometry, clearances, and installation access. Replacing an existing bearing can be particularly challenging when the original component is obsolete or when the available mounting structure cannot be modified easily.
A custom port crane slewing bearing can be designed around defined interface dimensions. Depending on the project, customization may involve the inner or outer diameter, section height, mounting-hole pattern, gear arrangement, raceway configuration, internal clearance, lubrication ports, or sealing arrangement.
This approach is particularly useful for OEM projects because the bearing can be considered during the machine design stage rather than treated as a standard component that must fit an already-fixed structure.
How Is a Custom Port Crane Slewing Bearing Engineered?
Customization should begin with engineering data, not manufacturing. The supplier needs enough information to understand the actual mechanical requirements before recommending a bearing structure.
Selecting the Appropriate Bearing Configuration
Different slewing-bearing structures have different load and space characteristics.
A three-row roller slewing bearing separates the main load paths through multiple raceways and is commonly considered for heavy-duty applications where high load capacity is required. A double-row ball design can provide a different balance between load capacity, section size, and rotational characteristics. A single-row ball design may be appropriate for applications with less demanding load combinations.
The correct configuration depends on the complete load case and mounting conditions. There is no universal rule that a three-row roller bearing is automatically the best choice for every port crane.
The bearing may also be supplied with an internal gear, an external gear, or without an integral gear depending on the crane's drive arrangement. Gear geometry should be considered together with the bearing because the slewing drive transfers torque and circumferential forces through this interface.
Material and Heat Treatment Selection
Material selection affects the strength, toughness, wear resistance, and fatigue performance of the bearing rings and rolling elements.
Heng Guan's published crane bearing information lists 42CrMo and 50Mn alloy steel for bearing rings and GCr15SiMn bearing steel for rolling elements. These materials are commonly associated with heavy-duty bearing applications, but the final material and heat-treatment specification should be established according to the actual design and manufacturing requirements.
Heat treatment is equally important. Raceway hardness, hardened-layer depth, core toughness, dimensional stability, and residual stress can all affect bearing performance. A manufacturer should therefore be able to explain the applicable heat-treatment process and provide inspection or material documentation when required by the project.
For marine and port environments, material selection should also be considered together with sealing, lubrication, surface protection, and maintenance practices. Material choice alone does not make a bearing corrosion-proof.
Raceway and Internal Clearance Design
The raceway is one of the most critical areas of a slewing bearing because the rolling elements transfer the operating loads through the contact surfaces.
During custom engineering, the raceway geometry and internal clearance should be evaluated against the expected load combination and operating conditions. Excessive clearance, insufficient clearance, misalignment, or unexpected deformation of the supporting structure can influence load distribution.
This is one reason why the bearing cannot be evaluated independently from the crane structure. The stiffness and flatness of the mounting surfaces, bolt preload, installation accuracy, and structural deformation can all affect how the load is distributed through the bearing.
ISO 76 provides methods for static load ratings and static equivalent loads for applicable rolling-bearing designs, while ISO 281 addresses basic dynamic load ratings and rating life. However, ISO 76 also identifies situations involving abnormal load distribution, misalignment, preload, large clearance, and special internal designs where its calculations may not be sufficient on their own.
For a large custom slewing bearing, these calculations should therefore form part of a broader engineering assessment rather than being treated as the only design criterion.
What Features Can Be Customized for Port Crane Applications?
Customization can involve much more than the bearing's outside diameter.
Mounting Dimensions and Gear Configuration
For an OEM project, the bearing's interface can be designed to match the crane structure. Important parameters may include:
Inner and outer ring dimensions
Section height
Mounting-hole diameter and pitch
Number and arrangement of mounting holes
Gear position
Gear module and tooth geometry
Internal or external gear
Lubrication port location
Seal arrangement
Required clearances
These details are important for a port crane slewing bearing because a bearing that satisfies the calculated load requirement may still be unsuitable if its mounting interface or gear arrangement does not match the crane.
Sealing and Lubrication
Port cranes are exposed to rain, humidity, dust, salt spray, and other contaminants. A suitable sealing system helps limit the ingress of water and contaminants while retaining lubricant inside the bearing.
However, seals should not be treated as a substitute for maintenance. The actual service interval depends on the bearing design, lubricant, load, speed, environment, and operating cycle.
A custom project can specify suitable seal materials and lubrication arrangements based on those conditions. Heng Guan's published crane and marine bearing information lists NBR and FKM sealing options for relevant products.
For port equipment, the lubrication system should also be accessible after installation. Grease points, lubrication channels, and maintenance access can make a significant difference to practical serviceability.
Corrosion Protection for Marine Environments
A port environment is not identical to an offshore environment, but both can expose equipment to moisture and salt contamination.
Corrosion protection should, therefore, be considered as a system. Depending on the project, this can include suitable ring materials, protective coatings, sealed interfaces, corrosion-resistant fasteners, appropriate seal materials, and a maintenance plan that addresses contamination.
The bearing supplier should specify exactly what protection is included rather than simply describing the bearing as “marine grade.”
How Should Custom Bearings Be Tested and Inspected?
A custom bearing should be supported by a documented quality-control process.
Dimensional and Manufacturing Inspection
Important inspection areas can include:
Bearing ring dimensions
Mounting-hole position
Raceway geometry
Gear dimensions
Gear runout
Radial and axial clearance
Surface finish
Heat-treatment condition
Material certificates
Hardness
Non-destructive testing where required
The inspection plan should be agreed upon before production, particularly for large bearings used in safety-critical lifting equipment.
Coordinate measuring equipment, hardness testing, dimensional inspection, and appropriate non-destructive testing can help verify that the finished component matches the approved drawings and specifications.
Engineering Documentation
For an OEM or replacement project, documentation can be just as important as the physical component.

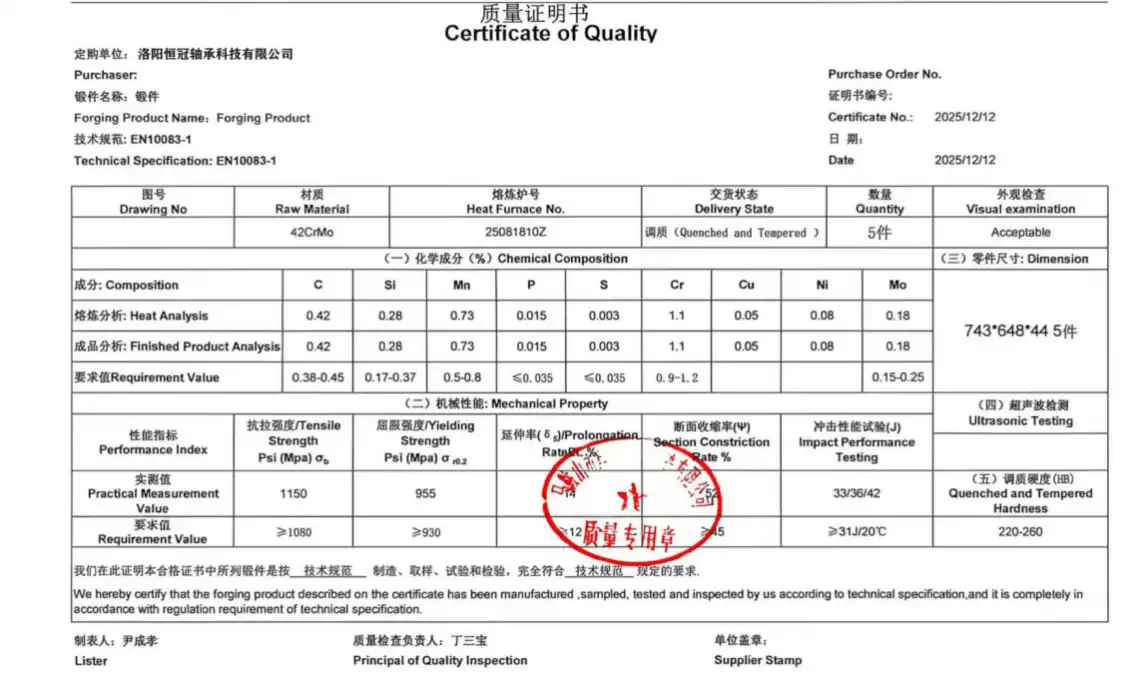

A supplier should be able to provide appropriate technical documents, such as
Approved bearing drawings
Material certificates
Heat-treatment records
Inspection reports
Dimensional reports
Gear inspection results
Product data sheets
Installation instructions
Lubrication recommendations
Maintenance guidance
The exact documentation package should depend on the customer's quality requirements and the criticality of the application.
How Long Does a Custom Slewing Bearing Project Take?
There is no reliable universal lead time for every custom bearing project.
The production schedule for port crane slewing bearings depends on the bearing diameter, structure, material availability, forging requirements, machining workload, heat treatment, gear processing, inspection requirements, quantity, and whether new tooling or process development is required.
A realistic project schedule should therefore be confirmed after the technical specification has been reviewed.
For procurement teams, the most useful approach is to separate the project into several milestones:
Application data submission
Preliminary engineering review
Bearing selection and calculation
Drawing approval
Material and production planning
Machining and heat treatment
Assembly and inspection
Final documentation
Shipment and installation support
This approach gives the buyer better visibility than simply asking for a generic “delivery time.”
What Should Buyers Ask a Custom Bearing Manufacturer?
Supplier evaluation should focus on engineering capability rather than only unit price.
Technical Capability
Ask whether the supplier can provide engineering support for the complete bearing selection process. The supplier should be able to discuss load cases, raceway design, material selection, gear requirements, mounting interfaces, lubrication, and inspection.
A supplier's ability to explain why a particular configuration is recommended is often more useful than a simple product catalog.
Manufacturing and Quality Control
For large slewing bearings, buyers should investigate whether the manufacturer has suitable equipment for large-diameter machining, gear processing, heat treatment, grinding or raceway finishing, dimensional inspection, and final assembly.
Certification such as ISO 9001 can provide evidence of a formal quality-management system, but certification alone does not prove that a specific bearing is suitable for a particular crane. The supplier's actual manufacturing process, inspection records, engineering experience, and traceability should also be evaluated.
Replacement and After-Sales Support
For an existing crane, technical support should continue beyond delivery.
The supplier should ideally provide installation guidance, lubrication recommendations, bolt-tightening requirements, inspection procedures, and troubleshooting support. If the bearing is a replacement for an existing component, drawings or measurements from the original bearing can also help reduce dimensional errors during the replacement process.
Custom vs. Standard: Which Option Is Better?
The right choice depends on the project.
When a Standard Bearing Makes More Sense
A standard bearing may be preferable when its load ratings, dimensions, gear arrangement, accuracy, lubrication system, and environmental specification already meet the equipment requirements.
Using a standard configuration can simplify procurement, reduce engineering work, and shorten the development process.
There is no technical benefit in customizing a bearing simply for the sake of customization.
When Custom Engineering Adds Value
Customization becomes more attractive when the standard catalog cannot satisfy one or more important requirements.
Typical examples include the following:
Unusual mounting dimensions
Large bearing diameter
Limited installation space
Special gear geometry
Unusual load combinations
Existing equipment with a non-standard interface
Harsh contamination conditions
Special sealing requirements
Legacy equipment requiring a replacement bearing
OEM equipment requiring a dedicated bearing specification
In these situations, a custom port crane slewing bearing can be developed around the actual machine rather than forcing the machine to accommodate an unsuitable standard component.
Evaluate Total Project Cost, Not Just Bearing Price
The lowest purchase price is not necessarily the lowest project cost.
A bearing that requires structural modification, additional adapters, extensive installation work, or repeated maintenance may become more expensive than a correctly engineered custom component.
For this reason, buyers should consider:
Bearing purchase price
Engineering cost
Adaptation or modification cost
Installation requirements
Maintenance requirements
Expected operating conditions
Spare-parts strategy
Downtime risk
Supplier technical support
The objective is not simply to purchase the most heavily rated bearing. It is to obtain a bearing that fits the machine, satisfies the required load cases, and can be maintained throughout its intended operating period.
|
|
Conclusion
Custom port crane slewing bearing solutions are available and can be a practical option when standard bearing configurations do not meet a crane project's mechanical, dimensional, or environmental requirements. The key is to treat customization as an engineering process rather than simply requesting a larger or stronger bearing.
A reliable solution should be developed from the crane's actual axial load, radial load, tilting moment, load spectrum, slewing conditions, gear forces, mounting interface, lubrication requirements, and environmental exposure. Material selection, raceway design, sealing, heat treatment, manufacturing accuracy, and inspection should then be matched to those requirements.
For OEMs and port operators, the best starting point is to provide complete application data and existing bearing drawings or dimensions. A capable manufacturer can use this information to evaluate the appropriate bearing structure, develop the mounting and gear configuration, confirm the technical requirements, and establish an inspection and delivery plan. This makes the final bearing easier to integrate and gives the project a clearer technical basis from design through installation and maintenance.
FAQ
1. What size ranges are available for custom port crane slewing bearings?
It is possible to make custom slewing bearings in almost any size needed for a given job. The standard size ranges are between 200 mm and over 4000 mm in diameter, but for some unique uses, the sizes need to be even bigger. The 4238 mm x 270 mm example shows that it is possible to meet the extra-large needs for heavy-duty port equipment.
2. How long does it take to manufacture custom port crane slewing bearings?
Custom bearings usually take between 12 and 16 weeks to make, but this depends on their size, complexity, and how busy the factory is right now. This schedule includes validating the plan, getting the materials, starting the production process, and doing a full quality check. Rush orders can be filled by changing the schedule and allocating production more efficiently.
3. What materials are used in custom port crane slewing bearing construction?
For naval uses, custom bearings are made from high-quality materials. Special grade steels like 42CrMo or 50Mn are used in base buildings because they are stronger and don't rust. The rolling elements are made from GCr15SiMn high-purity bearing steel, and the sealing systems use foreign nitrile rubber or fluororubber mixtures to protect the environment even more.
4. Can existing standard bearings be replaced with custom solutions?
Most of the time, custom bearing solutions can be added to current systems during routine maintenance or equipment refurbishment. People can make custom designs that fit current mounting arrangements and improve performance at the same time. With this method, workers can get the benefits of special bearings without having to make a lot of changes to their equipment.
5. What maintenance advantages do custom bearings provide?
When compared to normal options, custom bearings usually have longer service intervals, less frequent maintenance, and easier service processes. Better sealing systems lower the risk of contamination, and better lubrication systems make it possible to re-lubricate parts more often. These changes cut down on the cost of maintenance work and keep operations running as smoothly as possible.
Partner With Heng Guan for Your Custom Port Crane Slewing Bearing Requirements
Heng Guan Bearing Technology is ready to provide you with top-notch custom slewing bearing options that are made to fit your port crane needs. Our group of more than 50 skilled engineers has been making high-performance bearings for harsh marine conditions for decades. We make sure that every custom port crane slewing bearing meets strict quality standards and provides excellent performance and dependability by being ISO 9001 certified and using advanced production techniques. Our all-around method includes thorough engineering advice, the creation of the best designs, precise production, and continued technical support for the entire duration of the bearing. As a reliable provider of port crane slewing bearings, we know how important port operations are and offer solutions that keep downtime to a minimum while increasing working efficiency. Contact our engineering team at mia@hgb-bearing.com to talk about your custom bearing needs and find out how our creative ideas can improve the performance of your port equipment.
