Three-Row Roller Slewing Bearing

Three-Row Roller Slewing Bearing – Heavy-Duty Rotational Solutions

Product Details

When your application demands exceptional load capacity and reliable performance, the Three-Row Roller Slewing Bearing delivers the engineering precision required. This advanced bearing design features three independently arranged rows of cylindrical rollers, which efficiently distribute axial loads, radial loads, and overturning moments across separate roller paths. Its unique configuration transforms point contact into line contact, significantly reducing contact stress while maximizing load-bearing capacity. Unlike conventional slewing bearings, this design assigns specific roles to each roller row: two horizontal rows handle axial forces and tilting moments, while one vertical row manages radial loads. This intelligent load distribution makes it the ideal solution for heavy machinery operating under extreme conditions.

Our bearings are manufactured using 42CrMo and 50Mn alloy steel for structural components, with rolling elements made from GCr15SiMn high-purity bearing steel. Each unit undergoes precision heat treatment and strict quality control to ensure dimensional accuracy and surface finish meet international standards.

Why Choose Us?

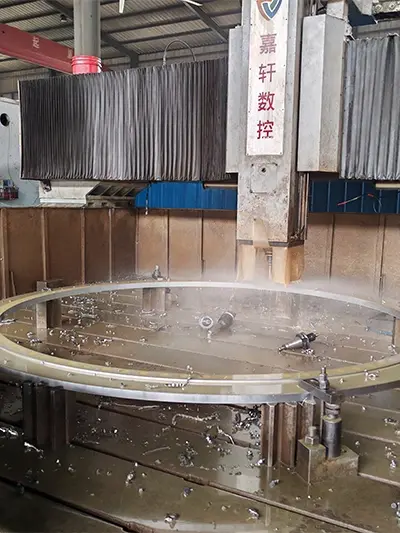

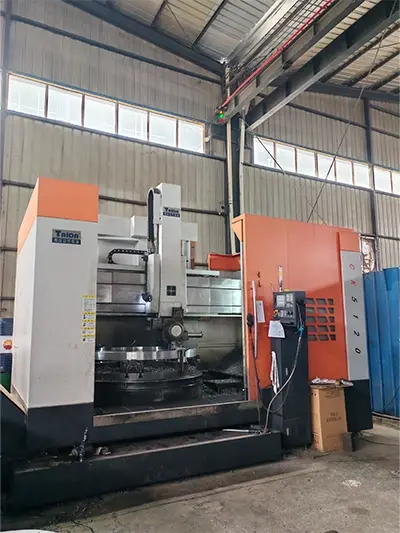

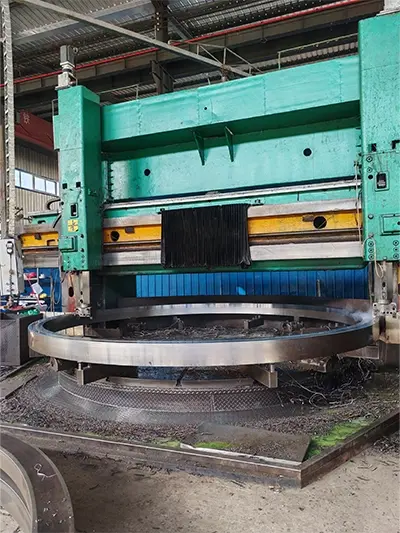

Luoyang Heng Guan Bearing Innovation combines three decades of fabricating encounter with present day designing capabilities. Our office in Luoyang—China's bearing industry center—houses progressed CNC vertical machines, equip shapers, and exactness crushing equipment.

We keep up ISO9001 certification and guarantee all items comply with RoHS necessities. Our designing group gives specialized meeting, custom plan administrations, and establishment direction all through your venture lifecycle.

With items sent out to over 50 nations counting Germany, the Joined together States, Australia, and all through the Center East, we get it assorted application necessities. We offer adaptable OEM/ODM organizations and back both standard and non-standard customization based on your 3D drawings or existing item mapping.

Technical Specifications

Certification

Features and Benefits

Predominant Stack Distribution

Three isolated roller lines partition work proficiently. This plan diminishes person roller stretch and expands operational life indeed beneath persistent overwhelming loads.

Enhanced Rigidity

The organized roller course of action gives amazing solidness. Your hardware encounters negligible avoidance amid revolution, keeping up positional accuracy.

Line Contact Advantage

Cylindrical rollers make line contact instep of point contact. This diminishes surface weight and wear rates altogether compared to ball-type slewing bearings.

Low Contact Torque

Optimized roller geometry and accuracy fabricating result in smooth revolution with negligible resistance. This diminishes vitality utilization in your drive systems.

Versatile Mounting

Available in no-Gear, external-gear, and internal-gear setups. You can coordinated the bearing consistently into different mechanical plans utilizing standard shot connections.

Customization Capability

We suit extraordinary measure necessities, non-standard stack conditions, and special mounting courses of action. Our building group works with your determinations to create reasonable solutions.

Applications

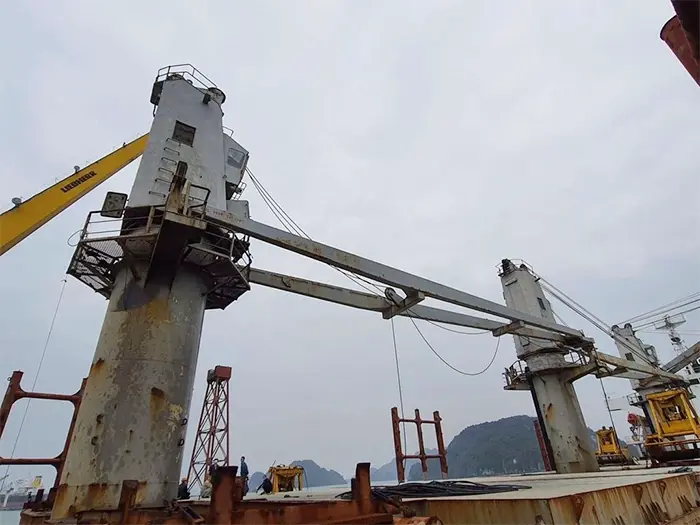

Port and Marine Equipment

Ship-to-shore cranes, holder handlers, and seaward stage rotators depend on these orientation for 24/7 operation in destructive situations.

Mining Machinery

Excavators, draglines, and bucket-wheel systems require the high radial capacity that Three-Row Roller Slewing Bearing designs provide.

Metallurgical Equipment

Ladle turrets, nonstop casting machines, and fabric dealing with frameworks advantage from the bearing's capacity to oversee combined loads.

Wind Vitality Systems

Turbine yaw and pitch instruments request accuracy revolution beneath changing wind loads and climate conditions.

Construction Equipment

Mobile cranes, concrete pumps, and boring rigs utilize these orientation for solid slewing capacities in requesting jobsite conditions.

Special Building Projects

Radar stages, toady following frameworks, and mechanical robots require the accuracy and steadiness these heading deliver.

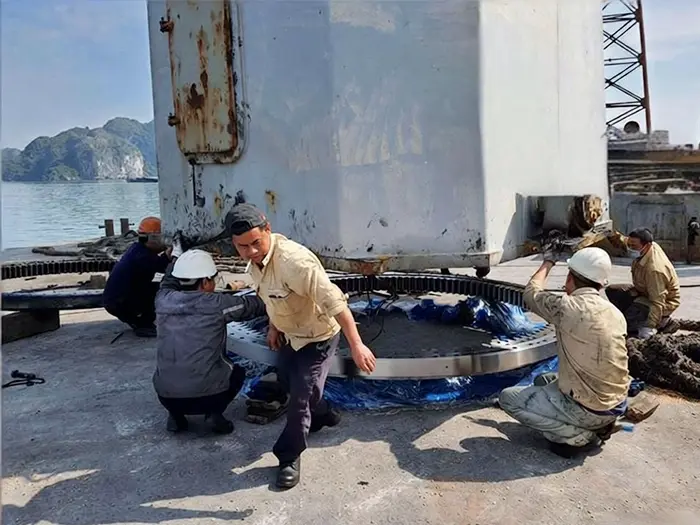

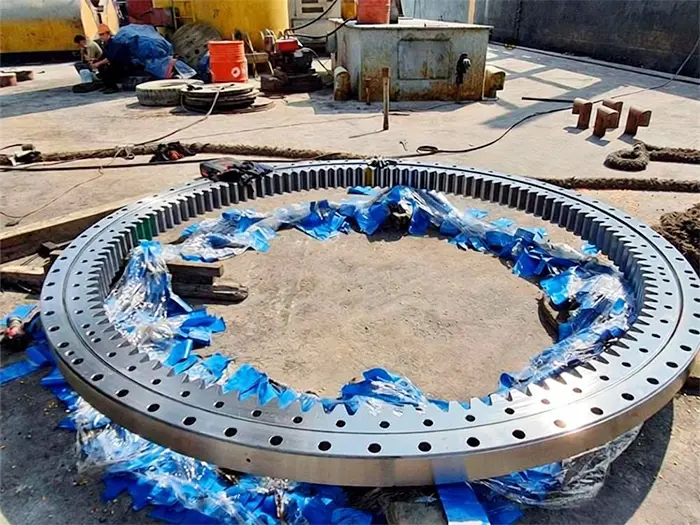

Installation Guide

Pre-Installation Inspection

Verify mounting surface levelness utilizing accuracy measuring instruments. Clean all surfaces completely to expel flotsam and jetsam and defensive coatings.

Mounting Surface Preparation

Ensure jolt gaps adjust precisely with bearing mounting gaps. Check that surface hardness meets determination prerequisites for legitimate stack transfer.

Bearing Positioning

Carefully position the bearing utilizing lifting gear evaluated for the bearing weight. Adjust equip teeth (in case prepared) some time recently last placement.

Bolt Fixing Procedure

Apply jolts in a star design arrangement. Fix dynamically to indicated torque values utilizing calibrated devices. Recheck torque after introductory operation period.

Lubrication Application

Fill oil channels with suggested grease review. Pivot the bearing a few insurgencies to disseminate oil equitably over roller paths.

Clearance Verification

Measure pivotal and outspread clearance after establishment. Values ought to drop inside indicated ranges for appropriate stack distribution.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

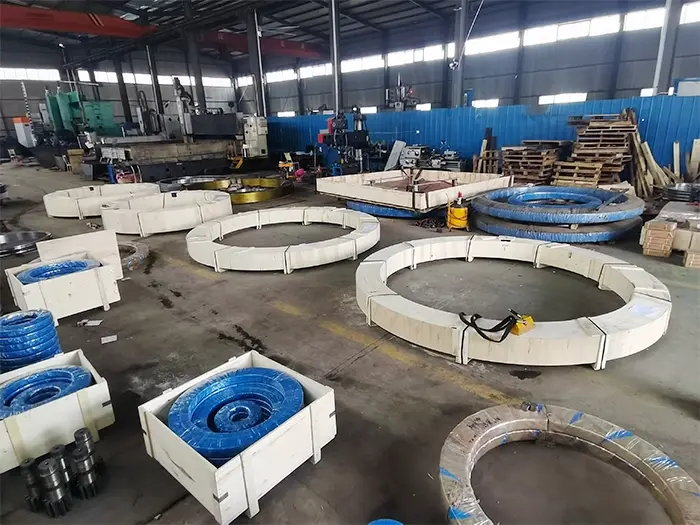

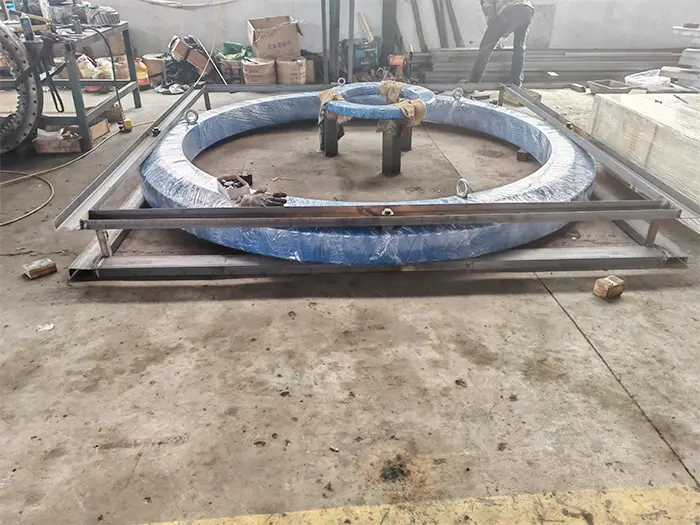

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Regular Lubrication

Replenish oil at interims based on working hours and natural conditions. Normal interims extend from 100 to 500 working hours.

Seal Inspection

Check seals frequently for harm or wear. Supplant compromised seals instantly to avoid contaminant ingress.

Bolt Torque Verification

Recheck mounting jolt torque intermittently, particularly amid the to begin with month of operation when beginning settling occurs.

Operational Monitoring

Listen for abnormal clamor amid turn. Irregular sounds may show insufficient grease or contaminant entry.

Cleaning Procedures

Remove collected soil from outside surfaces. Maintain a strategic distance from high-pressure washing straightforwardly onto seal areas.

Positive customer reviews

Our quality and service have received widespread praise from our customers.

FAQ

Q: What makes three-row roller orientation diverse from double-row designs?

A: The third roller push gives committed outspread stack bolster, altogether expanding in general capacity whereas keeping up compact dimensions.

Q: Can you give orientation bigger than 8,000mm internal diameter?

A: Yes, we fabricate custom sizes up to 10,000mm external distance across for extraordinary applications.

Q: What accuracy review ought to I specify?

A: P0 suits common mechanical utilize. P6 serves exactness apparatus. P5 and P4 grades fit applications requiring negligible runout.

Q: How do I decide required grease intervals?

A: Interims depend on rotational speed, stack, temperature, and environment. We give particular suggestions based on your working conditions.

Q: Do you offer specialized back for bearing selection?

A: Our designing group helps with stack calculations, estimate determination, and setup proposals all through your project.

Q: What is commonplace lead time for custom bearings?

A: Standard adjustments require 4-6 weeks. Complex custom plans may require 8-12 weeks depending on measure and determinations.

Contact Us

Ready to discuss your Three-Row Roller Slewing Bearing requirements? Our technical team is available to answer your questions and provide application-specific recommendations. Email us at mia@hgb-bearing.com today.
