Single Row Cross Roller Slewing Bearing - HJ Series

Single Row Cross Roller Slewing Bearing - Precision Solution for Heavy-Duty Rotary Applications

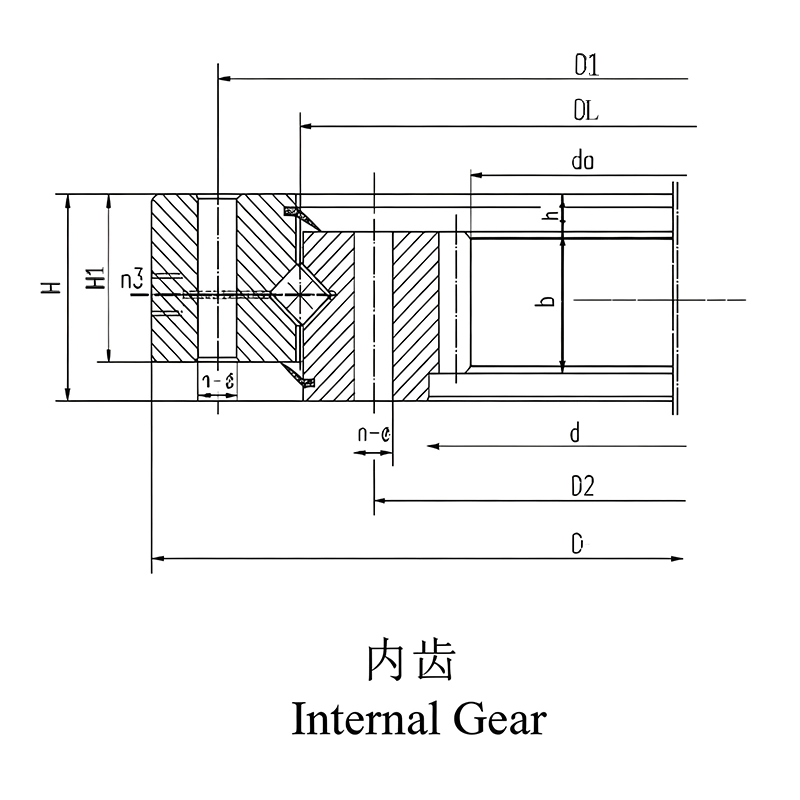

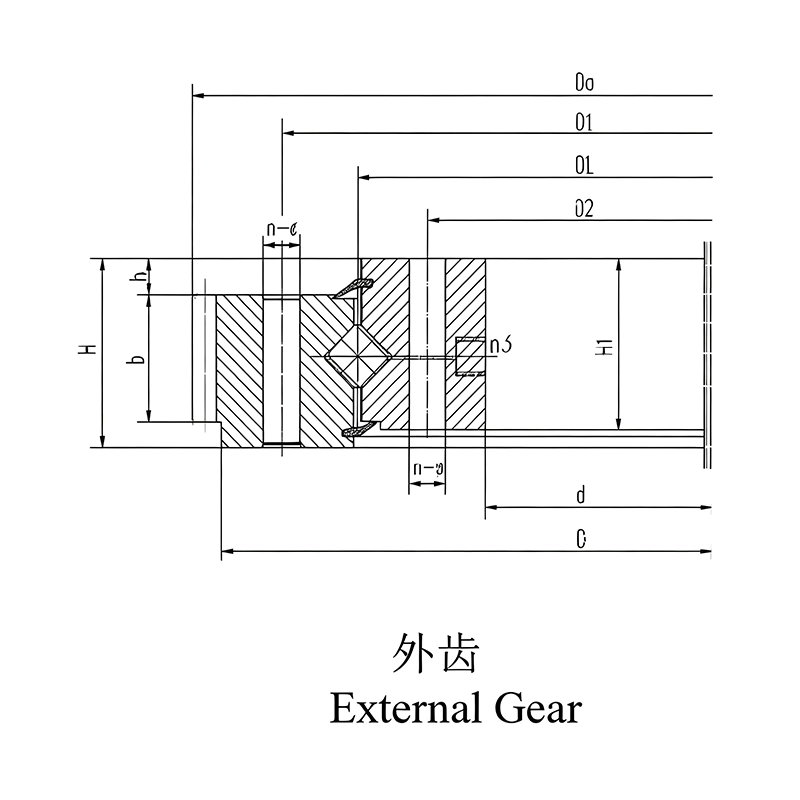

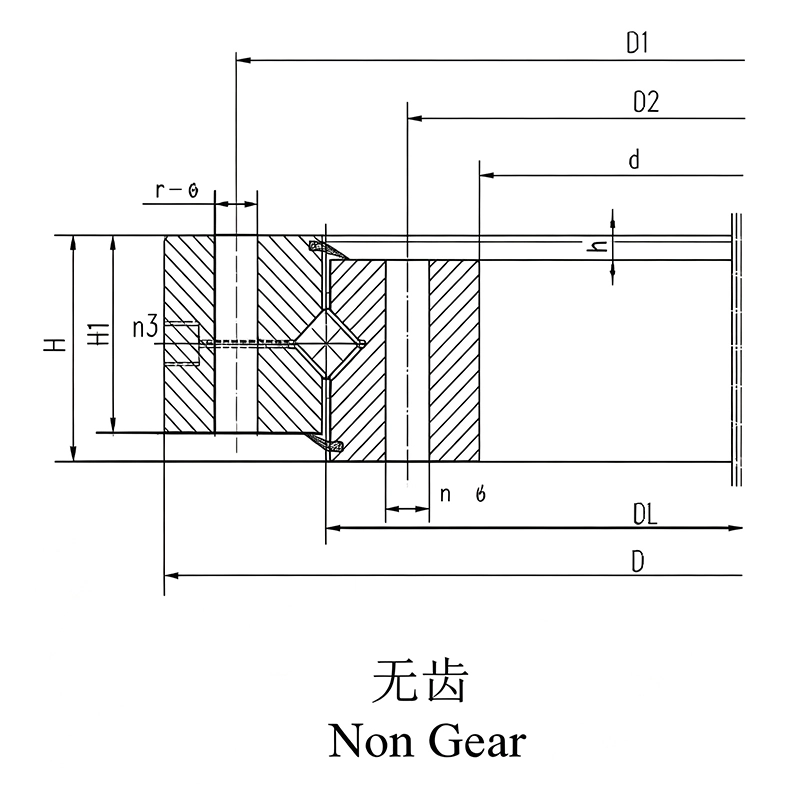

The Single Row Cross Roller Slewing Bearing - HJ Series delivers enterprise-grade rotational performance through its 1:1 crossed roller arrangement and dual-ring integrated structure. Manufactured to handle combined loads including axial forces, radial loads up to high-capacity specifications, and tilting moments simultaneously, this bearing maintains assembly clearances within precision tolerances. Available in external gear, internal gear, and toothless configurations, the HJ series covers diameter ranges from 50mm to 10,000mm with precision grades spanning P0, P6, P5, and P4. The compact design reduces weight by approximately 30% compared to conventional multi-row configurations while maintaining load ratings suitable for demanding industrial applications.

Technical Architecture and Load Distribution Mechanism

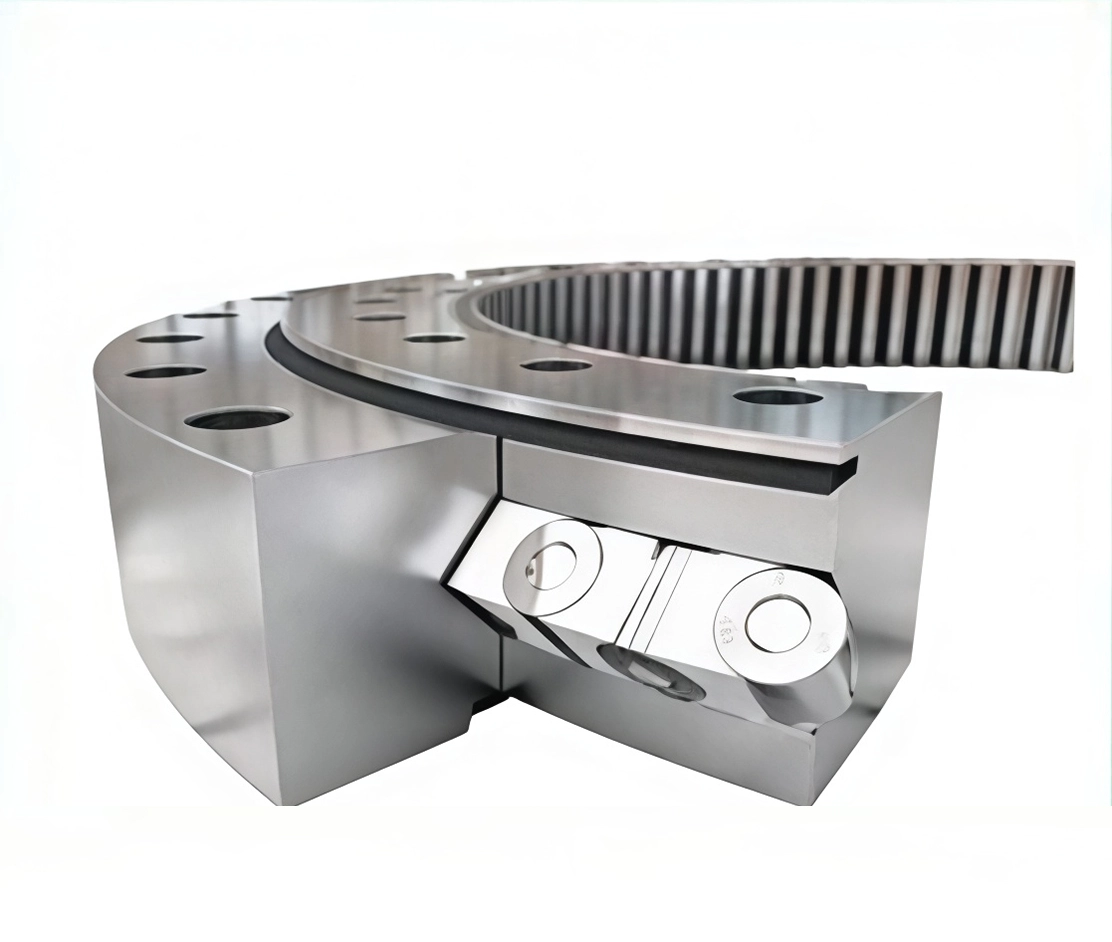

The series HJ-single row crossed roller slewing bearing employs a perpendicular roller arrangement where cylindrical rollers alternate at 90-degree angles within a single raceway. This configuration creates an effective load distribution system. When axial forces apply downward pressure, half the rollers resist the load through their vertical orientation. Simultaneously, radially positioned rollers counteract side forces and moment loads. The dual bearing ring structure integrates mounting surfaces directly into the bearing assembly, eliminating external flanges and reducing installation complexity.

High-grade bearing steel (GCr15 or 42CrMo) undergoes induction hardening to achieve raceway surface hardness between HRC 58-64. This heat treatment penetrates 3-5mm deep, creating a wear-resistant layer while maintaining core toughness. The cross roller slewing bearing design provides 3-4 times greater rigidity than ball-type alternatives due to increased effective bearing span and line contact between rollers and raceways.

Specifications

Core Performance Parameters

Engineering Advantages for Critical Applications

Superior Load-to-Weight Ratio: Single-row bearings have load capabilities equivalent to double-row bearings while weighing 25-35% less. Weight affects fuel consumption and structural constraints in mobile equipment.

Split-ring variations eliminate clearance with controlled preload application for positioning precision down to 0.01mm. Zero-play rotation helps micro-adjustments on precision testing or military systems.

Advanced Sealing: Dusty mining areas and seaside ports use triple-layer labyrinth seals to avoid contamination. Optional elastomeric lip seals protect against water jets and corrosives. This prolongs service life in difficult situations when seal failure causes 60% of premature bearing damage.

Thermal Stability: Raceways retain compressive stress after heat treatment, enhancing fatigue resistance under cyclical loads. Dimensional stability of ±0.05mm throughout operating temperatures is crucial for sustaining gear mesh precision in cross roller slewing bearings with external gears.

Industry-Specific Application Solutions

Your lifting equipment needs shock-resistant Single Row Cross Roller Slewing Bearing - HJ Series for quick acceleration and emergency stopping. Crossed roller slewing rings absorb impact forces and maintain smooth rotation within ±2% speed variation by elastic deformation of roller-raceway contact zones.

Construction equipment in high-vibration situations benefits from the bearing's dampening. The alternating roller design prevents ball bearing hammering under large radial loads by providing continuous support over 360 degrees.

The HJ series delivers repeatability of ±0.03mm over 10,000 cycles for automated positioning systems. This precision helps robotic welding arms, CNC turntables, and satellite tracking antennas where angular accuracy affects product quality and system performance.

Addressing Procurement Challenges with Engineered Solutions

Replacement Compatibility Concerns: Non-OEM component integration creates risk. Your engineering team receives 1:1 technical drawing verification where our engineers compare mounting hole patterns, gear parameters, and load ratings against original specifications. Dimensional reports include coordinate measurement machine (CMM) data confirming ±0.02mm tolerance achievement on critical features.

Uncontrolled Delivery Schedules: Equipment downtime costs average $5,000-$50,000 per day in industrial operations. The In Stock product ship within 7-15 days from stock. Custom setups take 4-6 weeks, depending on intricacy. Semi-finished inventory of common diameter ranges (500-2000mm) enables emergency production acceleration when critical equipment failures occur.

On-Site Measurement & Reverse Engineering: When original drawings are unavailable, our field engineers conduct on-site measurement using laser tracking systems and digital calipers. Data feeds directly into CAD systems for reverse modeling. We analyze wear patterns on failed components to implement design improvements—material upgrades, enhanced heat treatment zones, or optimized lubrication channels—that extend replacement bearing life beyond original equipment specifications.

Manufacturing Process and Quality Control

CNC vertical lathes machine bearing rings with positioning accuracy within 0.005mm. Gear hobbing machines cut tooth profiles to DIN 3967 Grade 6 standards, ensuring smooth meshing and Optimal working clearance. Induction hardening equipment applies controlled heating patterns, creating uniform hardness distribution verified through Rockwell testing at 12 points per raceway.

Coordinate measuring machines inspect 47 critical dimensions on each bearing, including raceway roundness (within 0.01mm), gear pitch deviation (≤0.015mm), and mounting surface flatness (≤0.03mm per 1000mm). Vibration testing under simulated load conditions identifies any manufacturing defects before shipment.

Certification

FAQ

Q: How do I verify the products matches my existing equipment?

A: Provide your current bearing's outer diameter, bolt hole pattern, and gear specifications. Our engineers perform compatibility analysis within 24 hours, confirming dimensional matches and load capacity equivalence.

Q: What maintenance intervals does the bearing require?

A: Re-lubrication every 500 operating hours in clean environments, or 200 hours in dusty conditions. Bolt torque inspection every 1,000 hours prevents loosening under vibration.

Q: Can you customize the bearing for corrosive marine environments?

A: Yes. We apply zinc-rich epoxy coatings and use stainless steel hardware. Sealed grease fittings accept marine-grade lubricants with enhanced water resistance.

Contact Us

Optimize your rotary system performance with the Single Row Cross Roller Slewing Bearing - HJ Series. Send detailed specifications including load calculations, operating conditions, and installation constraints to mia@hgb-bearing.com for application-specific recommendations and quotations.
