How to Order a Custom 011.30.630 Slewing Bearing From China?

Getting a solid 011.30.630 slewing bearing from a foreign source might be intimidating if you are not prepared. The 011.30.630 is a single-row four-point contact ball slewing ring with an external gear cut directly into the outer ring – module 6, 126 teeth, 732 mm outer diameter, unit weight approx. 110 kg. At Heng Guan Bearing, we deal with engineers and OEM purchasers needing this model for cranes, excavators, wind turbines, and large rotating gear. The external gear slewing ring bearing 732mm format gives the easiest field service access of the 630 mm raceway family. The driving pinion is meshed on the outside, and the single-row four-point contact design supports combined axial, radial, and moment stresses in a compact 80 mm height. This article leads you through the ordering process, from the data you need to prepare to the checks you should conduct before putting a deposit, so your import runs successfully.

What Technical Data Should Buyers Provide for an 011.30.630 Slewing Bearing?

Buyers should provide the bore diameter, bolt hole spacing, gear module, raceway hardness requirement, and load direction so that Heng Guan Bearing or any other manufacturer can quote correctly. The 011.30.630 is a common name for an external gear slewing ring bearing in the 732 mm outer diameter series, so checking this size prevents costly mismatches during installation.

Note that the 630 mm raceway family also contains the gearless 010.30.630 and the wide-gear 012.30.630 (module 8, 94 teeth) for higher torque transfer, so the gear specification must be stated explicitly. It is also useful to supply drawings of the mating structure, rotation speed, ambient temperature, and whether the application is stationary or running continually. Buyers replacing existing part numbers should include the previous bearing marks or a picture.

Sharing this data early on with a certified China supplier 011.30.630 allows them to recommend the proper hardening depth, seal type, and grease for your operating environment, leading to fewer modifications later and a shorter route from inquiry to signed design.

How Can Buyers Confirm 011.30.630 Slewing Bearing Compatibility?

Compatibility verification is one of the most overlooked steps when importing a custom 011.30.630 slewing bearing. Start by comparing raceway hardness and gear parameters against your equipment's technical file rather than relying on the part number alone, since brands sometimes reuse similar naming. Ask your supplier for a 2D or 3D drawing for sign-off before production — for this model that means verifying the 732 mm outer diameter, 528 mm bore, 80 mm height, the 696 / 564 mm bolt circles with 24 × φ18 holes, and the external gear tip diameter of approximately 774 mm — and request material certificates for the forged ring, typically 50Mn or 42CrMo steel hardened to 55–62 HRC.

If unsure how to interpret specifications, our engineers can review your machine's manual and cross-check it against the external gear slewing ring bearing 732mm profile we manufacture, and a STEP/IGES model can be supplied for integration checks. Reach our sales engineer directly at mia@hgb-bearing.com with photos for a free compatibility check, helping avoid downtime from a mismatched part after a long shipping lead time.

011.30.630 Slewing Bearing Customization, Inspection, and OEM Quality Control

Once compatibility is confirmed, customization options come into play. Buyers can request modified flange thickness, extra grease nipples, special coating, non-standard bolt patterns, or upgraded precision (P6/P5/P4) to fit legacy equipment, plus corrosion-resistant material grades and dust-duty sealing configurations for harsh sites. A dependable 011.30.630 manufacturer China should offer OEM packaging, laser-engraved logos, and documentation tailored to your brand — and should be able to supply a reverse-engineered replacement from on-site measurements when no original drawings exist.

During production, quality control should include raceway hardness testing (typically 55–62 HRC), hardness depth measurement, CMM dimensional inspection, rotation torque testing, and ultrasonic flaw detection on forged rings, with matrix hardness held in the 229–269 HB range before surface hardening. Heng Guan Bearing follows ISO-aligned inspection protocols from raw forging to final assembly, issuing reports before shipment for full traceability.

Requesting sample photos or a video inspection call before goods leave the factory is recommended for first-time buyers, giving confidence that the 011.30.630 slewing bearing matches the agreed specification.

How Do You Evaluate a China Supplier Before Ordering an 011.30.630 Slewing Bearing?

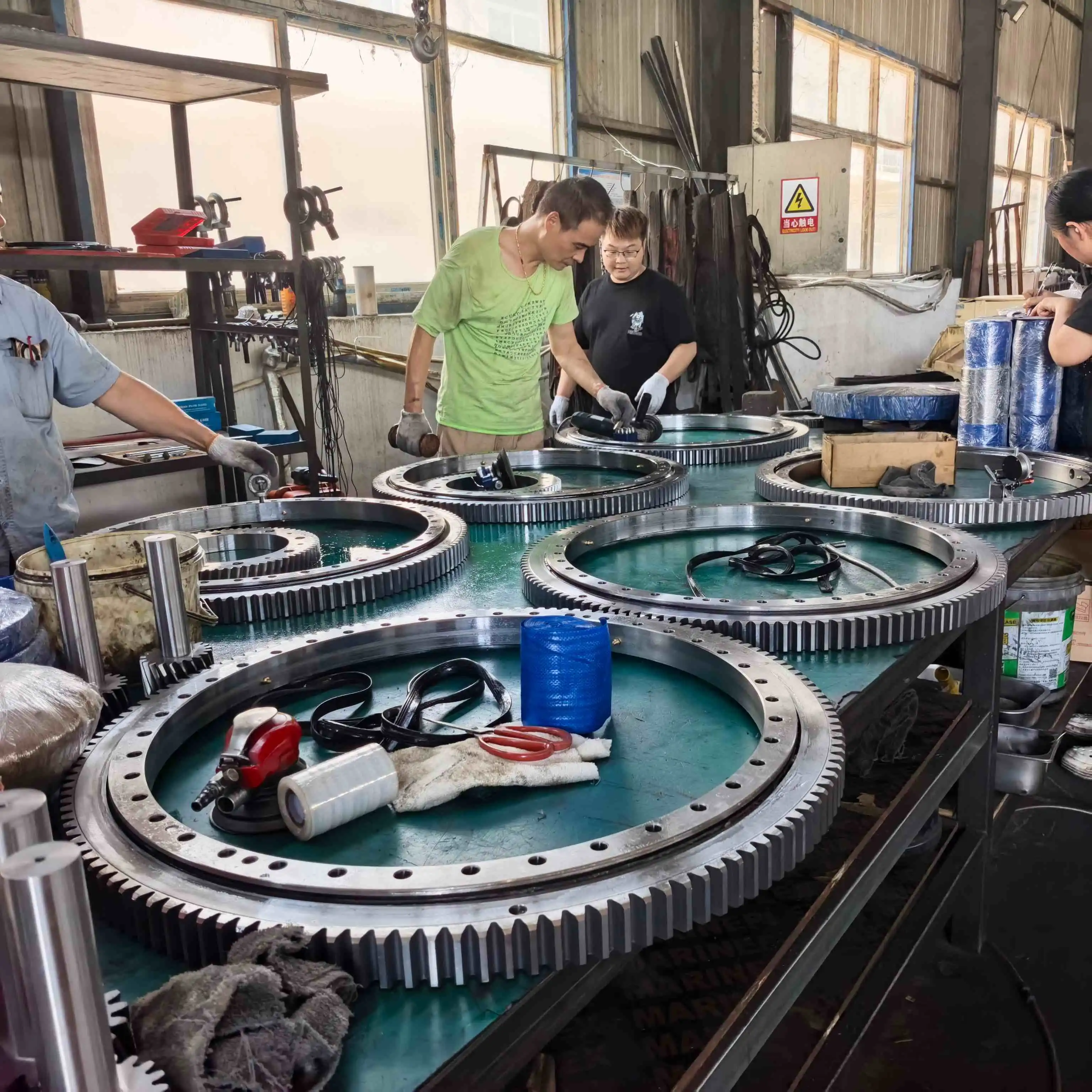

Choosing the right factory matters as much as the specification itself. Buyers should ask for business licenses, export experience, audit reports, and references from customers in similar industries such as construction machinery or wind power. It is wise to confirm whether the 011.30.630 manufacturer in China you're considering actually forges and machines rings in-house, rather than outsourcing, since this affects lead time and consistency — Heng Guan Bearing machines rings up to 10,000 mm in diameter on in-house CNC vertical lathes and controls its own induction hardening.

Lead time is a practical benchmark too: standard 011.30.630 units typically ship in 7–15 days, while customized specifications take 4–6 weeks. Payment terms, warranty coverage, and after-sales support matter just as much, especially for buyers placing repeat orders rather than a single trial shipment. Heng Guan Bearing, based in Luoyang's bearing cluster, welcomes factory visits and video tours so buyers can see forging, heat treatment, and machining firsthand. Comparing suppliers side by side using consistent criteria, rather than price alone, leads to a more successful sourcing relationship for the 011.30.630 slewing bearing.

Conclusion

Ordering a custom 011.30.630 slewing bearing is straightforward once technical data, compatibility, and supplier credibility are confirmed. Heng Guan Bearing combines engineering support with strict quality control — backed by ISO 9001 certification and exports to more than 50 countries — to help buyers source with confidence. From tower crane slewing mechanisms and mobile or crawler cranes to excavator swing systems, piling rigs, aerial work platforms, portal harbor cranes, and radar turntables, the external gear configuration is a proven, service-friendly choice. Reach out and let's build your next project together.

FAQ

Q1: What is the outer diameter of the 011.30.630 slewing bearing?

 A: It's an external gear slewing ring bearing with a 732 mm outer diameter, 528 mm bore, and 80 mm total height.

Q2: Can Heng Guan Bearing customize bolt hole patterns?

 A: Yes, non-standard patterns, flange thickness, precision grades, and coatings can be matched to your equipment.

Q3: What steel grade is used for the raceway rings?

A: Typically forged 50Mn or 42CrMo steel, with raceway hardness of 55–62 HRC after medium-frequency induction hardening.

Q4: How can I verify compatibility before ordering?

A: Send drawings or photos to mia@hgb-bearing.com for a free compatibility review.

Q5: Does the factory provide inspection reports before shipment?

A: Yes, dimensional, hardness, and flaw-detection reports ship with each order.

Q6: How long does production take for this model?

A: Standard units ship in 7–15 days; customized specifications with modified gear or sealing take 4–6 weeks.

Get Your Custom 011.30.630 Slewing Bearing Quote From Heng Guan Today

Ready to move forward? Send your drawings, load data, or old 011.30.630 slewing bearing photos to mia@hgb-bearing.com and our engineering team will respond with a tailored quotation and technical guidance within one business day.
