How to Choose the Best KD 210 Slewing Bearing Manufacturer

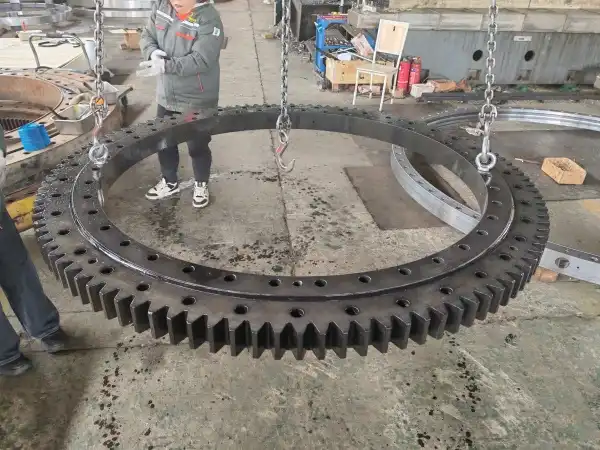

Buying a KD 210 slewing bearing is straightforward. Buying a good one requires study. The ring will be running for thousands of hours with tilting loads; thus, the manufacturer is as important as the design. Luoyang Heng Guan Bearing Technology Co., Ltd., based in Luoyang, a well-known hub of China's bearing industry, designs and builds slewing bearings and slewing rings for demanding equipment. The KD 210 series is a single-row, four-point-contact ball design with a light, flanged profile with raceway diameters ranging from about 414 mm to 1,094 mm. This article covers what to look for, how to interpret performance promises, and how to assess a provider before you purchase.

What Specifications Should You Check Before Buying a KD 210 Slewing Bearing?

Start with the essentials on the design: outer and inner diameter, height, bolt-hole pattern, gear location, ring construction. The KD 210 slewing bearing (also called KD 210 turntable bearing in many catalogs) has to fit perfectly on your mounting surface. So, rather than relying on your memory or a ring that looks similar, compare every measurement to the data on the product page at hgbearings.com. The series is available in two profiles: Type 13 is a flanged, gearless ring of 40 mm overall height. Type 21 is a standard-section ring of 56 mm height and may be provided without gear (230.xx), with external gear (231.xx), or with internal gear (232.xx). Each design is available in a regular bolt-hole count (suffix 013) or a double bolt-hole count (suffix 503) for tougher fastening. Then look for the accuracy rating you need. Heng Guan Bearing has P0, P6, P5, P4, and the higher grade signifies the smoother the turning and the tighter the tolerance in operation. Send us your design, and we will ensure the slewing bearing is appropriate before we start manufacturing.

Pre-Order Specification Checklist

KD 210 Technical Specifications at a Glance

KD 210 Type 13 Models (No Gear, Flanged Profile)

KD 210 Type 21 Models (Standard Bolt-Hole Count)

​​​​​​​

Intermediate sizes are listed on the product page. Double bolt-hole versions (.503) are available on request.

How Do Load Capacity, Precision, and Service Life Affect Slewing Bearing Selection?

These three variables pull each other. The KD 210 slewing bearing supports axial load, radial load, and tilting moment simultaneously. It is the combination of these loads, not the individual values, that dictates the proper size. The four-point contact raceway of the KD 210 slewing bearing takes care of all three in a compact ring – there’s no need for separate axial and radial bearings. Higher accuracy is needed for spinning tables, medical equipment, and automation, whereas heavy sectors like mining and ports are more concerned about raw capacity.

Service life is a result of both: A KD 210 slewing bearing that is running within its rated loads, with correct lubrication, will survive significantly longer than one that is pushed to the limit. When ordering a KD 210 turntable bearing, please provide the actual duty cycle, including shock loads and speeds of rotation. The flanged section also reduces weight by around 30 percent compared to a normal rectangular-section ring, which is useful when swing inertia or platform weight is at a premium. Heng Guan Bearing would then recommend a suitable bearing type (e.g., four-point contact ball or cross cylindrical roller) that is a good balance between load capacity, precision, and cost-effectiveness.

How Selection Factors Interact

KD 210 Slewing Bearing Materials, Gear Types, and Quality Certifications

Material and heat treatment influence durability. Good quality slewing bearing rings are made of alloy steel, forged, and the raceways are hardened for wear resistance. Good manufacturers examine the hardness and dimensions before shipping. What is the steel grade for a KD 210 slewing bearing? What is the raceway treatment? How is the gear cut and finished?

Heng Guan Bearing produces rings from 42CrMo or 50Mn alloy steel and induction-hardens the raceway to 55 to 62 HRC. The rings are machined on CNC vertical lathes, and gear hobbing and hardening are done in-house. The external-gear and internal-gear variants allow for alternative drive configurations. A gearless KD 210 turntable bearing may be used when the rotation is powered by other methods, such as a direct servo drive. Seals should be site-appropriate. The norm is double-lip nitrile.

Labyrinth seals are suitable for dusty mines and cement factories, while FKM seals are suitable for maritime duty. Certificates are also important: ask for inspection reports and any quality-system certificates, and ensure they relate to the plant making your purchase. Heng Guan Bearing has an ISO 9001-certified factory, carries out 100% dimensional inspection and raceway hardness testing before shipping, and issues material certifications and inspection reports with each order. Heng Guan Bearing depends on professional designers, modern processing equipment, and specialized testing methods to assure quality from the root. Write to mia@hgb-bearing.com for material and inspection details.

Documents Worth Requesting

How Can You Evaluate a Slewing Bearing Manufacturer's Engineering and Quality Control?

Don’t look at the price. A reputable manufacturer will employ in-house designers who can customize a standard KD 210 turntable bearing to your specifications, rather than just reselling stock. Ask about manufacturing equipment, testing tools, and what is verified at each step. Heng Guan Bearing produces slewing rings, thrust ball bearings, and non-standard unique-shaped bearings. In addition, the company provides customized and flexible manufacturing to each individual client, including specific seals, changed bolt patterns, surface treatments, and optional FEA verification for non-standard installation.

Inquire whether the provider offers installation instructions and is fast to reply after the sale, since a slewing bearing is only as good as its fit. Each Heng Guan order comes with static load curve charts, bolt torque requirements, installation and maintenance documentation, and CAD files in DWG/STEP format. If the original drawing is no longer accessible, on-site measurement and reverse engineering are offered as well. Ask for samples or references on comparable applications. Compare the clarity of each supplier's replies to technical inquiries. A KD 210 turntable bearing from a clear partner frequently saves time and money during the lifetime of the product.

Supplier Evaluation Checklist

Conclusion

Choose a KD 210 slewing bearing by checking specifications, matching loads and precision, verifying materials, and testing the supplier's quality control. Heng Guan Bearing offers custom engineering and tested production. Send us your needs and build with confidence.

FAQ

Q: Is a KD 210 turntable bearing the same as a KD 210 slewing bearing?

A: Yes, both names describe the same type of ring.

Q: What accuracy grades does Heng Guan Bearing offer?

A: P0, P6, P5, and P4.

Q: Can the gear type be customized?

A: Yes, external, internal, or gearless versions are possible, along with standard (013) or double (503) bolt-hole patterns.

Q: What is the difference between Type 13 and Type 21?

A: Type 13 is a flanged, gearless profile with a 40 mm height for externally driven applications. Type 21 is a standard-section profile with a 56 mm height, available without gear, with external gear, or with an internal gear.

Q: What should I send for a quotation?

A: Your drawing or model code, gear type, quantity, loads, speed, and application details.

Q: Where do I confirm KD 210 details?

A: On the product page at hgbearings.com, or by email.

Ready to Order? Partner With Heng Guan Today

Heng Guan Bearing only offers high-quality products and professional service. Share your drawings, loads, and delivery needs, and our team will recommend a slewing bearing built for your machine. Email mia@hgb-bearing.com today for a fast, competitive quotation.

References

1. Harris TA, Kotzalas MN. Rolling Bearing Analysis, 5th ed. CRC Press; 2006.

2. ISO 281:2007. Rolling bearings: Dynamic load ratings and rating life.

3. ISO 76:2006. Rolling bearings: Static load ratings.

4. ISO 9001:2015. Quality management systems: Requirements.

5. Aguirrebeitia J, et al. General static load-carrying capacity for four contact point slewing bearings. Mechanism and Machine Theory. 2010;45(4).

6. Daidié A, Chaib Z, Ghosn A. 3D simplified finite element analysis of load and contact angle in a slewing ball bearing. Journal of Mechanical Design. 2008;130(8).

7. Potočnik R, et al. Fatigue life of double row slewing ball bearing with irregular geometry. Procedia Engineering. 2010;2(1).
