Custom Slewing Bearing Solutions for Mining and Port Cranes
Every swing of a shovel in a mine, every hoist of a container at a port is based on one part: the slewing bearing. The home of Luoyang Heng Guan Bearing Technology Co., Ltd., is the “Bearing Town” of China, which develops and produces unique slewing bearing solutions for these severe demands. This article covers how to choose, size, build, and maintain a ring for mining and port cranes, from the initial load calculation to the final bolt check.
How Do You Select a Slewing Bearing for Heavy-Duty Mining and Port Cranes?
Start with the catalog, not the loads. A bearing of a crane carries axial force, radial force, and a considerable tilting moment combined. Dust, salt air, and shock loads enhance stress. First, define the working moment, the duty class, the speed, and the mounting space, and then choose a slewing bearing with a safety margin. Heng Guan Bearing can manufacture rings ranging from 20 mm to 10,000 mm in the accuracy categories P0, P6, P5, and P4. A large-diameter slewing bearing 3500mm class ring is typical for huge quay cranes. The 010.75.3550 Slewing Bearing is a suitable reference. A ring the right size up front saves expensive redesign and needless downtime down the road.
| Selection Input | Why It Matters |
|---|---|
| Axial / radial / moment load | Determines raceway and ball or roller sizing |
| Duty class and rotation speed | Affects fatigue life, lubrication, and seal choice |
| Mounting space and height | Limits which structure and section shape can fit |
| Environment (dust, salt, humidity) | Guides sealing and material choices |

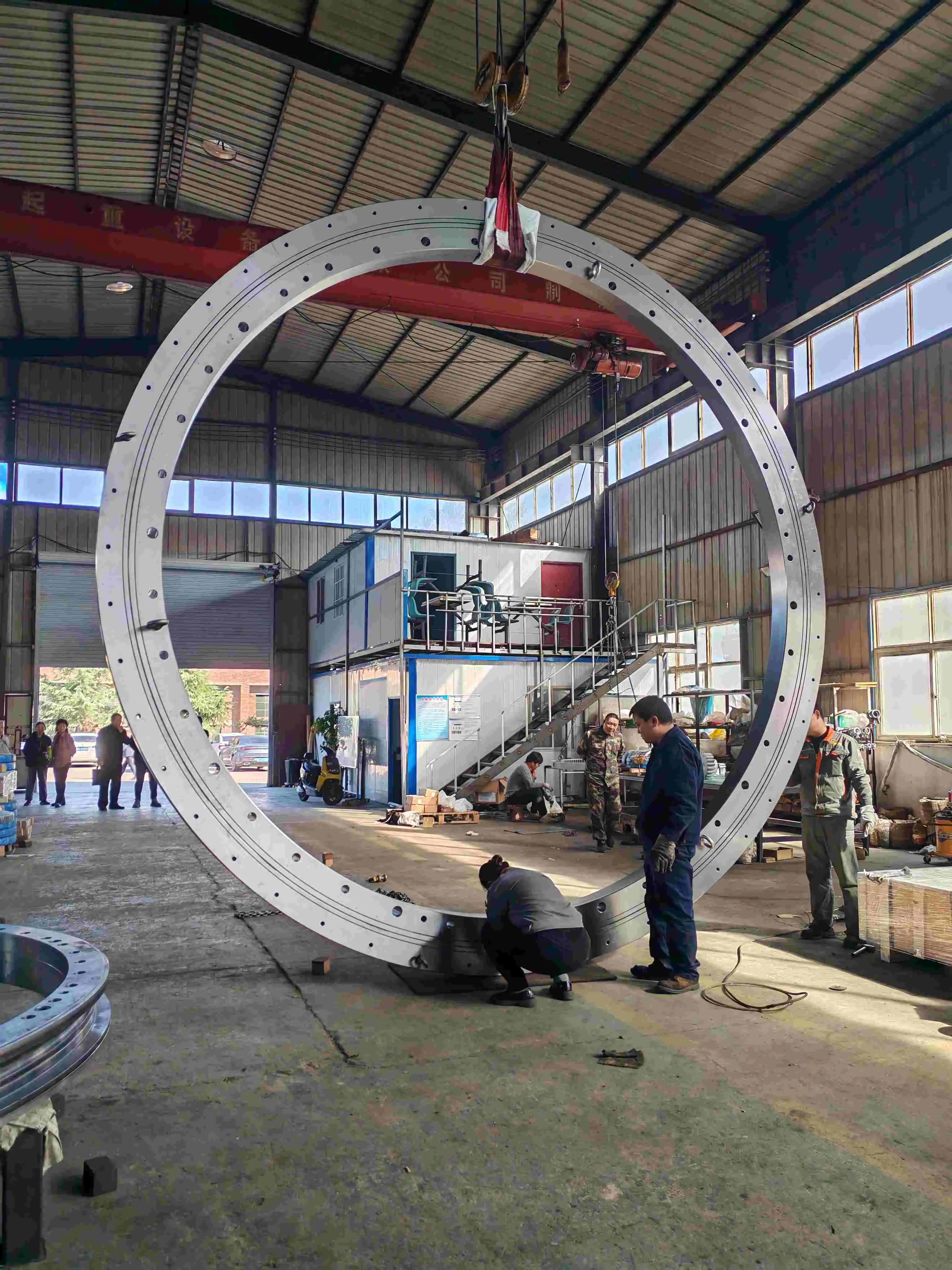

Large Diameter Slewing Bearing 3500mm: Load Capacity and Design Options
The large diameter slewing bearing, 3500 mm ring, distributes enormous loads across a broad raceway, reducing contact stress and stabilizing the crane’s rotation. The 010.75.3550 Slewing Bearing is from this class. It is a single-row, four-point-contact ball design with balls contacting the raceway at four locations, allowing one ring to carry axial force, radial force, and tilting moment simultaneously. The main measurements are shown in the table below. Before buying, please check the complete data, the gear versions, and the hole arrangement on the product page at hgbearings.com.
| Parameter | 010.75.3550 Slewing Bearing |
|---|---|
| Structure | Single-row four-point contact ball |
| Gear type (010 series) | No gear (geared versions available in the same series) |
| Outer diameter (D) | 3776 mm |
| Inner diameter (d) | 3322 mm |
| Height (H) | 174 mm |
| Mounting hole circle diameters | 3686 mm / 3414 mm |
| Mounting holes | 56 × Ø45 mm |
| Lubrication holes | M10×1 |
| Accuracy grades | P0, P6, P5, P4 |
You may tweak gear position, seals, and section form on top of the stock data. A mining crane in a dusty hole requires a different seal than a port crane exposed to humid sea air. Heng Guan Bearing provides customized, flexible manufacturing to optimize each large diameter slewing bearing 3500mm for its equipment. If you want drawings, a full parameter sheet, or a quotation for your own load case, email mia@hgb-bearing.com with your operating data, and our engineers will reply with a fitted proposal.
| Element | Options |
|---|---|
| Gear | External, internal, none |
| Seals | Standard, heavy-duty |
| Accuracy | P0, P6, P5, P4 |
| Section | Flanged, flat |
Which Slewing Bearing Structure Best Handles High Loads and Overturning Moments?
The structure defines the amount of moment that a large diameter slewing bearing 3500mm may take. The single-row four-point contact ball bearing, as with the 010.75.3550 Slewing Bearing, is small and affordable for moderate workloads, while the double-row ball types increase capacity. Cross cylindrical roller designs provide stiffness and accuracy, while three-row cylindrical roller designs provide the largest capacity since each load direction has its own roller. Heng Guan Bearing produces all of them as well as ball-and-roller combinations and thin-wall flange types. Our experts can compare constructions for you. The option is generally a compromise between moment need and available height for a big-diameter slewing bearing 3500mm application.
| Structure Type | Load Capability | Typical Use |
|---|---|---|
| Single-row four-point contact ball | Moderate combined loads, compact footprint | Small and medium cranes, turntables |
| Double-row ball | Medium to high combined loads | Port and mining equipment |
| Cross cylindrical roller | High rigidity and precision | Precision rotation, indexing |
| Three-row cylindrical roller | Highest axial, radial, and moment loads | Large mining and quay cranes |
Quality Standards, Installation Requirements, and Maintenance for Long-Term Reliability
Even a powerful slewing bearing will fail prematurely if placed incorrectly. Install on a level, solid surface. Tighten bolts in a cross pattern to the desired preload. Keep the raceway hardness gap away from the primary stress zone. Dust and moisture are the enemies of any big-diameter slewing bearing 3500mm ring. Check seals often and lubricate on schedule. Heng Guan Bearing depends on professional designers, innovative technology, and specialized testing techniques to control quality at the source. When you acquire the 010.75.3550 Slewing Bearing, ask for inspection records. Contact Us early if anything appears weird, since a little adjustment costs significantly less than unforeseen downtime.
| Task | Timing | Why It Matters |
|---|---|---|
| Bolt torque check | After first run, then periodically | Loose bolts shift the ring under load |
| Greasing | Per duty schedule | Prevents dry running and flushes contaminants |
| Seal and gear inspection | Every service interval | Keeps dust and moisture out of the raceway |
Conclusion
The appropriate slewing bearing means matching load, construction, and quality to your crane. Heng Guan Bearing provides custom design, extensive size coverage, and production testing, from 010.75.3550 slewing bearing to completely customized big-diameter slewing bearing 3500mm rings. Send us your needs immediately, and we will construct the ring your mining or port crane deserves.
FAQ
Q: What size range does Heng Guan Bearing produce?
A: Slewing bearings from 20 mm to 10,000 mm.
Q: Which accuracy grades are offered?
A: P0, P6, P5, and P4.
Q: Which structure suits extreme overturning moments?
A: Three-row cylindrical roller designs.
Q: Can a large diameter slewing bearing 3500mm ring be customized?
A: Yes, the gear, seals, and section can be tailored to your machine.
Q: What are the core dimensions of the 010.75.3550 Slewing Bearing?
A: Outer diameter 3776 mm, inner diameter 3322 mm, and height 174 mm; confirm full data on the product page at hgbearings.com or by email.
Ready to Power Your Cranes? Contact Heng Guan Today
Heng Guan Bearing only offers high-quality products and professional service. Tell us your load, size, and delivery needs, and our team will propose a custom slewing bearing built around them. Email mia@hgb-bearing.com today, share your drawings or operating data, and receive a clear, competitive quotation quickly.
References
1. Harris TA, Kotzalas MN. Rolling Bearing Analysis, 5th ed. CRC Press; 2006.
2. ISO 281:2007. Rolling bearings: Dynamic load ratings and rating life.
3. ISO 76:2006. Rolling bearings: Static load ratings.
4. Aguirrebeitia J, et al. General static load-carrying capacity for four contact point slewing bearings. Mechanism and Machine Theory. 2010;45(4).
5. Daidié A, Chaib Z, Ghosn A. 3D simplified finite element analysis of load and contact angle in a slewing ball bearing. Journal of Mechanical Design. 2008;130(8).
6. Potočnik R, et al. Fatigue life of double row slewing ball bearing with irregular geometry. Procedia Engineering. 2010;2(1).
