Tower Crane Slewing Ring: Professional Heavy-Duty Rotating Solution

When you're selecting components for tower crane systems, choosing the right Tower Crane Slewing Ring makes all the difference in operational efficiency and safety. As a core rotating component, the slewing ring carries the entire upper structure load—including boom, counterarm, and lifted materials—while enabling smooth 360-degree rotation. At Luoyang Heng Guan Bearing Technology, we specialize in manufacturing high-precision slewing rings designed specifically for demanding tower crane applications. Our product solutions combine proven engineering with strict quality control to deliver reliable performance in construction, infrastructure, and industrial lifting operations worldwide.

Product Details

Our slewing rings form the critical rotational interface between the tower crane's mast and its upper structure. Their design handles combined loads—radial and axial forces, along with tilting moments—simultaneously, ensuring stable operation even at maximum lifting capacity.

We offer three primary structural configurations:

l Single-Row Four-Point Contact Ball Type: A compact design ideal for moderate loads, offering excellent rotational precision.

l Double-Row Different-Diameter Ball Type: Provides enhanced load distribution for heavier lifting requirements.

l Three-Row Roller Type: Delivers maximum load capacity for heavy-duty and oversized tower cranes.

Each configuration uses high-purity GCr15SiMn bearing steel for rolling elements, paired with 42CrMo or 50Mn alloy steel for the rings. This material combination delivers exceptional wear resistance and dimensional stability across the temperature fluctuations common on construction sites.

The integrated sealing system utilizes imported nitrile rubber or fluororubber, effectively protecting internal components from dust, moisture, and contamination. This significantly extends service life in demanding outdoor environments.

Why Choose Us?

You benefit from partnering with a manufacturer that understands both the engineering challenges and practical realities of tower crane operation:

l Manufacturing Precision: Our CNC vertical lathes, quenching machines, and Gear cutting equipment maintain tight tolerances for diameters from 800mm to 10,000mm. We offer precision grades from P0 (standard) to P4 (ultra-precision) to match your application needs.

l Customization Capability: We don't just supply standard catalog items. Our engineering team provides technical consultation, custom design based on your specifications, and reverse engineering services for replacement parts—even without original 3D drawings.

l Quality Traceability: ISO 9001 certification and RoHS compliance ensure every bearing meets international standards. Every production stage—from raw material inspection to final testing—features documented quality checkpoints.

l Global Experience: With products operating in over 50 countries, including demanding markets like Germany, the United States, and Australia, we've proven our solutions perform across diverse regulatory environments and operating conditions.

l Technical Support: Our team of over 50 includes experienced engineers who provide selection guidance, installation support, and troubleshooting assistance throughout your equipment's entire lifecycle.

Technical Specifications

Testing & Certification

Each bearing undergoes a rigorous testing protocol before shipment:

l Dimensional inspection using coordinate measuring machines (CMM)

l Raceway geometry verification ensuring contact pattern uniformity

l Rotation torque measurement confirming smooth operation

l Non-destructive testing (NDT) for material integrity verification

Our facility maintains ISO 9001:2015 certification with regular third-party audits. Products comply with DIN, ISO, and GB standards and are RoHS compliant for restricted substances.

Features and Benefits

l Four-Point Contact Design: Load distribution across multiple contact points reduces stress concentration, extending bearing life by 30-40% compared to conventional designs.

l Integrated Gear Options: Factory-machined external or internal gears eliminate additional coupling components, reducing installation complexity and potential failure points.

l Advanced Heat Treatment: Controlled quenching and hardening processes achieve optimal hardness gradients—resulting in hard wear surfaces with tough, impact-resistant cores.

l Precision Raceway Geometry: CNC-ground raceways minimize friction and vibration, enabling smoother rotation with lower drive torque, which reduces energy consumption and motor wear.

l Robust Sealing System: Multi-lip seals with lubricant retention channels effectively retain grease while blocking contaminants, allowing for extended relubrication intervals.

l Mounting Adaptability: Standardized bolt hole patterns compatible with major tower crane manufacturers simplify retrofits and overhauls.

Applications

Heng Guan slewing rings deliver reliable performance across all major tower crane configurations:

l Topless Tower Cranes: Provide compact, high-stability rotation for space-constrained urban construction sites.

l Luffing Jib Cranes: Enable smooth variable-radius operation in congested environments with precise load control.

l Internal Climbing Cranes: Support safe, reliable advancement in high-rise construction with consistent performance under changing load dynamics.

l High-Speed Tower Cranes: Feature low-friction design for rapid cycling applications, maximizing operational efficiency.

l Wind Turbine Installation Cranes: Engineered for heavy lifting in exposed conditions, handling significant variable and dynamic loads.

l Bridge Construction Cranes: Ensure precise load positioning and long-span stability for critical infrastructure projects.

Beyond tower cranes, the same proven reliability extends to portal cranes, ship-to-shore cranes, and other specialized heavy-lift equipment where dependable rotation under extreme load is paramount.

Installation Guide

Proper installation is critical for optimal performance and extended service life. Follow these key steps:

1. Surface Preparation: Thoroughly clean all mounting surfaces and verify that flatness is within the tolerances specified in the supplied drawings.

2. Alignment Check: Ensure that both axial and radial runout are within specified limits before proceeding to bolt tightening.

3. Bolt Torquing: Apply the specified preload torque using calibrated torque wrenches. Tighten bolts in a star (cross) pattern sequence to ensure even clamping force.

4. Lubrication: Fill all grease ports with the recommended lubricant before the initial rotation of the bearing.

5. Initial Rotation Test: Manually rotate the slewing ring through a full 360-degree range to verify smooth, unrestricted movement without binding.

6. Load Testing: Gradually increase the load to the rated capacity while monitoring for any abnormal noise, vibration, or irregular rotation.

We provide comprehensive installation drawings and our technical support team is available for consultation throughout your installation and commissioning process.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

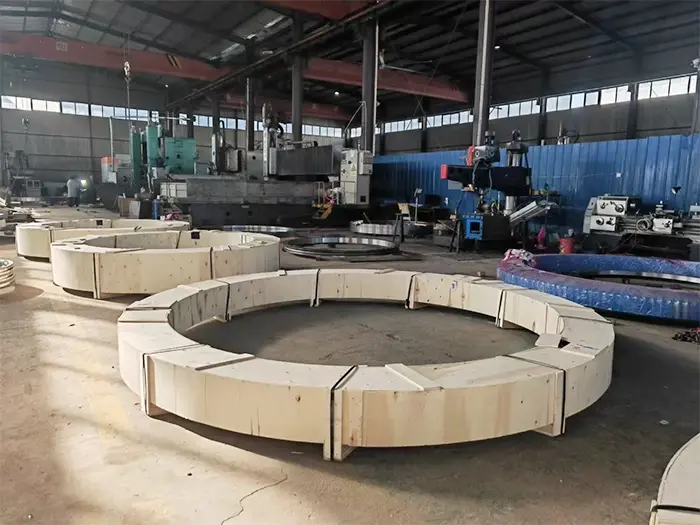

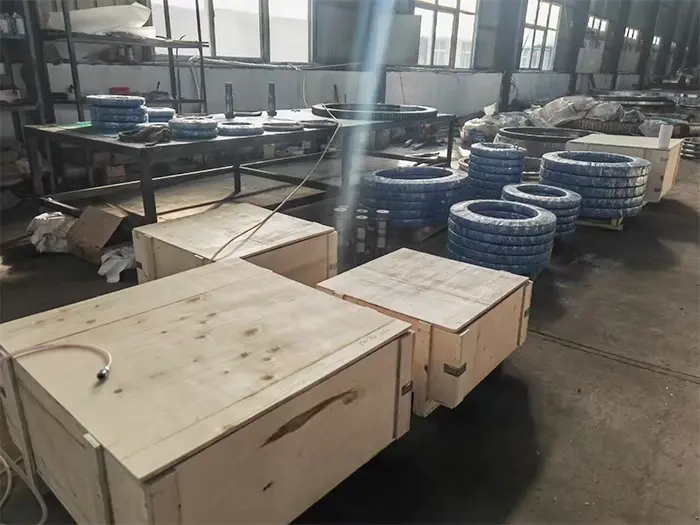

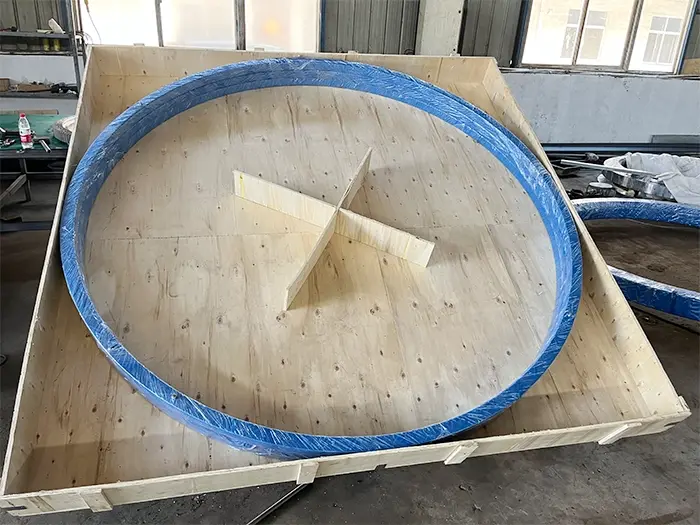

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).
