RKS.222500101001 Slewing Bearings

RKS.222500101001 Customized Crossed Cylindrical Roller Slewing Bearing – External Gear Solution for High-Precision Rotation

Luoyang Heng Guan Bearing Technology presents the RKS.222500101001 Slewing Bearings, a precision-engineered crossed cylindrical roller solution designed for demanding rotary applications. With over 30 years of bearing manufacturing expertise and ISO9001 certification, we specialize in high-precision slewing bearings from 50-10000mm diameter across P0, P6, P5, and P4 grades. This customized external-gear model features a 823mm mean raceway diameter, 715×979×100mm envelope (28.15"×38.54"×3.94"), 180kg net weight, and verified load ratings of 558kN dynamic/2330kN static capacity. Our engineering team of 50+ specialists delivers SKF-compatible interchange solutions with US distribution references (Applied #101467697, mrosupply #2066338) at factory-direct pricing, backed by rigorous coordinate measuring and vibration testing throughout production.

Technical Specifications of the 222500101001 Crossed Roller Bearing

The RKS 222500101001 delivers exceptional performance through its 90-degree crossed roller architecture. Each roller simultaneously manages axial thrust, radial load, and tilting moment with minimal rotational friction. The external module-10 gear (94 teeth on 940mm pitch circle) enables direct pinion drive integration for crane slewing mechanisms and excavator rotary platforms.

This single row crossed roller slewing bearing external gear model incorporates GCr15 cylindrical rollers between C45E/50Mn/42CrMo4 hardened raceways, sealed with NBR double-lip protection against contaminant ingress. The unique unequally-spaced 28-bolt pattern (22mm through-holes on 893mm outer/753mm inner circles) provides optimized mounting compliance for OEM applications.

Key Advantages of Crossed Roller Turntable Bearing 715x979x100

High Rigidity in Compact Envelope: The crossed roller configuration delivers superior stiffness compared to ball-type slew rings. You gain multi-directional load capacity without increasing bearing height – critical when vertical space constrains your design.

US Distribution Compatibility: This SKF customized crossed cylindrical roller slewing bearing external gear model directly interchanges with Applied Item #101467697 and mrosupply SKU 2066338 (listed at USD 15,907.23). As a China manufacturer, we supply identical dimensional standards at factory-direct pricing, typically 40-60% below US distributor rates.

Precision Bolt Pattern for Drop-In Replacement: The unequally-spaced 28-hole mounting pattern matches OEM specifications exactly. You receive a drilling template with each bearing to ensure perfect alignment during installation, eliminating field modification and reducing assembly time.

Verified Load Data: Both dynamic (558kN) and static (2330kN) ratings are dual-source verified against SKF catalogue data and bearing specification databases. This gives your engineering team confidence when calculating safety factors for crane slewing bearing crossed roller applications or excavator rotary bearing crossed roller installations.

Weight Transparency: We document net weight (180kg) separately from shipping weight (~197kg with export crate). This clarifies payload calculations and prevents installation surprises when comparing against the 434.31 lb US distribution listing.

Fast Delivery with MOQ 1: Standard models ship within 2-3 days from our Luoyang facility. We maintain inventory of high-demand sizes and support single-piece orders, unlike distributors requiring bulk minimums.

Application Areas for the RKS.222500101001 External Gear Crossed Roller Bearing

Crane & Excavator Rotation Systems

The RKS.222500101001 Slewing Bearings crossed roller turntable bearing excels in crane slewing bearing crossed roller and excavator rotary bearing crossed roller applications. The 2330kN static load rating handles boom-down parking loads, while the external gear withstands peak tooth forces of 136kN during swing acceleration. Heavy equipment service teams choose this cross roller slewing ring bearing with outer gears for predictable lifecycle and field replaceability.

Industrial Robot Joints & Rotary Tables

For industrial robot slewing bearing crossed roller and precision rotary table slewing bearing crossed roller installations, the 90-degree roller orientation provides the repeatable positioning accuracy automation demands. You achieve ±0.02mm runout over 360° rotation, essential for welding robots and five-axis machining centers where tool path precision determines part quality.

Medical Imaging Equipment

Medical device slewing bearing crossed roller applications in CT scanners and MRI gantries require whisper-quiet, smooth rotation in controlled environments. The sealed long life crossed roller slewing bearing design with NBR double-lip protection prevents particle generation, meeting stringent cleanroom standards while supporting 200-300kg patient loads through thousands of imaging cycles.

Solar Tracking & Wind Energy

Solar tracker crossed roller bearing and wind turbine yaw crossed roller bearing installations subject bearings to continuous outdoor exposure. The C45E ring material accepts protective surface treatments, and the high-stiffness design minimizes deflection under wind loading. You reduce maintenance intervals in remote installations where downtime costs escalate quickly.

Aerial Work Platforms

The 100mm height envelope makes this aerial work platform slewing bearing ideal for boom lifts where vertical space directly impacts working height specifications. The compact single row crossed roller slewing bearing external gear configuration delivers 360° rotation without sacrificing lift capacity or platform stability.

US Aftermarket Replacement Programs

As US distributors list this model with established part numbers (Applied #101467697, mrosupply #2066338), aftermarket buyers gain supply chain confidence. We provide the RKS.222500101001 replacement / interchange / equivalent / cross reference with full dimensional certification, including the critical unequally-spaced bolt pattern that ensures compatibility with existing mounting structures.

Manufacturing Excellence and Quality Control

Our Luoyang facility operates advanced CNC vertical lathes, CNC quenching machines, and CNC gear shapers to maintain tight tolerances across the 979mm outside diameter. Every customized crossed roller slewing ring bearing undergoes coordinate measuring machine verification of raceway geometry and vibration testing to ISO standards.

The heat treatment process creates 55-62 HRC surface hardness on raceways while maintaining core ductility for shock absorption. We achieve P5 and P4 precision grades when your application demands enhanced rotational accuracy. Full material traceability from raw steel through final inspection ensures RoHS compliance and meets international bearing standards.

Our gear cutting department machines the module-10 external teeth with 11mm profile shift to optimize tooth contact patterns. Each gear undergoes tooth force validation to confirm the specified 74kN normal / 136kN maximum loading capacity before shipment.

Installation Guidance and Technical Support

Mounting Surface Preparation: Machine mounting surfaces flat within 0.05mm over the bolt circle diameter. Clean all surfaces thoroughly and apply a thin rust-preventive oil layer before positioning the bearing. Align the S-mark (soft spot in the hardening zone) to the minimum load sector of your application.

Bolt Tightening Procedure: Use grade 10.9 or 12.9 high-strength bolts. Apply the specified preload torque in a star pattern across all 28 mounting positions (both inner and outer rings). Re-torque after initial 50 hours of operation to compensate for initial settling.

Lubrication Protocol: Fill the lubrication grooves with lithium-based NLGI Grade 2 grease before first operation. Establish a 100-hour re-lubrication schedule for raceway maintenance and 50-hour intervals for the external gear when operating in dusty environments. Our engineering team can recommend automatic lubrication systems for continuous-duty installations.

Clearance Measurement: Monitor axial and radial clearance every 500 operating hours. If measured clearance exceeds 1.5× the initial factory specification, contact our technical team to assess remaining service life and plan replacement.

We provide CAD drawings, 3D models, and installation templates with every order. Our 50+ person engineering team offers 24-hour response for technical consultation, helping you optimize bearing selection for your specific load conditions and duty cycles.

Interchangeability and Cross-Reference Information

The RKS.222500101001 slewing bearing / slewing ring bearing / turntable bearing directly replaces SKF RKS.222500101001 and LILY LRKS.222500101001. For US procurement, reference Applied Item #101467697 (UPC 7316570481006) or mrosupply SKU 2066338 when requesting quotations.

Adjacent size alternatives include the no-gear version RKS.223475101001 (same dimensional band) and nearby models RKS.221310101001 / RKS.221300101001. Our engineering team confirms interchangeability within 24 hours using your existing mounting dimensions and load specifications. We do not provide 3D CAD services but can map your old product dimensions to our manufacturing standards for personalized non-standard customization.

Download the RKS.222500101001 datasheet PDF and technical drawing from our website, or contact mia@hgb-bearing.com with your application details for a detailed interchange analysis and factory-direct pricing comparison against distributor quotes.

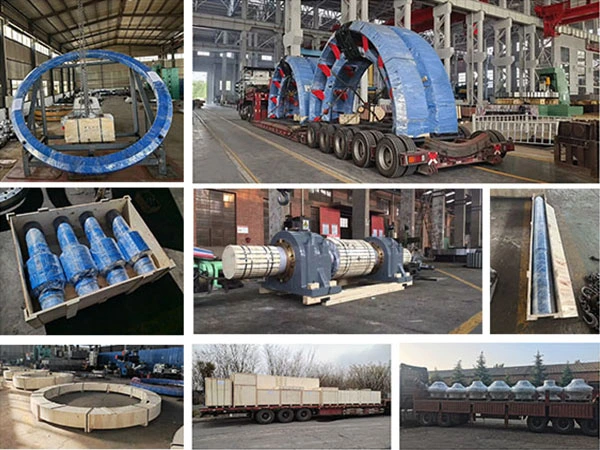

Packaging and Global Shipping

Each RKS.222500101001 slewing ring bearing ships in a custom wooden crate with moisture barrier protection and anti-corrosion wrapping. We clearly mark handling instructions and center of gravity locations for safe lifting. Export packaging adds approximately 17kg to the 180kg net weight, bringing total shipping weight to ~197kg (consistent with the 434.31 lb US distribution listing).

Our logistics team coordinates FOB shipment from Chinese ports to worldwide destinations. We've supplied the RKS.222500101001 979x715x100mm model to customers across 50+ countries including the United States, Germany, United Kingdom, Italy, Turkey, Russia, Austria, Norway, Australia, Mexico, Malaysia, South Africa, and throughout the Middle East. Standard lead time is 2-3 days for in-stock items, with ocean freight transit typically requiring 3-4 weeks to US and European ports.

FAQ

Q: What is the RKS.222500101001?

A: The RKS.222500101001 is a customized crossed cylindrical roller slewing bearing with external gear from the SKF RKS series. It features a 823mm mean raceway diameter, 715mm bore, 979mm outside diameter, 100mm height, and weighs 180kg net. The crossed roller design simultaneously handles axial, radial, and tilting moment loads in a compact envelope.

Q: What are the complete dimensions of the 222500101001?

A: Bore 715mm (28.15 in), outside diameter 979mm (38.54 in), total height 100mm (3.94 in), net weight 180kg (397 lb). The external gear has a 940mm pitch circle, module 10, 94 teeth, with 11mm/1.5mm profile shift. Mounting uses 28×22mm through-holes on 893mm (outer) and 753mm (inner) circles, both unequally spaced.

Q: What load capacity does the RKS 222500101001 provide?

A: Dynamic axial load rating C = 558kN, static axial load rating C0 = 2330kN (verified against SKF catalogue and bearing databases). The 90-degree crossed roller architecture carries combined axial, radial, and tilting moment loads simultaneously. Permissible gear tooth forces reach 74kN normal / 136kN maximum.

Q: Can I buy the RKS.222500101001 from US distributors?

A: Yes. Applied Bearing lists it as Item #101467697 (UPC 7316570481006), and mrosupply carries SKU 2066338 at USD 15,907.23. As the factory, we supply the identical SKF-compatible bearing with full dimensional certification at significantly lower pricing – typically 40-60% below US distribution rates.

Q: Is the RKS.222500101001 in stock for immediate shipment?

A: Standard models ship within 2-3 days from our Luoyang facility (mrosupply lists 1-day availability in the US market). We support MOQ of 1 piece and maintain inventory of high-demand sizes. Contact mia@hgb-bearing.com with your required delivery date for current stock status and expedited shipping options.

Q: How does this bearing compare to ball-type slewing rings?

A: The crossed roller design provides 2-3× higher rigidity than four-point contact ball bearings of similar size. You gain better resistance to tilting moments and more predictable load distribution. However, ball bearings offer higher speed capability. For crane and excavator applications operating below 50 RPM, the crossed roller configuration delivers superior performance and longer service life.
