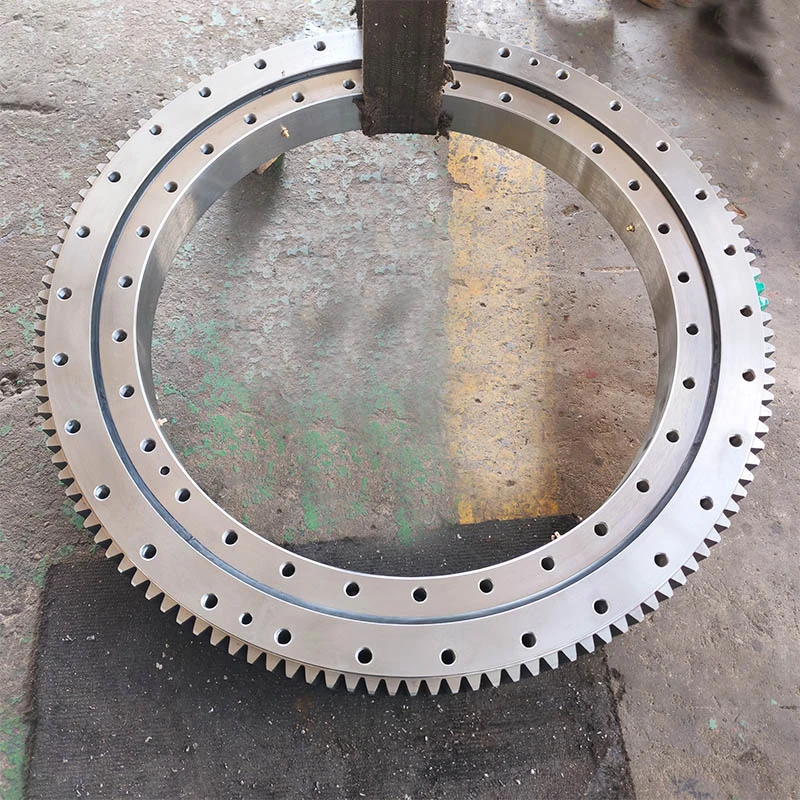

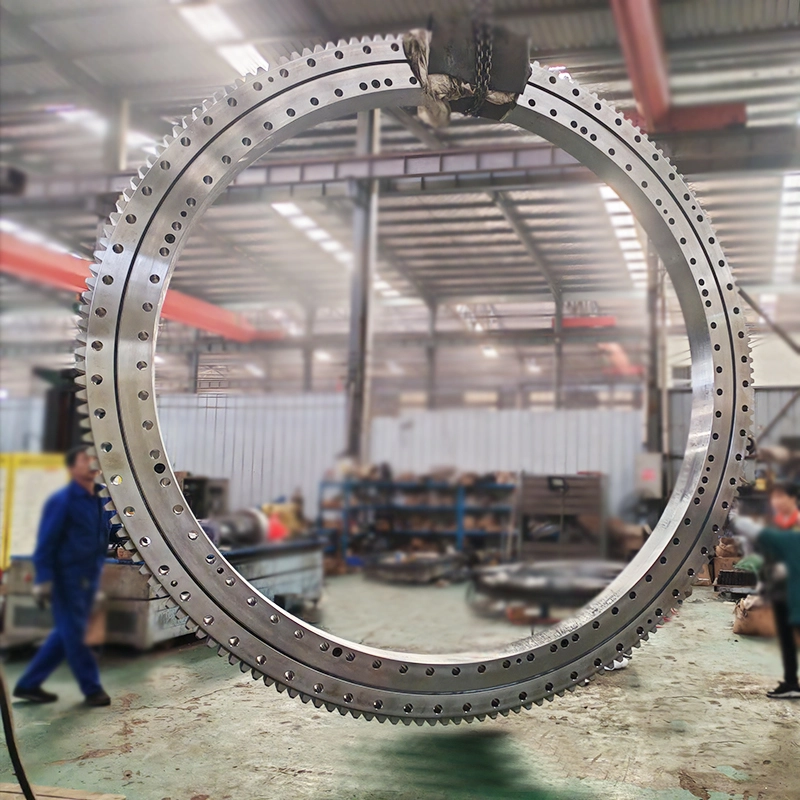

Concrete Placer Slewing Bearing – Heavy-Duty Rotational Solution for Concrete Placement Equipment

When your concrete placing boom needs to pivot smoothly under extreme loads, our concrete placer Slewing Bearing delivers the precision and durability you require. Manufactured by Luoyang Hengguan Bearing Technology, this heavy-duty rotational structure supports 360° rotation while withstanding large axial, radial and tilting moment loads. Our engineering team draws on over 20 years of professional bearing experience to supply products with outer diameters ranging from 50mm to 10,000mm, including precision grades P0, P6, P5 and P4. Made of Forged alloy steel with induction-hardened raceways (HRC 55-62), these bearings adopt professional sealing systems to prevent concrete dust and moisture ingress, ensuring reliable performance in high-rise construction, bridge engineering and tunnel projects where downtime brings huge hourly economic losses.

Concrete Placer Slewing Bearing Details

Our product acts as the core connecting component between the equipment’s lower bolster structure and the upper articulating boom. It enables smooth, jerk-free rotation, which is essential for accurate concrete placement and operator safety.

Core Structure

The single-row four-point contact ball structure delivers high precision and a compact design. The bearing is equipped with a double-lip sealing structure to prevent abrasive dust ingress. Meanwhile, customized internal clearance (0.02–0.1 mm axial play) ensures stable operation under dynamic load fluctuations.

Material & Treatment

We adopt high-grade 42CrMo or 50Mn forged alloy steel with induction-hardened raceways. Surface treatments include zinc spraying and epoxy coating, providing effective anti-corrosion protection in alkaline concrete environments.

Load Capacity

Designed for long-reach booms (up to 60+ meters), our bearings resist high tilting moments and eccentric load unbalance during high-output concrete discharging operations.

Why Choose Us

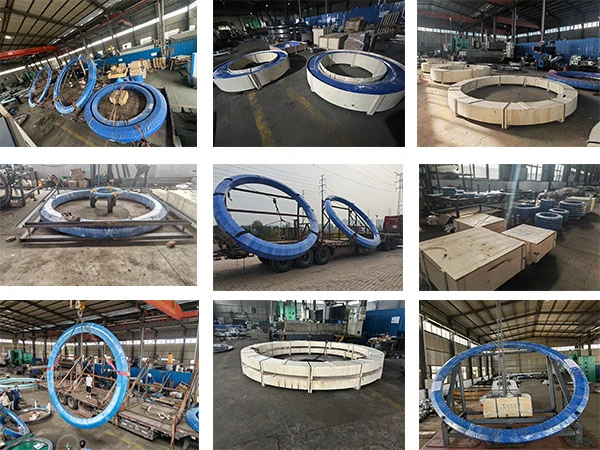

​​​​Manufacturing ExpertiseLocated in Luoyang, China’s core bearing manufacturing base, our 50+ member R&D and production team operates ISO 9001 certified workshops equipped with CNC vertical lathes, CNC quenching machines and large Gear hobbing equipment.

Precision RangeWe produce slewing bearings ranging from Ø50mm to Ø10,000mm in four precision grades (P0/P6/P5/P4), complying with international standards including ISO, DIN and JB/T 2300.

Custom EngineeringWe offer custom solutions for non-standard dimensions, special gear configurations (internal / external gear), and extreme working conditions. Our team provides professional technical consultation, product design and reverse engineering mapping, with no 3D drawings required.

Global Track RecordOur products are operating in more than 50 countries across Europe, North America, the Middle East and Southeast Asia. We support OEM/ODM cooperation and maintain high compatibility with mainstream concrete machinery brands.

​​​​​​​

Features and Benefits

High Tilting Moment Capacity

The placing boom generates massive loads when fully extended. Our four-point contact ball structure distributes stress evenly, preventing raceway deformation and premature wear.

Integrated Sealing Protection

Concrete construction environments expose bearings to concrete dust, water splash and alkaline substances. Double-lip sealing blocks external contaminants effectively, reducing maintenance frequency and preventing unexpected breakdowns.

Induction-Hardened Raceways

Different from through-hardened solutions, our professional induction hardening process forms a hard surface (HRC 55-62) while maintaining a tough core. This structure absorbs impact loads from dynamic pressure fluctuations and avoids cracking.

Compact Footprint

The single-row structure reduces overall height compared with double-row designs. It saves valuable installation space for the slewing mounting platform of concrete placing booms.

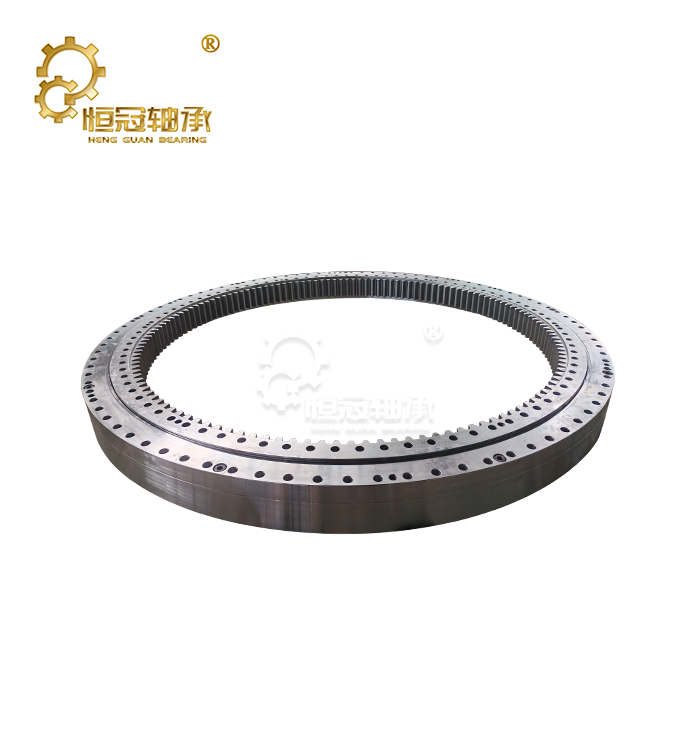

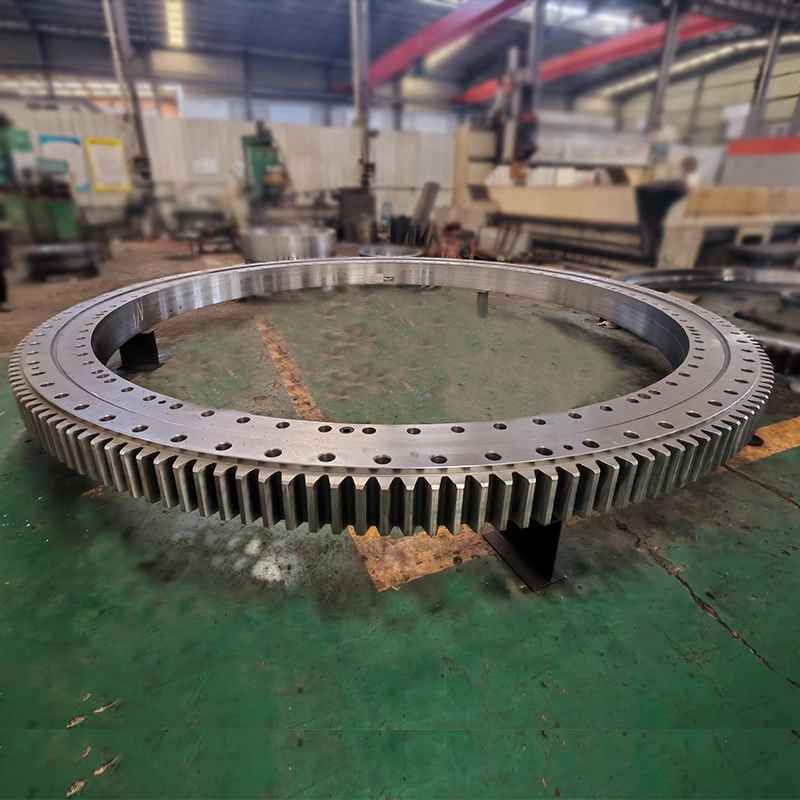

Customizable Gear Geometry

Internal or external gear teeth can be directly machined on bearing rings. It eliminates the need for separate gear connectors, simplifies the drivetrain structure and reduces potential failure points.

Applications

High-Rise Construction:

Stationary placing booms rely on our bearings to handle intense vibration and leverage when pumping concrete vertically over 300 meters. The bearing's tilting moment capacity prevents structural fatigue during continuous operation.

Bridge Infrastructure Projects:

Specialized distributors use our bearings to enable precise pouring across expansive deck areas. Surface coatings resist saltwater corrosion in coastal bridge construction, while robust sealing blocks windborne debris.

Tunnel and Hydroelectric Dams:

Compact, truck-mounted placing units operate in confined, high-humidity spaces. Our bearings maintain reliability despite alkaline chemical exposure from wet concrete and limited ventilation.

Precast Concrete Plants:

Rotating mold systems and automated pouring stations depend on smooth, repeatable motion. Controlled axial clearances ensure consistent concrete distribution across complex mold geometries.

Testing & Certification

Every concrete placer slewing bearing undergoes rigorous inspection using coordinate measuring machines, vibration testers, and load cycle simulators. Our quality system ensures:

· Dimensional Accuracy: Verified to ISO tolerance standards

· Material Traceability: Full documentation from raw steel to finished product

· Load Testing: Simulated duty cycles validate rated capacity

· ISO 9001 Certification: Documented process control at every manufacturing stage

· RoHS Compliance: Environmental safety for global markets

Installation Guide

Pre-Installation:

1. Clean mounting surfaces to remove concrete residue, rust, or paint.

2. Verify bolt hole alignment between bearing and support structure.

3. Inspect sealing surfaces for damage that could compromise dust protection.

Mounting Procedure:

4. Position bearing on lower support flange, ensuring even contact.

5. Apply thread-locking compound to mounting bolts (ISO grade 10.9 minimum).

6. Tighten bolts in a star pattern to specified torque (consult installation drawing).

7. Verify axial clearance using dial indicators before connecting upper boom structure.

Post-Installation:

8. Rotate bearing manually through full 360° to check for binding.

9. Connect lubrication lines if automatic greasing system is used.

10. Perform initial test rotation under no-load before concrete pumping operations.

Maintenance and Care

Lubrication Schedule:

Apply lithium-based grease (NLGI Grade 2) every 100 operating hours or weekly during continuous use. Our integrated lubrication channels distribute grease evenly across raceways.

Seal Inspection:

Check seals monthly for cuts or displacement. Replace immediately if concrete slurry penetrates the seal lip, as abrasive particles accelerate raceway wear.

Bolt Torque Verification:

Re-torque mounting bolts after the first 50 hours of operation, then quarterly. Vibration from boom movement can loosen fasteners over time.

Raceway Condition:

During annual equipment maintenance, inspect raceways for pitting or spalling. Early detection allows bearing replacement before catastrophic failure disrupts your project schedule.

FAQ

Q: Can you manufacture bearings compatible with Putzmeister or Schwing equipment?

A: Yes. Provide your existing bearing's model number or dimensions, and we'll produce a direct replacement meeting OEM tolerances.

Q: What's the typical lead time for custom diameters?

A: Standard modifications take 4-6 weeks. Complex gear configurations or special materials may require 8-10 weeks depending on current production schedules.

Q: Do you offer external gear options for motor-driven systems?

A: Absolutely. We machine external gears with module ranges from M4 to M24, compatible with common pinion drive systems.

Q: How do your precision grades compare to competitors?

A: Our P5 grade matches or exceeds the runout tolerances of European manufacturers, while our P4 grade serves ultra-precise laboratory or specialized military applications.

Q: Can the bearing operate in sub-zero temperatures?

A: Yes, with appropriate grease selection. Consult our engineers for low-temperature lubricant recommendations for Arctic or high-altitude projects.

Contact Us

Ready to specify the right concrete placer slewing bearing for your equipment? Our engineering team is here to help. Reach out today: mia@hgb-bearing.com
