Slewing Ring For Billboard

Slewing Ring For Billboard - High-Performance Rotational Bearing for Outdoor Advertising

Luoyang Heng Guan Bearing Technology Co., Ltd. supplies industrial-grade slewing rings for billboard structures, specifically designed for rotating outdoor advertising equipment. Our four-point contact ball Slewing Bearings have an outer diameter range of 700 mm to 1500 mm, with custom sizes available up to 10,000 mm.Manufactured from premium alloy steels 42CrMo and 50Mn, with raceway surfaces hardened to HRC 55–60, these bearings deliver superior load capacity and weather resistance. Backed by over 20 years of bearing manufacturing expertise and an ISO 9001 certified production facility in Luoyang—China’s bearing industry hub—our slewing rings have been successfully deployed in over 50 countries.Precision grades from P0 to P4 ensure reliable rotation under combined axial, radial, and moment loads in harsh outdoor environments.

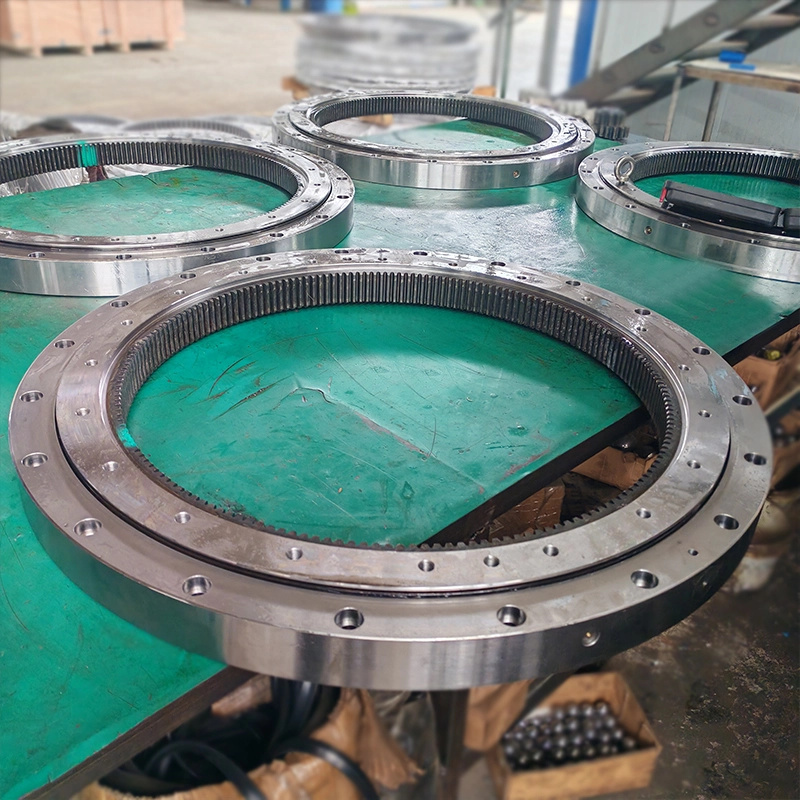

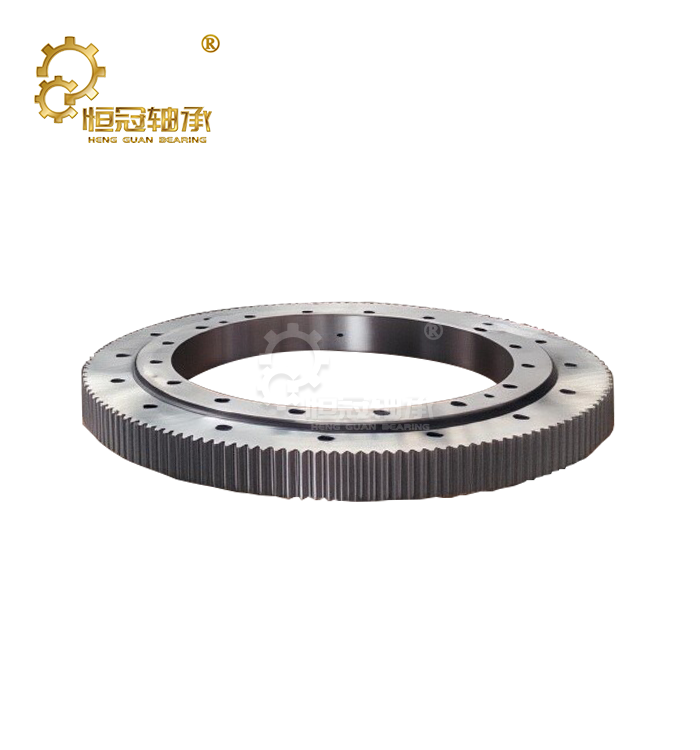

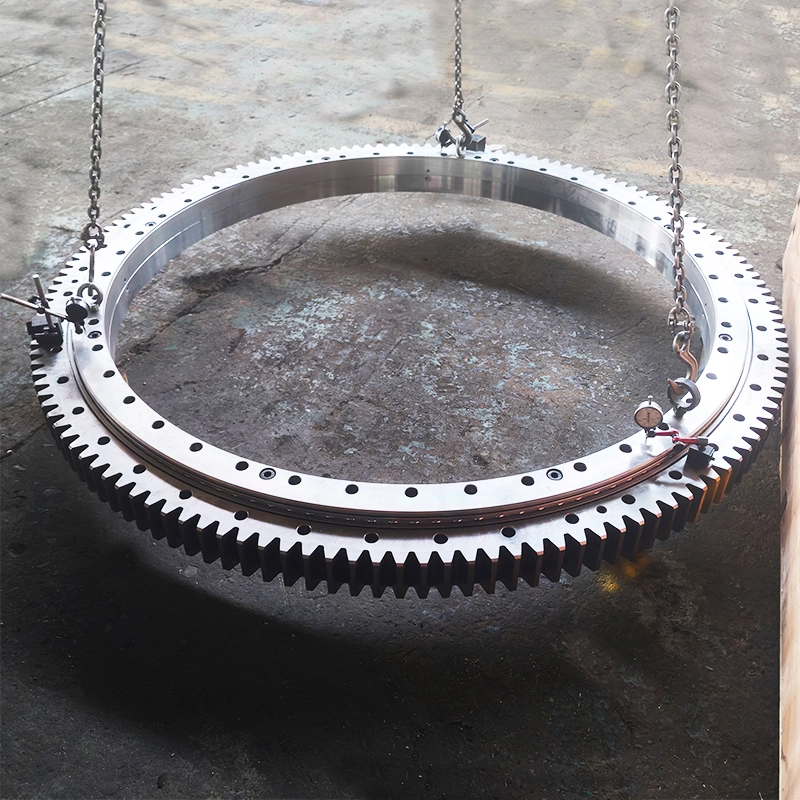

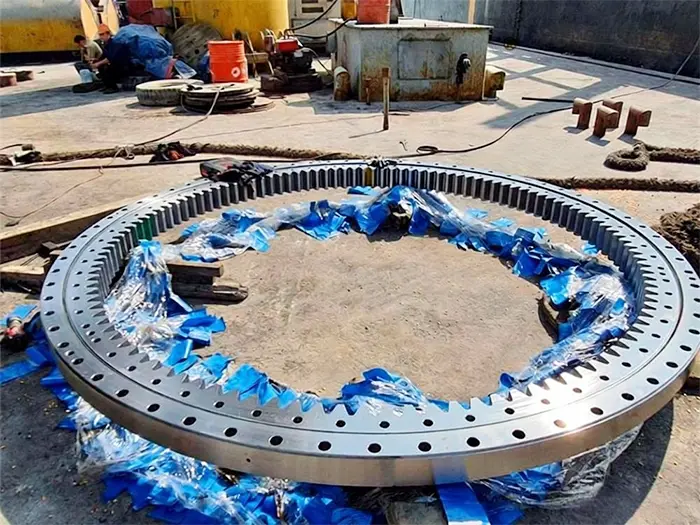

Slewing Ring For Billboard Details

Our billboard slewing bearings feature a four-point contact ball design that distributes loads efficiently across the raceway. This structure allows your advertising facilities to withstand dynamic wind loads while maintaining smooth 360-degree rotation.

The base material undergoes strict heat treatment processes with advanced CNC hardening equipment. It forms a hardened raceway surface while maintaining a tough, ductile core. Consequently, the bearing resists surface wear and absorbs shock loads caused by wind gusts.

Each unit is equipped with precision-machined mounting holes for simple bolt-on installation. Its compact design reduces the installation space required for billboard support structures. Custom inner seal configurations are available to protect drive parts from environmental contamination.

Why Choose Us

Manufacturing Capability You Can Tally On

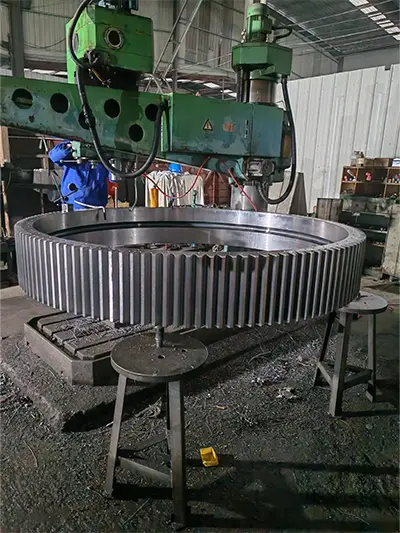

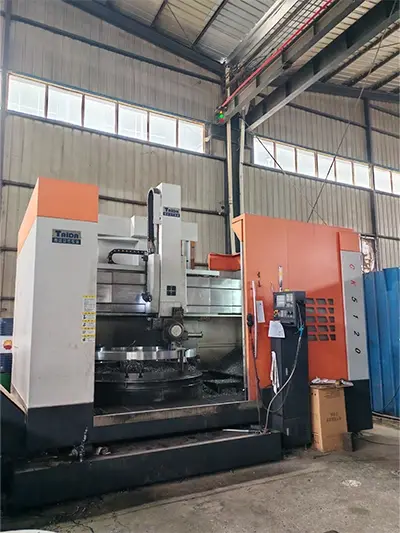

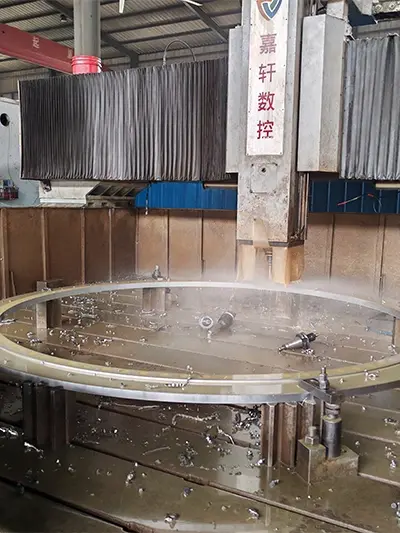

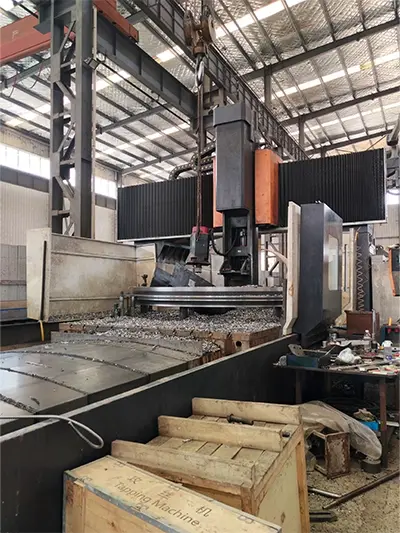

Our workshop is equipped with CNC vertical lathes, Gear shapers, machining centers and large-scale gear hobbing machines. This advanced equipment enables us to process slewing rings with outer diameters ranging from 50 mm to 10,000 mm, ensuring consistent precision.

Engineering Support Throughout Your Project

Our team of more than 50 professional technicians provides technical consultation, product design assistance and installation guidance. We also offer reverse engineering services for existing bearings based on physical samples when 3D drawings are unavailable.

Proven International Track Record

Our billboard slewing rings are manufactured with standardized processes trusted by customers from South Africa, Germany, the United States and 50 other countries. We gain long-term trust through stable quality and full-range services.

Flexible Customization Options

Do you need non-standard dimensions? We provide personalized customization solutions for special working conditions. Our engineers can design tailored products to meet unique load demands and harsh environmental challenges for your billboard projects.

Technical Specifications

Features and Benefits

Superior Load Distribution

The four-point contact design enables each ball to contact two raceways simultaneously. This delivers excellent resistance to tilting moments for billboard structures during strong wind conditions.

Extended Service Life

High-carbon chromium bearing steel paired with precision heat treatment provides outstanding wear resistance and extends maintenance intervals. Reduce routine upkeep costs and maximize your advertising revenue.

All-Weather Performance

Premium materials and standardized heat treatment ensure stable operation from -40°C to +80°C. The billboard slewing ring maintains smooth rotation in extreme heat, cold winters and harsh outdoor weather.

Corrosion Resistance

Optional surface treatments including hot-dip galvanizing meet ISO 9227 salt spray test requirements. Ideal for coastal areas and industrial corrosive environments.

Low Maintenance Requirements

Integrated sealing structures effectively prevent contamination ingress. Fewer maintenance interventions mean lower overall operating costs throughout the bearing service life.

Flexible Drive Options

Internal gear configurations protect drive components from dust and debris, while external gear designs allow for convenient inspection during routine maintenance.

Applications

High-Rise Dynamic Digital Displays

Urban LED screens use our slewing rings to rotate throughout the day, facing different traffic flows. Silent operation and high precision are critical in these installations.

Highway Monopole Signage

In high-wind corridors, your slewing ring for billboard enables free rotation or allows locking in a 'feathered' position during storms. This prevents structural collapse by minimizing wind resistance.

Interactive 3D Advertising Installations

Cutting-edge 'Naked Eye 3D' displays require synchronized mechanical rotation with zero backlash. Our precision bearings maintain rotational stability even under unbalanced loads.

Construction Site Information Boards

Temporary billboard installations benefit from our bearings' quick installation and robust performance in dusty, debris-filled environments.

Port and Industrial Area Signage

Corrosive atmospheres demand enhanced protection. Our specialized coatings and sealed designs ensure reliable operation in maritime and chemical processing zones.

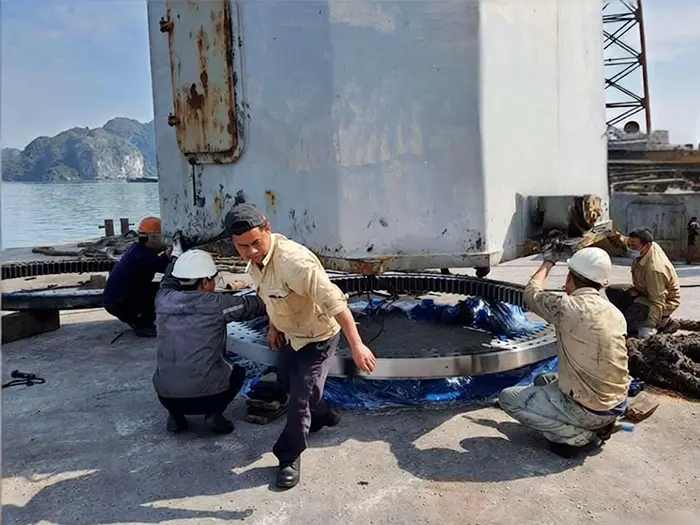

Installation Guide

Pre-Installation Inspection

Check the mounting surface flatness using a straightedge. Surface irregularities transfer stress concentrations into your bearing. The mating surface should be flat within 0.5mm across its diameter.

Bolt Installation Procedure

Use high-strength bolts with appropriate grade markings. Tighten bolts in a star pattern to ensure even load distribution. Apply the specified torque in three stages: 30%, 60%, then 100% of final torque.

Alignment Verification

Measure the gap between the bearing and mounting surface at multiple points. Variations indicate misalignment that will cause premature wear. Adjust shimming as needed to achieve uniform contact.

Initial Lubrication

Apply the manufacturer-recommended grease to all raceway contact points before operation. Rotate the bearing manually through several complete revolutions to distribute lubricant evenly.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Testing & Certification

Every bearing undergoes comprehensive testing before shipment. Our quality control lab uses coordinate measuring machines to verify dimensional accuracy. Vibration testers identify any assembly inconsistencies that could affect smooth rotation.

We maintain full traceability from raw material selection through final inspection. Each production batch receives documented testing results. This ensures you receive bearings that meet specified performance criteria.

Our ISO 9001 certification demonstrates our commitment to consistent manufacturing processes. RoHS compliance means our products meet environmental regulations in your target markets.

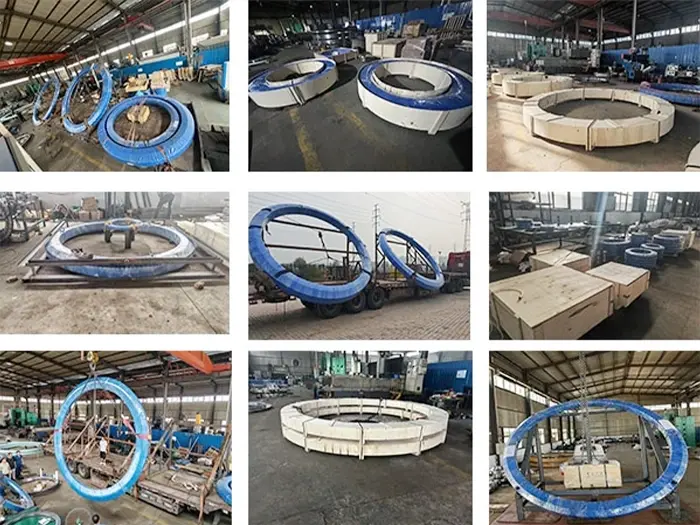

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication Schedule

Re-grease your raceway and gears every 6 to 12 months. Increase frequency if your billboard rotates frequently or operates in high-humidity environments. Use lithium-based grease rated for outdoor exposure.

Inspection Routine

Check bolt tension quarterly using a torque wrench. Inspect seals for damage or displacement. Look for grease leakage that indicates seal failure. Address any issues immediately to prevent contamination entry.

Noise Troubleshooting

Unusual sounds typically indicate insufficient lubrication or contamination in the raceway. Loose mounting bolts also cause operational noise. Perform immediate inspection of gear mesh and seal integrity if noise develops.

Corrosion Prevention

Apply touch-up coating to any scratched or damaged surface treatments. Remove accumulated debris from gear teeth during routine inspections. Keep drainage holes clear to prevent water accumulation.

Customer Reviews

"We installed Heng Guan slewing rings on three highway billboards in 2021. After two years of operation through multiple storm seasons, the bearings still rotate smoothly without any maintenance beyond standard re-greasing."

— Billboard Operator, South Africa

"The technical support team helped us select the right bearing size for our 12-meter LED display. Their calculations for wind load capacity gave us confidence in the installation's safety."

— Advertising Structure Engineer, Germany

"Competitive pricing without compromising on material quality. The hardness testing reports matched specifications exactly."

— Procurement Manager, United States

FAQ

Q1: How do I calculate the required tilting moment capacity?

Calculate the maximum wind pressure on your billboard surface, multiply by the moment arm from the center of pressure to the bearing centerline, then apply a safety factor of at least 1.5.

Q2: What causes premature bearing failure in billboard applications?

The most common causes are improper bolt torque during installation, inadequate lubrication, and misalignment between mounting surfaces. Following proper installation procedures eliminates most failures.

Q3: Can you manufacture bearings for billboards larger than 1500mm?

Yes. Our production capacity extends to 10,000mm diameter. We provide custom design services based on your specific load requirements and environmental conditions.

Q4: What's the difference between 50Mn and 42CrMo materials?

50Mn offers excellent value for standard applications. 42CrMo provides higher fatigue strength and toughness, making it ideal for very large digital screens or extremely high-wind locations.

Q5: Do internal gears perform better than external gears?

Internal gears receive better protection from weather and debris, making them preferable for harsh environments. External gears allow easier inspection and maintenance access. Your choice depends on your specific operational priorities.

Contact Us

Ready to discuss your slewing ring for billboard requirements? Our engineering team is available to answer technical questions and provide selection guidance. Reach us at mia@hgb-bearing.com for quotations and technical support.
