Aerial Lifting Slewing Ring

Aerial Lifting Slewing Ring - Premium Aviation Platform Bearings

At Luoyang Hengguan Bearing Technology Co., Ltd., we specialize in manufacturing high-precision aerial lifting slewing rings built particularly for helicopter platforms and aerial working equipment. Our slewing rings feature a four-point contact ball design with a 45° contact angle, delivering excellent load capacity for axial, radial and tilting moment forces. With raceway surface hardness ranging from 55 to 62 HRC and precision grades up to P5, our products deliver reliable performance in demanding aerial and mechanical lifting applications. We make slewing rings from 50mm to 10,000mm in diameter, utilizing 42CrMo and 50Mn high-strength alloy steels that meet strict safety and structural requirements for high-altitude operations.

​​​​​​​

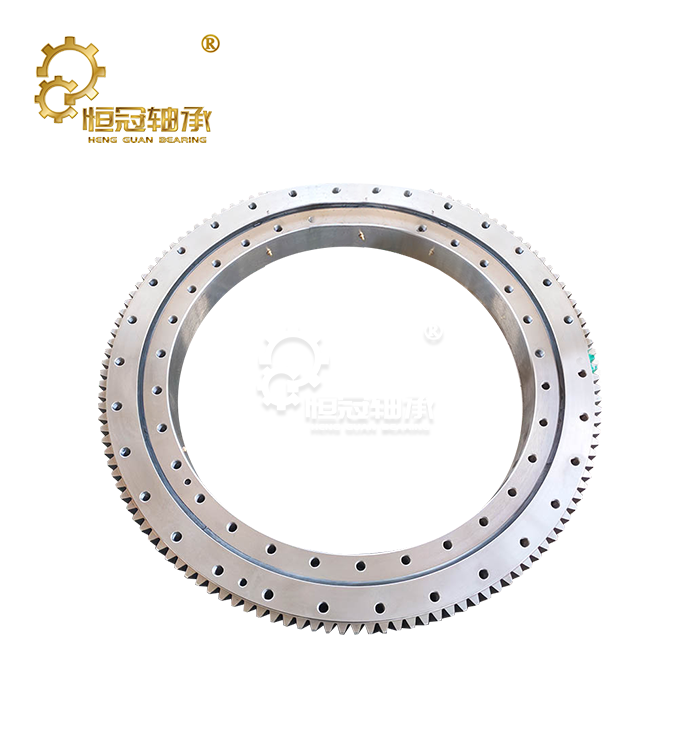

Aerial Lifting Slewing Ring Details

Our product is built around a four-point contact ball structure. This setup positions steel balls at an exact 45-degree contact angle. The design allows your equipment to handle complex combined loads simultaneously without compromising stability.

The ring body adopts Forged 42CrMo or 50Mn alloy steel. Rolling components are made from GCr15SiMn bearing steel. Each raceway undergoes induction quenching to achieve 55-62 HRC surface hardness. This process ensures exceptional wear resistance and extends service life even under continuous rotational stress.

Standard dimensions are 900×800×100mm, while we support custom sizing from 50mm to 10,000mm diameter. Your specific application requirements drive our manufacturing approach, whether you require internal Gearing, external gearing, or gearless configurations.

Why Choose Us

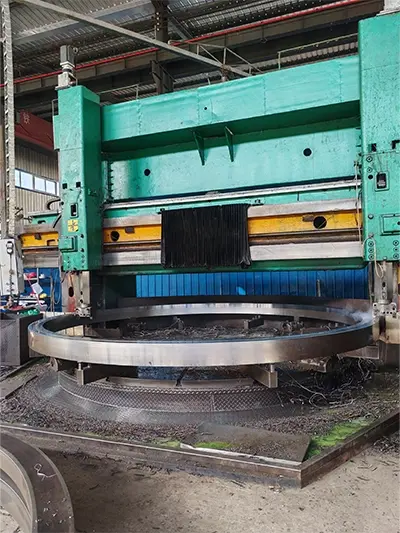

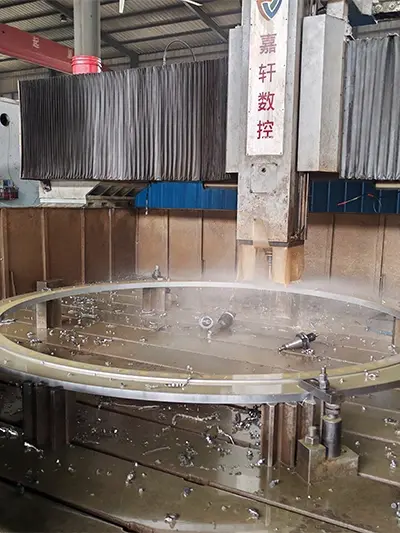

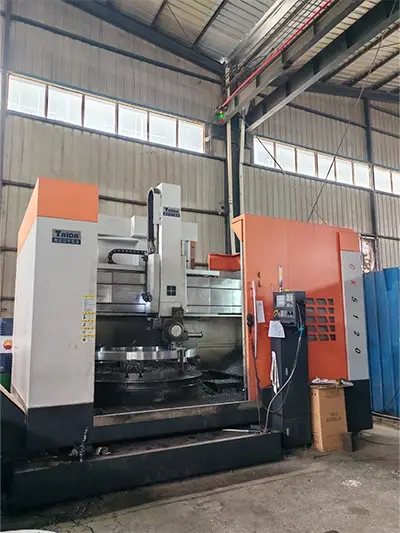

Proven Manufacturing Capacity: Our office in Luoyang—China's bearing industry hub—houses CNC vertical machines, CNC quenching machines, CNC gear shapers, and large-scale gear hobbing equipment. This empowers us to maintain tight tolerances for accuracy grades P0, P6, P5, and P4.

Three Decades of Specialized Mastery: Our engineering team of over 50 professionals brings more than 20 years of extensive experience in Slewing Bearing design and manufacturing. We understand the critical safety factors involved in aerial lifting applications.

Global Reach and Compliance: We have exported products to over 50 countries, including Germany, Turkey, Russia, and Australia. Our ISO 9001 certification and RoHS compliance ensure your equipment meets international standards.

Customization Without Complexity: We provide sample reverse engineering services and customized non-standard solutions based on your 2D drawings or physical samples. You do not need to provide 3D CAD files to get products that fully match your application requirements.

End-to-End Support: From technical consultation and product design through manufacturing, installation guidance, and after-sales service, our team supports you throughout the entire product lifecycle

Technical Specifications

Features and Benefits

Multi-Directional Load Capacity: The 45° four-point contact ball structure bears forces evenly. Your aerial platform maintains stability even when the boom is fully extended horizontally with a loaded basket.

Enhanced Wear Resistance: Induction-hardened raceways minimize surface deterioration. You will enjoy longer maintenance intervals and reduced downtime costs.

Low-Profile Integration: Compact cross-sectional height allows easier installation into space-constrained turret housings. Your equipment design remains streamlined without sacrificing load ratings.

Precision Slewing Control: P5-grade manufacturing tolerances ensure smooth, jerk-free movement. Operators gain better control during fine positioning tasks at height.

Corrosion Protection: Optional sealing systems and surface treatments deliver C4 or C5-M corrosion resistance. Your equipment performs reliably in coastal, industrial, or dusty environments.

Flexible Gear Options: Choose internal gearing, external gearing, or gearless configurations according to your drive system requirements. We customize tooth profiles to match your existing pinion specifications.

Applications

Helicopter Landing Platforms: Military and offshore installations require aerial lifting slewing ring solutions that withstand dynamic rotor downwash forces, thermal stress, and saltwater exposure. Our bearings deliver the structural integrity required for safe aviation operations.

Telescopic and Articulating Boom Lifts: Construction and maintenance equipment relies on slewing rings to support heavy tilting moments when booms extend beyond 20 meters. Our four-point contact design prevents catastrophic failure under asymmetrical loading.

Firefighting Aerial Ladders: Emergency response vehicles demand fast, accurate positioning capabilities. Our bearings deliver stable performance under thermal stress and high-pressure water recoil forces.

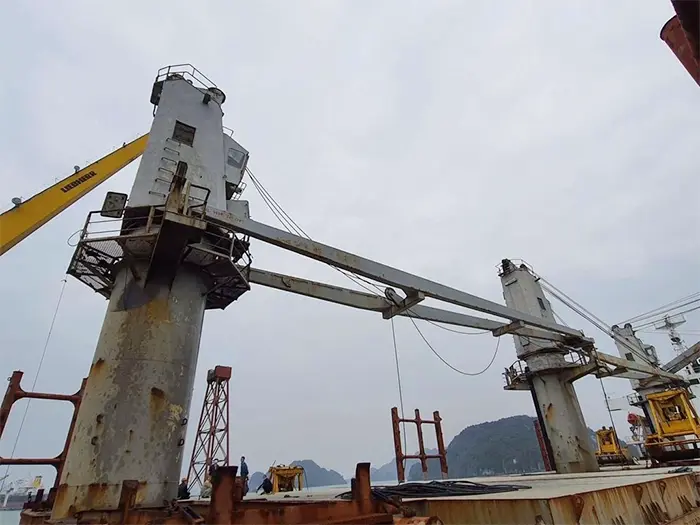

Truck-Mounted Utility Cranes: Telecom, power utility, and tree service providers need robust slewing systems that operate across uneven terrain and extreme weather conditions. Our hardened raceways withstand shock loads from rough road transportation.

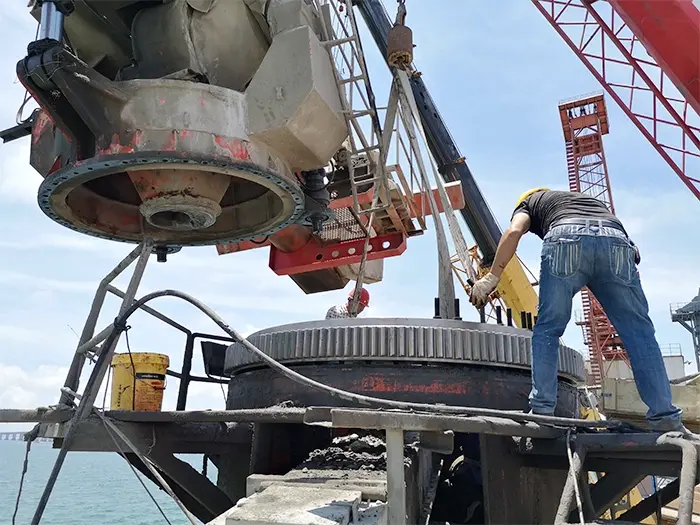

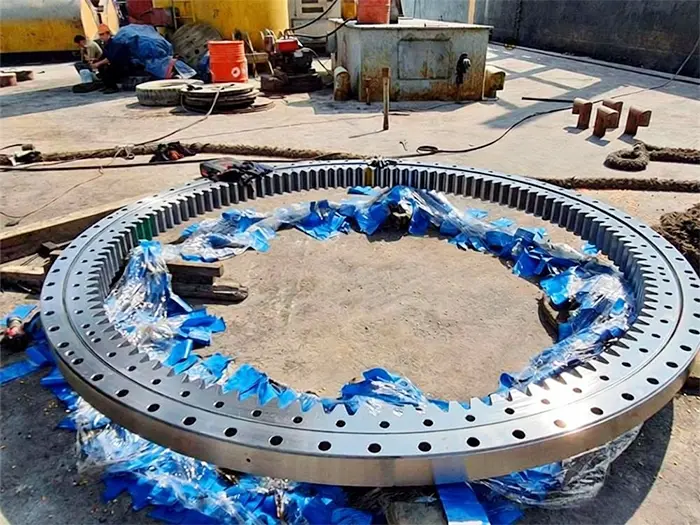

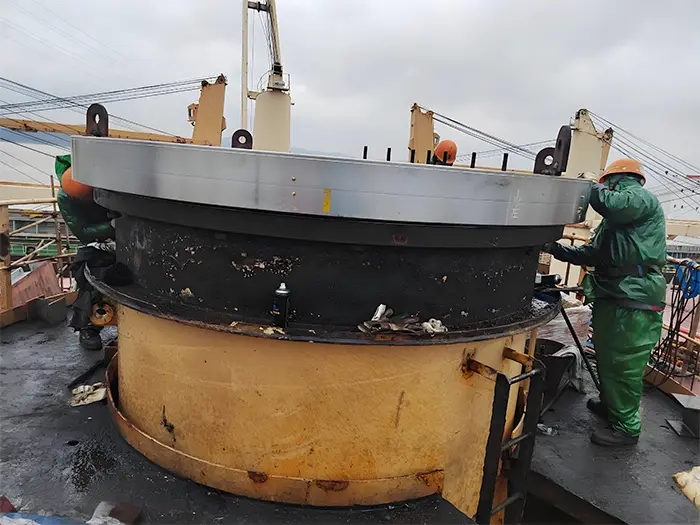

Installation Guide

Pre-Installation Review: Confirm mounting surface levelness using precision measuring tools. Clean all contact surfaces to remove debris, grease, or corrosion.

Alignment: Position the slewing ring so that mounting holes align with your platform structure. Use alignment pins or jigs to prevent displacement during fastener installation.

Fastener Torque: Follow manufacturer-specified torque values for mounting bolts. Apply torque in a star pattern to distribute clamping force evenly. Recheck torque after initial equipment operation.

Lubrication: Apply recommended grease to raceways and gear teeth before commissioning. Establish a lubrication schedule based on working hours and environmental conditions.

Final Check: Rotate the bearing through its full range of motion. Ensure smooth operation without binding or abnormal noise. Recheck fastener torque after the first 50 working hours.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

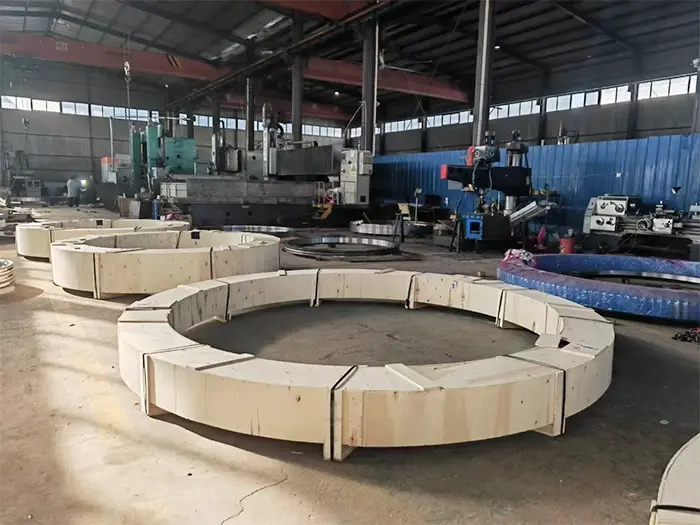

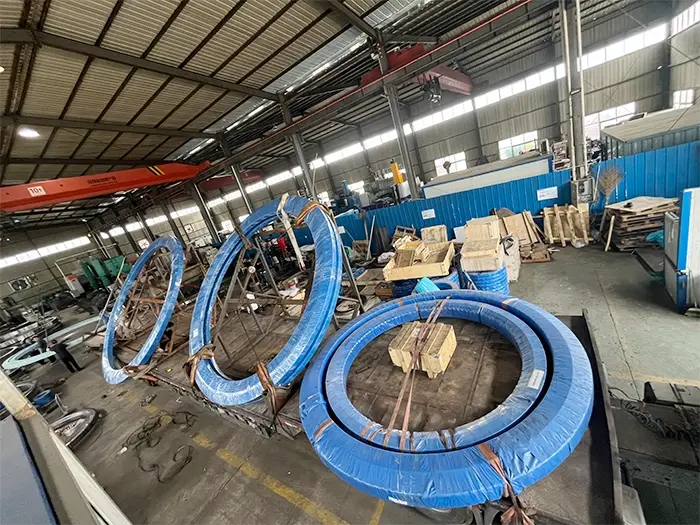

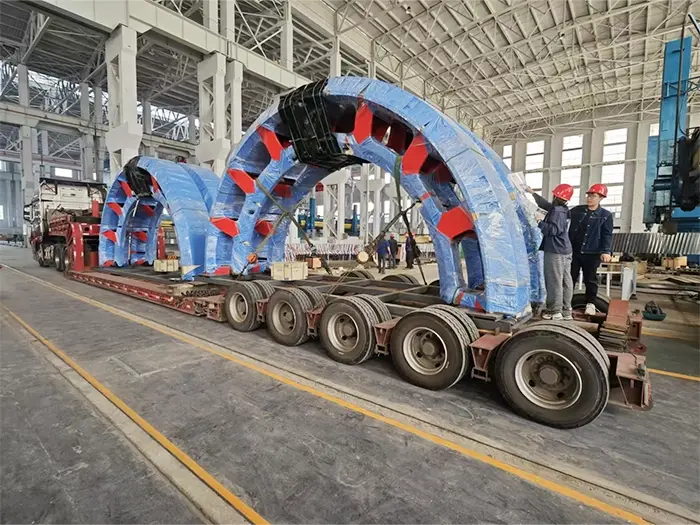

Packaging & shipping

Every slewing ring experiences thorough quality control some time recently shipment. We utilize arrange measuring machines to confirm dimensional precision, vibration analyzers to survey rotational smoothness, and life testing hardware to reenact a long time of operational cycles.

Our fabricating forms comply with ISO 9001 quality administration guidelines. Items meet Din, ISO, and GB dimensional and execution details. RoHS compliance guarantees natural obligation all through our supply chain.

Full traceability goes with each arrange. Crude fabric certificates, warm treatment records, and last review reports report each fabricating stage.

Positive customer reviews

Our quality and service have received widespread praise from our customers.

Maintenance and Care

Lubrication Schedule: Relubricate every 100 operating hours or quarterly, whichever comes first. Increase frequency in dusty or marine environments. Use lithium-based EP2 grease unless specified otherwise.

Visual Inspection: Check seals for damage or displacement monthly. Look for grease leakage, corrosion, or abnormal wear patterns on exposed gear teeth.

Bolt Torque Verification: Inspect mounting bolt torque every 500 operating hours. Retorque as needed to prevent loosening from vibration.

Raceway Condition: During scheduled maintenance, examine raceways for pitting, spalling, or discoloration. Address issues immediately to prevent accelerated wear.

Replacement Indicators: Excessive backlash, irregular rotation resistance, or visible cracking in the ring body signals the need for replacement. Never delay addressing these conditions on safety-critical equipment.

FAQ

Q: What distinguishes an product from standard slewing bearings?

A: These bearings are engineered specifically for simultaneous axial, radial, and tilting moment loads typical in boom lifts and aerial platforms. Standard bearings lack the structural capacity for such complex load combinations.

Q: Can you manufacture bearings larger than 900mm diameter?

A: Yes. Our equipment handles diameters up to 10,000mm. We've produced custom rings exceeding 5 meters for specialized lifting applications.

Q: Do you provide installation support for international customers?

A: We offer detailed installation drawings, torque specifications, and video guidance. For large projects, we can arrange on-site technical support through regional partners.

Q: What lead time should we expect for custom dimensions?

A: Standard modifications typically require 4-6 weeks. Complex custom designs with special materials or coatings may extend to 8-10 weeks depending on testing requirements.

Q: How do you ensure quality for safety-critical applications?

A: Every bearing undergoes coordinate measurement, vibration analysis, and load testing. We provide full material traceability and inspection reports with each shipment. Our ISO 9001 certification guarantees consistent quality management.

Contact Us

Ready to specify the right slewing bearing solution for your aerial equipment? Our engineering team is here to assist with technical consultations, custom designs, and aerial lifting slewing ring selection. Reach us at mia@hgb-bearing.com for prompt professional support.
