Dryer Ring Gear

Dryer Ring Gear – Heavy-Duty Transmission Components for Industrial Drying Equipment

Product Details

When your drying equipment requires reliable rotation under continuous heavy loads, you need a Dryer Ring Gear that delivers consistent performance. Our products are precision-engineered transmission components designed specifically for large-diameter rotary dryers used in cement, mining, chemical, and environmental industries. Each product undergoes rigorous quality control to ensure smooth power transmission, extended service life, and minimal downtime. Manufactured from high-grade alloy steels including 45#, 55#, 40Cr, and ZG42Cr1Mo, these gears handle the demanding conditions of continuous industrial drying operations. With diameters ranging from 1,500mm to 12,000mm and module options from M16 to M50, we provide the right solution for your specific application.

Our ring gears feature both helical and spur tooth configurations. The large-module design ensures smooth torque transmission while reducing vibration and noise during operation. Each gear is manufactured using advanced CNC machining centers, gear hobbing machines, and heat treatment facilities to meet strict dimensional and material specifications.

Why Choose Us?

Proven Manufacturing Expertise
Based in Luoyang, a premier hub of China's bearing industry, we leverage over 20 years of collective engineering experience on every project. Our dedicated team of 50+ specialists focuses exclusively on the design and manufacture of Slewing Bearings and large-scale gear components.

Precision Manufacturing Capability

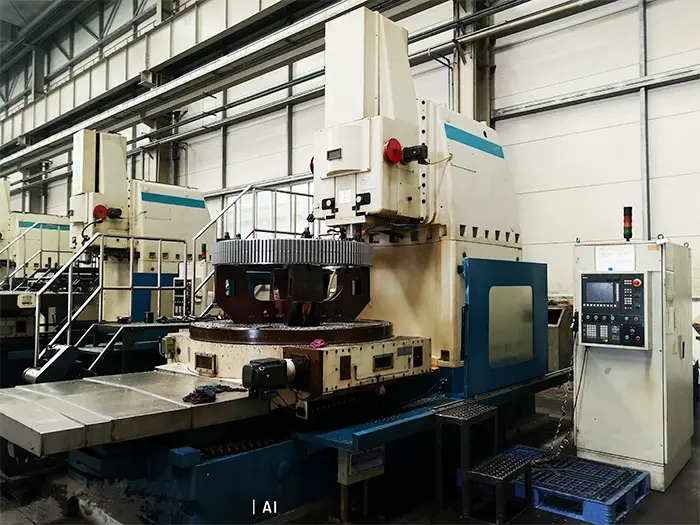

Our vertically integrated facility houses advanced CNC vertical lathes, CNC quenching machines, CNC gear shapers, and largeformat gear hobbing equipment. This allows us to maintain tight tolerances on bearings with diameters up to 10,000 mm and offer precision grades from P0 to P4.

Comprehensive Customization Services
Whether your project requires specific tooth profiles, segmented designs, or material substitutions, our engineering team works directly with you. We manage custom designs from concept, perform reverse engineering on existing components, and execute nonstandard machining projects to meet unique application demands.

Quality Assurance System
Our ISO 9001certified facility operates under strict quality control protocols at every stage of production. All products comply with major international standards such as JIS, ISO, and GB. We also adhere to RoHS directives to meet global environmental requirements.

Global Project Record
We have successfully executed bearing and gear solutions for clients in over 50 countries across six continents, including Germany, the United States, Australia, South Africa, and throughout the Middle East.

Technical Specifications

Testing & Certification

Every Dryer Ring Gear undergoes comprehensive inspection before shipment. We utilize coordinate measuring machines to verify tooth geometry, pitch accuracy, and dimensional tolerances. Material certificates document chemical composition and mechanical properties for full traceability.

Our facility maintains ISO 9001 certification with documented quality procedures covering material procurement, machining operations, heat treatment, and final inspection. Products comply with RoHS environmental directives and meet international bearing and gear standards.

Features and Benefits

Large-Module Tooth Profile
The heavyduty tooth geometry distributes load evenly across the gear face. This reduces stress concentrations and extends service life in continuousduty applications.

Segmented Construction
For diameters exceeding 3,000 mm, we offer segmented designs to simplify transportation, installation, and infield replacement. Precisionmachined bolted joints maintain circumferential alignment and structural integrity.

Superior Material Selection
We use certified alloy steels with guaranteed chemical composition and mechanical properties. Controlled heat treatment processes achieve optimal core toughness while meeting surface hardness specifications for superior wear resistance.

Customizable Geometry
Tooth profiles, pressure angles, and helix angles can be engineered to match your existing pinion arrangement or optimized for specific speedreduction and torque requirements.

Dimensional Accuracy
CNCcontrolled machining ensures consistent tooth spacing, pitch diameter, and radial runout. This precision minimizes vibration and noise while maximizing the overall service life of your gearbearing assembly.

Applications

Building Materials Industry

· Cement slag dryers

· Sand and clay drying drums

· Gypsum rotary dryers

Mining and Metallurgy

· Iron ore concentrate dryers

· Copper concentrate drying equipment

· Tailings and slag drying systems

Chemical and Fertilizer Production

· Fertilizer raw material dryers

· Chemical intermediate drying equipment

· Phosphate rock processing

Environmental and Energy Sectors

· Sludge drying systems

· Biomass fuel preparation equipment

· Coal slime dryers

Installation Guide

1. Pre-Installation Inspection: Verify all segments and mounting hardware are present. Check tooth surfaces for any shipping damage.

2. Support Structure Preparation: Ensure the dryer shell has proper roundness and that support rollers are correctly aligned.

3. Segment Assembly: Position segments on the dryer shell according to the assembly diagram. Maintain specified gaps between segments for thermal expansion.

4. Bolt Torquing: Follow the provided torque sequence and values. Use calibrated torque wrenches and apply in multiple passes.

5. Alignment Check: Measure radial runout at multiple positions. Adjust segment positions if readings exceed tolerance.

6. Pinion Engagement: Verify proper backlash and contact pattern with the driving pinion before full load operation.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

Packaging & shipping

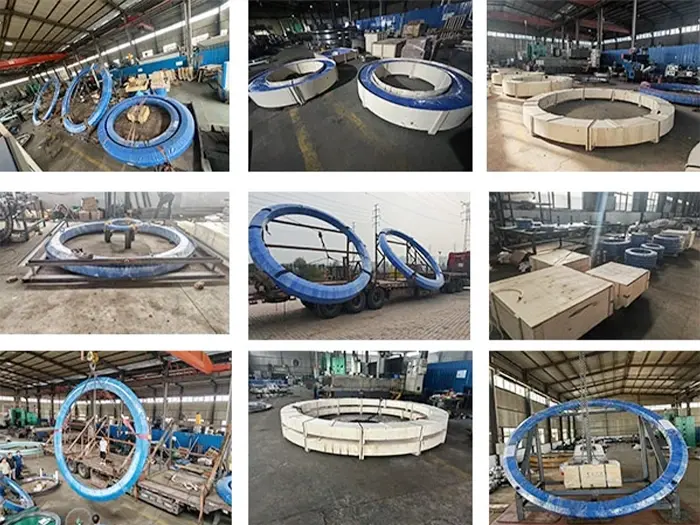

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Standard Inspection Schedule
Check mounting bolt torque monthly during the first three months of operation, then quarterly thereafter. Visually inspect gear tooth surfaces for irregular wear patterns, which may indicate misalignment or uneven loading.

Lubrication Requirements
Maintain proper lubrication at the piniongear mesh point. Use a grease specifically formulated for your operational temperature range and load conditions to ensure optimal film strength and wear protection.

Wear Monitoring
Establish a regular wear monitoring program by recording tooth thickness measurements at predetermined intervals (e.g., semiannually). Plan for gear replacement when measured wear approaches the critical service limit indicated in the technical documentation to prevent catastrophic failure.

Alignment Verification
Following any significant maintenance on supporting rollers or the main drive system, reverify the alignment between the pinion and the slewing bearing gear to prevent accelerated and uneven wear.

FAQ

Q: What lead time should I expect for custom-sized gears?
A: Standard catalog configurations typically ship within 4-6 weeks. Custom-engineered designs require 8-12 weeks for engineering and manufacturing, depending on complexity and our current production schedule.

Q: Can you manufacture a ring gear to match my existing pinion?
A: Yes. Please provide us with your pinion specifications or a physical sample. Our engineering team will then design the mating ring gear to ensure optimal mesh characteristics, load distribution, and service life.

Q: How are large-diameter gears handled for international shipping?
A: Gears exceeding 3,000 mm in diameter are manufactured in precision-machined segments. Each segment features machined joint interfaces for accurate alignment and bolting during on-site assembly, facilitating cost-effective shipping and handling.

Q: What documentation is provided with each order?
A: With every order, you will receive a comprehensive documentation package, including material certificates, dimensional inspection reports, heat treatment records, and detailed assembly instructions.

Q: Do you offer installation support?
A: Yes. We provide detailed installation manuals and ongoing technical consultation. For major projects, on-site installation supervision or technical support can be arranged upon request.

Contact Us

Need technical specifications or a quotation for your Dryer Ring Gear application? Our engineering team is ready to assist. Reach us at mia@hgb-bearing.com for prompt support.

Luoyang Heng Guan Bearing Technology Co., Ltd. – Engineering reliable solutions for industrial transmission challenges since our founding in Luoyang's bearing manufacturing district.
