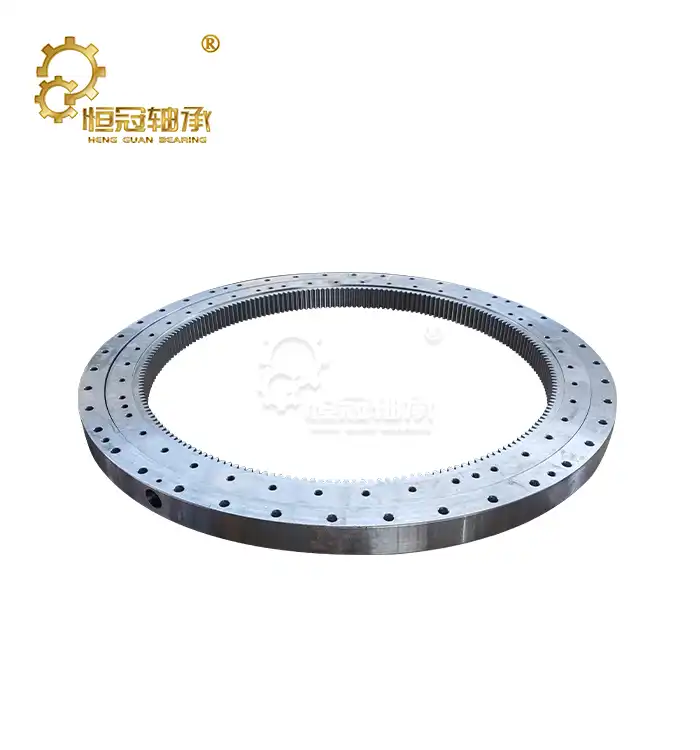

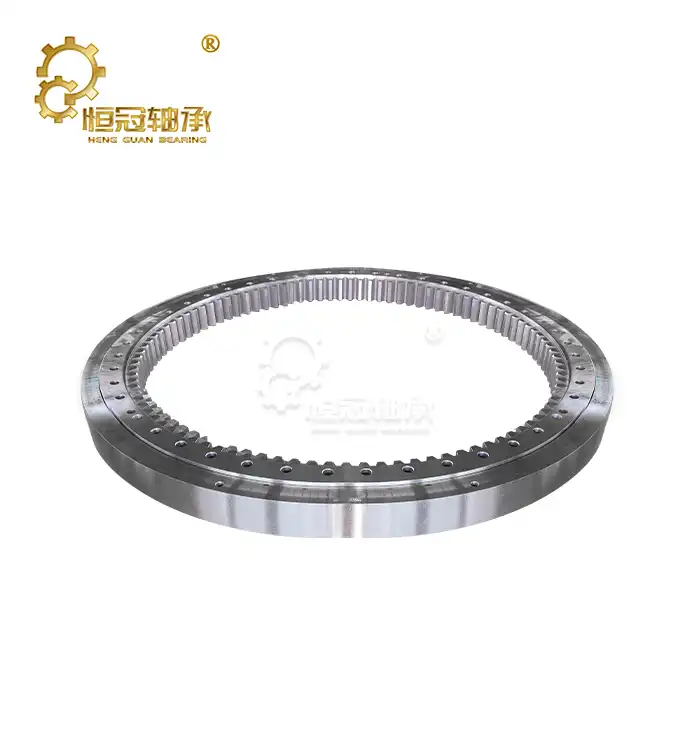

Volvo Excavator slewing bearing

Volvo Excavator Slewing Bearing: Precision-Engineered Rotation Solution

This high-precision component enables 360-degree rotation of the upper structure relative to the undercarriage. It simultaneously handles axial loads,radial loads,tilting moments—three directional stresses that occur during every digging cycle.

The bearing connects the swing motor to the chassis through an integrated gear design. This ensures smooth power transmission even when you're operating in demanding conditions like deep trenching or high-reach demolition. If you've experienced swing drift or unexpected rotational resistance, a worn bearing is often the root cause.

At Luoyang Heng Guan Bearing Technology, we manufacture Volvo Excavator Slewing Bearings fully compatible with Volvo's EC and ECR series, from compact 5-ton models to heavy 90-ton machines. Our products match OEM mounting dimensions, so you get a direct-fit replacement without modification.

Contact our engineering team: mia@hgb-bearing.com

Technical Specifications

Volvo Model Product Parameters

Product Structure and Performance

Core Structural Types

Single-Row Four-Point Contact Ball Bearing

This compact design provides smooth, low-noise rotation. It handles combined loads efficiently while maintaining a smaller envelope size. You'll find this structure ideal for standard excavation tasks where space is limited.

Cross-Roller and Three-Row Roller Bearings

When you face extreme conditions—heavy mining, hydraulic breaking, or high-frequency slewing—these roller configurations deliver superior rigidity and impact resistance. The larger contact area distributes load more evenly, reducing stress concentration on the raceway.

Manufacturing Standards

Material Selection

We use 50Mn or 42CrMo alloy structural steel for inner and outer rings. Each component undergoes integral forging, creating a dense grain structure that resists deformation under shock loads.

Raceway Treatment

Medium-frequency induction hardening brings the raceway hardness to HRC 55-62. This range provides excellent wear resistance while maintaining core toughness. The precision finishing process that follows ensures smooth rolling element motion and minimizes friction losses.

Engineering Solutions for Common Challenges

High Load Capacity

If you're concerned about raceway failure under heavy loads, our design incorporates optimized rolling element diameter and strengthened raceway cross-section. Finite element analysis validates stress distribution before production begins.

Extended Service Life

Premature bearing replacement creates costly downtime. We address this through controlled heat treatment processes that balance surface hardness with core toughness. Laboratory fatigue testing confirms our Volvo Excavator slewing bearings meet or exceed 8,000-hour operational targets under rated loads.

Sealing Performance

Excavators work in abrasive environments filled with dust and mud. Our triple-sealing system combines nitrile rubber lip seals with labyrinth grooves. This design prevents contaminant ingress while retaining lubricant, even during pressure washing or water crossings.

Corrosion Resistance

Coastal construction and marine applications expose bearings to saltwater and chemical attack. We apply specialized anti-corrosion coatings and use salt-fog-resistant lubricants. This extends bearing life in chemically aggressive environments by up to 40% compared to standard finishes.

Dimensional Accuracy

Rotational instability often stems from manufacturing tolerances. Our CNC machining centers and precision grinding equipment maintain concentricity within 0.02mm. This tight control eliminates wobble and ensures smooth swing motion throughout the bearing's service life.

Custom Manufacturing Capabilities

Standard and Non-Standard Solutions

We maintain stock of common Volvo models for immediate shipment. When you need a non-standard size or unique mounting configuration, our engineering team provides custom design services.

Reverse Engineering Service

Missing the original drawings? We offer on-site measurement and reverse engineering. Our engineers visit your location, collect dimensional data using coordinate measuring equipment, and produce 1:1 replacement bearings. This service includes:

• Complete dimensional mapping
• Wear pattern analysis
• Optimized redesign for extended life
• Manufacturing and quality control
• Installation guidance

Installation and Maintenance Guidance

Mounting Bolt Requirements

Never reuse mounting bolts during bearing replacement. Bolts are engineered for specific torque-to-yield parameters. Reused fasteners risk fatigue failure and potential separation under load.

Lubrication Schedule

Beneath typical conditions, apply grease each 50-100 working hours. In high-dust or submerged applications, day by day grease cleanses contaminants and keeps up film quality. Utilize the oil indicated in your machine's upkeep manual to guarantee compatibility with our bearing seals.

Clearance Monitoring

Measure axial clearance during scheduled maintenance. Clearance surpassing 1.5-3.0mm (depending onexcavator size) demonstrates wear requiring professional assessment. Early location anticipates structural damage to mounting surfaces.

Why Choose Luoyang Heng Guan Bearing?

Proven Manufacturing Experience

Found in Luoyang—China's bearing industry center—we combine over over 30 years of specialized expertise with cutting edge CNC hardware. Our office incorporates vertical machines for large-diameter work, gear hobbing machines, and precision grinding equipment.

Complete Size Coverage

We deliver bearing from 50mm to 10,000mm breadth. This extend underpins everything from compact utility excavators to ultra-large mining scoops. Four exactness grades (P0, P6, P5, P4) suit shifting exactness requirements.

Global Export Expertise

Our items serve clients over 50+ nations, counting requesting markets in Europe, North America, and Australia. This worldwide involvement implies we understand regional standards and certification requirements.

FAQ

Q: How do I know if my slewing bearing is failing?

A: Signs incorporate crushing commotion, intemperate play, and jerky rotation.

Q: What causes untimely bearing failure?

A: Common causes are destitute oil, defilement, inaccurate establishment, and unacceptable grease.

Q: Can your bearing work with Volvo's programmed oil system?

A: Yes. Our oil ports are consistent with OEM grease systems.

Q: How long does a appropriately kept up bearing last?

A: Ordinarily 8,000–12,000 working hours beneath typical conditions.

Q: Do you give establishment support?

A: Yes. Establishment informational and specialized help are available.

Q: What if my demonstrate isn't listed?

A: We offer custom arrangements. Send your show or bearing measurements for affirmation and a citation.

Get Your Replacement Bearing

Need a Volvo Excavator slewing bearing that delivers reliable performance without the OEM price premium? Contact our team at mia@hgb-bearing.com.
