Takeuchi Excavator slewing bearing

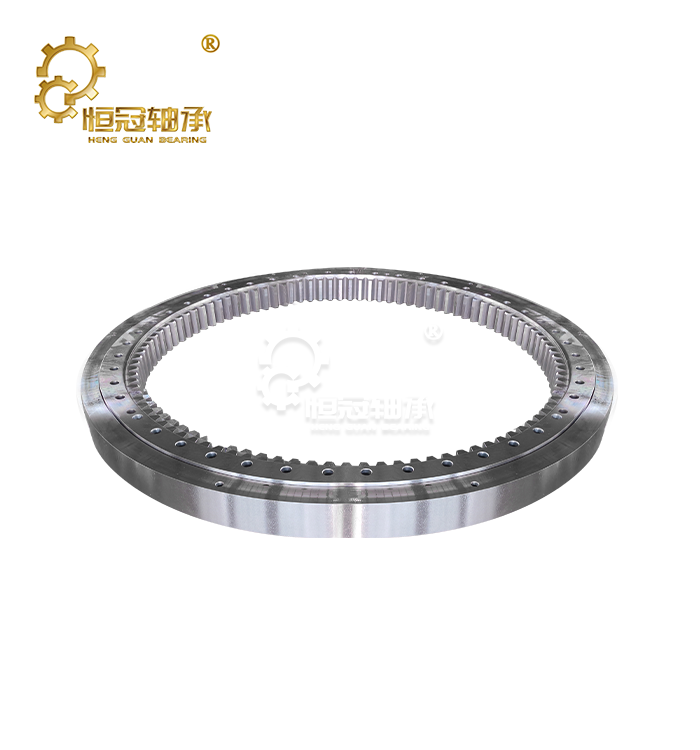

Takeuchi Excavator Slewing Bearing: Precision Rotation Solutions for Compact Equipment

A Takeuchi Excavator Slewing Bearing– also called a swing circle or turntable bearing – must withstand combined axial loads, radial，radial loads，tilting moments while maintaining precision movement. For operators managing TB series equipment, from micro TB108 models to medium-duty TB2150 units, this component directly impacts productivity and equipment uptime. Our factory in Luoyang specializes in manufacturing products that match original Japanese specifications for dimensional accuracy, load capacity, and gear meshing tolerances. Whether you're maintaining a fleet or sourcing replacement parts for legacy equipment, understanding the engineering behind these bearings helps you make informed purchasing decisions that minimize downtime.

Contact our engineering team: mia@hgb-bearing.com​​​​​​​​​​​​​​

Technical Parameters Reference

Takeuchi Model Product Parameters

What Makes Our Slewing Bearings Suitable for Takeuchi Equipment?

Engineered Structure for Compact Machines

Your Takeuchi excavator works in confined areas where precision matters. Our bearings use three proven designs:

Single-Row Four-Point Contact Ball Type: This configuration reduces rotational resistance while handling multi-directional loads. The compact structure fits perfectly in micro-excavators like the TB210R and TB215R series.

Crossed Roller Design: When you're breaking concrete or working on uneven terrain, crossed rollers provide exceptional rigidity against tilting moments. This structure maintains stability during heavy-duty operations.

Three-Row Roller Configuration: For larger models requiring higher load capacity, the three-row design distributes forces across wider raceways. This extends bearing life under continuous high-stress conditions.

Material Selection and Heat Treatment

We forge our slewing rings from 50Mn and 42CrMo alloy steels. These materials undergo precision forging that preserves metal grain flow. This process significantly increases structural strength under high-frequency rotational loads.

The raceway surfaces receive induction hardening treatment. We achieve consistent hardness of HRC 55-62 across the contact surfaces. The uniform depth of the hardened layer – typically 3-5mm – reduces friction during operation. You'll notice smoother rotation and extended service life.

Sealing System for Harsh Environments

Your equipment encounters mud, dust, and water on job sites. Our Takeuchi Excavator slewing bearing features multi-stage sealing:

· Double-lip NBR seals block contaminant entry

· Grease retention channels maintain lubrication film

· Labyrinth seals create additional barriers against abrasive particles

Manufacturing Capabilities That Ensure Quality

Production Equipment

Our facility houses specialized equipment for slewing bearing production:

· CNC vertical lathes handle diameters from 50mm to 10,000mm

· CNC quenching machines deliver precise heat treatment

· Large gear hobbing machines cut accurate tooth profiles

· Grinding machines achieve required surface finishes

· Machining centers maintain tight tolerances

Quality Verification Process

Every bearing undergoes systematic inspection:

1. Ultrasonic testingdetects internal material flaws in forgings

2. Magnetic particle inspectionreveals surface cracks in raceways and gear teeth

3. Hardness testingconfirms heat treatment depth and consistency

4. CMM dimensional checksverify mounting holes and gear pitch accuracy

5. Rotation torque testingensures smooth operation within specifications

Solving Real-World Operational Challenges

High Load Capacity Under Combined Forces

Your excavator experiences multiple load types simultaneously. We design raceways using finite element analysis to handle:

· Axial forces from bucket weight

· Radial loads during side-slope digging

· Tilting moments when extending boom reach

Extended Service Life

Equipment downtime costs you money. Our heat treatment optimization and wear-resistant materials typically deliver 5,000-8,000 operational hours of service life. Proper lubrication extends this further.

Corrosion Resistance

If you operate near coastal areas or handle corrosive materials, we offer protective coatings and special lubricants. These prevent salt spray damage and chemical attacks on bearing surfaces.

Precision Maintenance

Tight machining tolerances ensure concentricity and smooth rotation. You won't experience the jerky movement or excessive play common in worn bearings. This precision matters when working around utilities or building foundations.

Installation and Maintenance Support

Installation Guidance

We provide detailed technical documentation covering:

• Mounting surface preparation requirements
• Bolt tightening sequence and torque specifications
• Alignment verification procedures
• Initial lubrication procedures

Proper installation prevents premature failure and ensures optimal performance.

Early Warning Signs

Contact Us if you notice:

• Metallic clicking noises during rotation
• Excessive rocking between house and undercarriage
• Increased resistance when swinging
• Visible grease leakage from seals

Customization and Reverse Engineering Services

Non-Standard Requirements

If standard dimensions don't fit your modified equipment, we offer custom design services. Our engineers calculate load requirements and optimize bearing structure for your specific application.

On-Site Measurement

For equipment lacking original drawings, we dispatch engineers to your location. They measure:

• External and internal diameters
• Bolt hole patterns and positions
• Gear specifications
• Mounting interface dimensions

Why International Buyers Choose Our Factory?

Geographic Advantage: Found in Luoyang, China's bearing manufacturing hub, leverage access to specialized providers and gifted workforce.

Technical Skill: Our R&D group of over 50 engineers brings over 30 years of collective experience of combined industry involvement to bearing plan and problem-solving.

Production Scale: We handle orders from single substitution units to bulk armada upkeep supplies. Fabricating capacity underpins both pressing substitutions and arranged stock stocking.

FAQ

Q: How can I confirm bearing quality some time recently ordering?

A: Test orders and plant assessments are accessible for quality evaluation.

Q: What is the lead time for standard TB arrangement bearings?

A: Common models dispatch inside one week. Custom or non-standard Bearing ordinarily require 3-4 weeks depending on specifications and current generation schedule.

Q: Can you supply bearing with gear teeth?

A: Yes. We offer both total equipped gatherings and bearing rings.

Q: What documentation is included?

A: Assessment reports, fabric certificates, and shipping records are provided.

Q: Do you offer bearing determination support?

A: Yes. Our engineers can prescribe the redress bearing based on your machine demonstrate and application.

Contact Us for Technical Consultation

Reach out to our technical team at mia@hgb-bearing.com with your Takeuchi Excavator slewing bearing, model number, operating conditions, or specific questions.​​​​​​​
