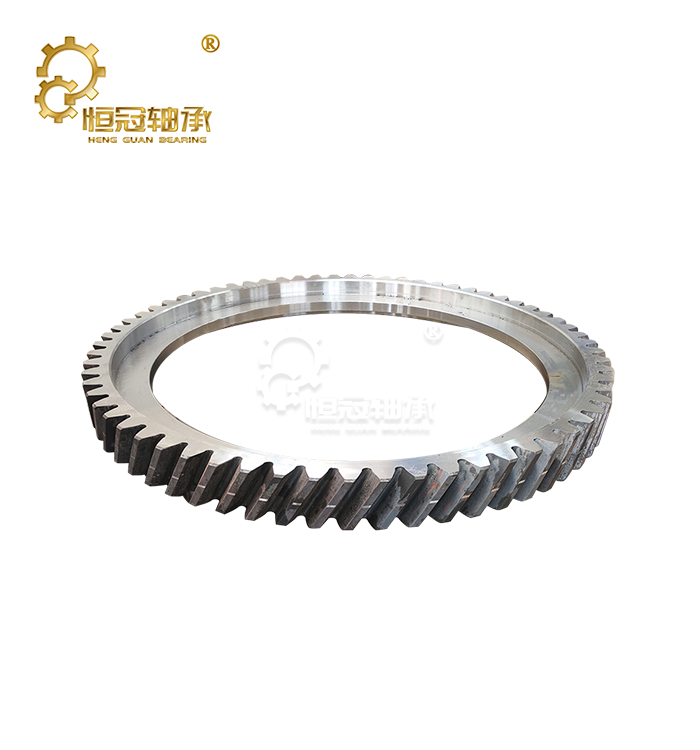

Ring Gear – Precision Transmission Components for Heavy Machinery

When your heavy machinery demands reliable power transmission and exceptional durability, you need components engineered to perform under extreme conditions. Our Ring Gear solutions deliver precisely that. Manufactured from premium-grade steel through advanced forging and machining processes, these gears serve as critical transmission elements in equipment ranging from ball mills to excavators. Each product undergoes rigorous quality control to ensure dimensional accuracy, proper tooth profile geometry, and consistent hardness distribution. Whether you're operating rotary kilns, Slewing Bearings, or crane mechanisms, our products provide the torque capacity and wear resistance your applications require.

Product Details

Our products feature an integral circular structure available in both internal and external tooth configurations. We manufacture units spanning φ50mm to φ6000mm in diameter, accommodating diverse industrial requirements.

Core Construction:

· Forged or rolled steel blank forming

· Precision CNC machining for tooth profiles

· Heat treatment for optimal hardness and toughness

· Final grinding to achieve specified tolerances

The manufacturing process begins with material selection—typically, 45# carbon steel is used for standard applications, while 42CrMo is chosen for higher quality requirements, and 20CrMnTi is used if surface hardening treatment is required. After rough machining, the components undergo controlled heat treatment to achieve the desired core strength while maintaining a surface hardness of 45-55 HRC.

Why Choose Us?

Manufacturing Capabilities

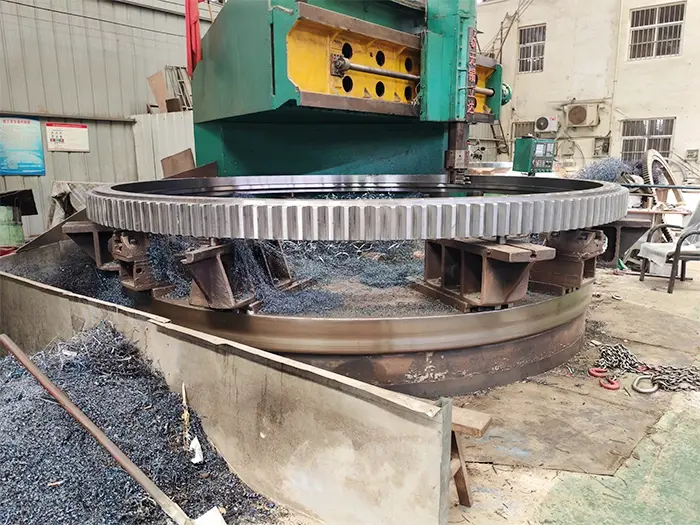

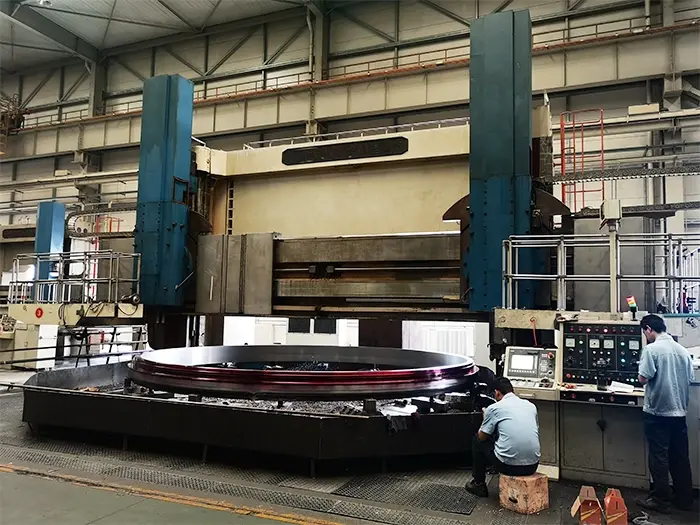

Our factory in Luoyang is equipped with CNC vertical machining centers, gear hobbing machines, and machining centers capable of processing components up to 10 meters in width. These facilities allow us to maintain strict tolerance accuracy even when machining large gears.

Engineering Support

With over 20 years of experience in bearing and gear manufacturing, our professional team of 50 members provides design assistance, material selection guidance, and customized solutions. We can also provide reverse engineering services if original drawings are unavailable.

Quality System

ISO 9001 certification standardizes our production processes. Each Ring Gear undergoes dimensional inspection using a coordinate measuring machine before shipment. Compliance with RoHS standards ensures we fulfill our environmental responsibilities.

Global Delivery

We have supplied parts to customers in over 50 countries, including Germany, the United States, Australia, and throughout the Middle East. Standard products are shipped from existing stock; custom orders are fulfilled according to a schedule agreed upon by both parties.

Technical Specifications

Certification

Features and Benefits

High Stacking Capacity

The uninterrupted tooth profile distributes the transmission power evenly around the circumference. This design effectively disperses stress, extending service life in heavy-duty applications.

Wear Resistance

A controlled heat treatment process creates a hardened surface layer while maintaining a tough core. This metallurgical structure resists wear caused by contaminants while preventing brittle fracture under impact loads.

Dimensional Stability

Stress-relieving hardening treatment after rough machining eliminates residual stresses. The components maintain their geometric stability even after prolonged cyclic loading and temperature variations.

Customization Flexibility

Our construction team is skilled in handling non-standard dimensions, special materials, and unique installation details. We can work from your 2D drawings or reverse-engineer existing components..

Applications

Construction Equipment

· Excavator slewing mechanisms

· Mobile crane turntables

· Tunnel boring machines

Material Processing

· Ball mill drives

· Rotary kiln support systems

· Rolling mill gear trains

Industrial Machinery

· Slewing bearing integration

· Straightening machine drives

· Large turntable assemblies

Energy Sector

· Wind turbine yaw/pitch systems

· Solar tracker drives

Testing & Certification

Every production batch undergoes:

· Material composition verification

· Hardness testing (surface and core)

· Dimensional inspection per technical drawings

· Tooth profile analysis

· Surface defect examination

Our quality system follows ISO 9001:2015 standards. Products comply with RoHS directives for restricted substances.

Installation Guide

Pre-Installation Checks

1. Verify gear dimensions against equipment specifications

2. Inspect tooth surfaces for shipping damage

3. Confirm mounting bolt holes align with mating components

Installation Procedure

4. Clean all mounting surfaces

5. Apply anti-seize compound to fastener threads

6. Position gear using alignment marks or measurement

7. Tighten mounting bolts in star pattern to specified torque

8. Check radial and axial runout with dial indicator

9. Verify mesh contact pattern if mating with pinion

Beginning Operation

Run gear at decreased speed for the to begin with 2-4 hours. Screen for unordinary clamor or vibration. Check clasp torque after 24 hours of operation.

Exhibition

We attend many famous international exhibitions such as Shanghai International Maritime Exhibition,Mining World Russia, bauma China, CTT Russia, etc

​​​​​​​

Partners

Your trust, we cherish in heart all times and will reciprocate that trust with unwavering quality.

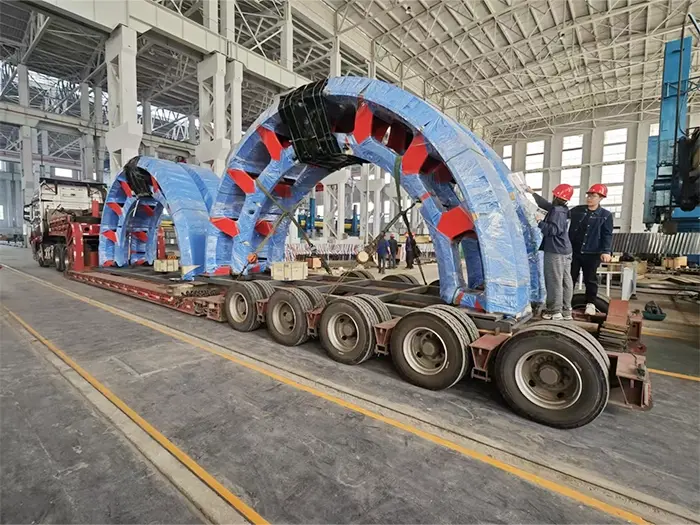

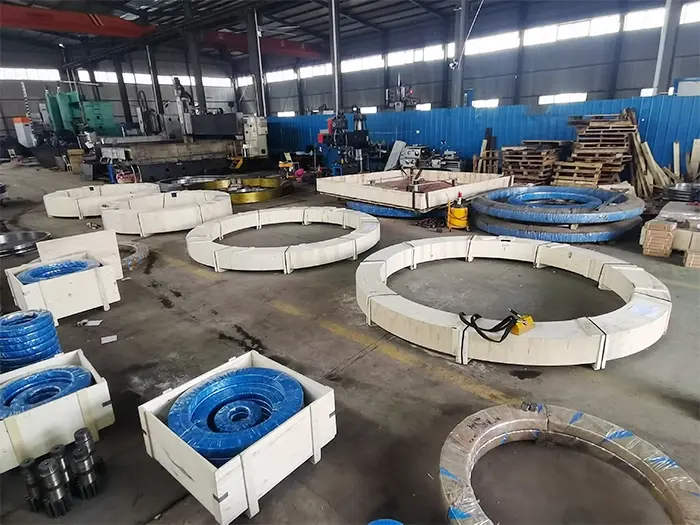

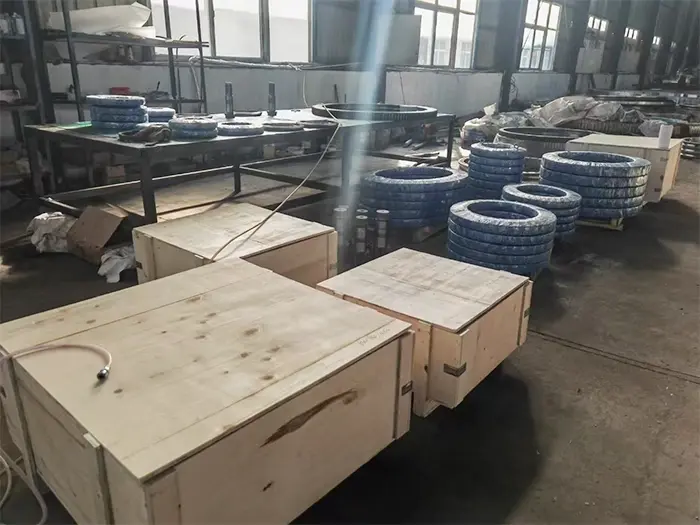

Packaging & shipping

Your goods are unique, and their journey should be flawless. Therefore, we offer professional and customized packaging services. Our experienced team will evaluate your goods' characteristics, transportation route, and environmental requirements to recommend the most secure solution, such as: wooden crate packaging, sturdy frame packaging, or composite reinforced packaging (wooden crate + iron frame).

Maintenance and Care

Lubrication

Apply fitting equip grease per gear manufacturer's suggestions. Relubricate based on working hours and natural conditions.

Inspection Schedule

· Monthly: Visual check for tooth wear, splits, or damage

· Quarterly: Degree backfire and check clasp torque

· Annually: Point by point tooth profile inspection

Replacement Indicators

Replace when teeth appear setting surpassing 30% of surface zone, breaks show up at tooth roots, or dimensional wear surpasses plan limits.

FAQ

Q: Can you fabricate items with uncommon tooth profiles?

A: Yes. Give your tooth geometry details or a test adapt for turn around engineering.

Q: What's the normal lead time for custom gears?

A: Standard customization requires 4-6 weeks after drawing endorsement. Complex ventures may require extra time.

Q: Do you supply gears for existing slewing bearings?

A: Completely. Send us your bearing demonstrate number or measurements, and we'll plan a consistent gear.

Q: What documentation ships with orders?

A: Fabric certificates, dimensional review reports, and warm treatment records go with each shipment.

Q: Can littler distance across gears utilize the same materials?

A: Yes. Fabric choice depends on application prerequisites or maybe than estimate alone.

Contact Us

Ready to discuss your Ring Gear requirements? Our engineering team is here to help. Reach us at mia@hgb-bearing.com for technical consultation and quotations.
