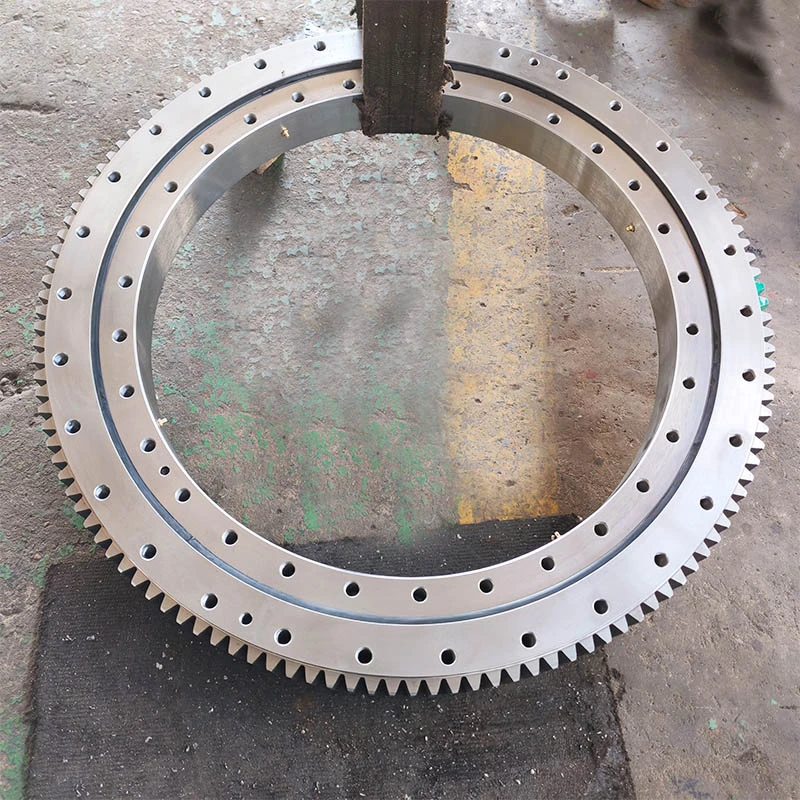

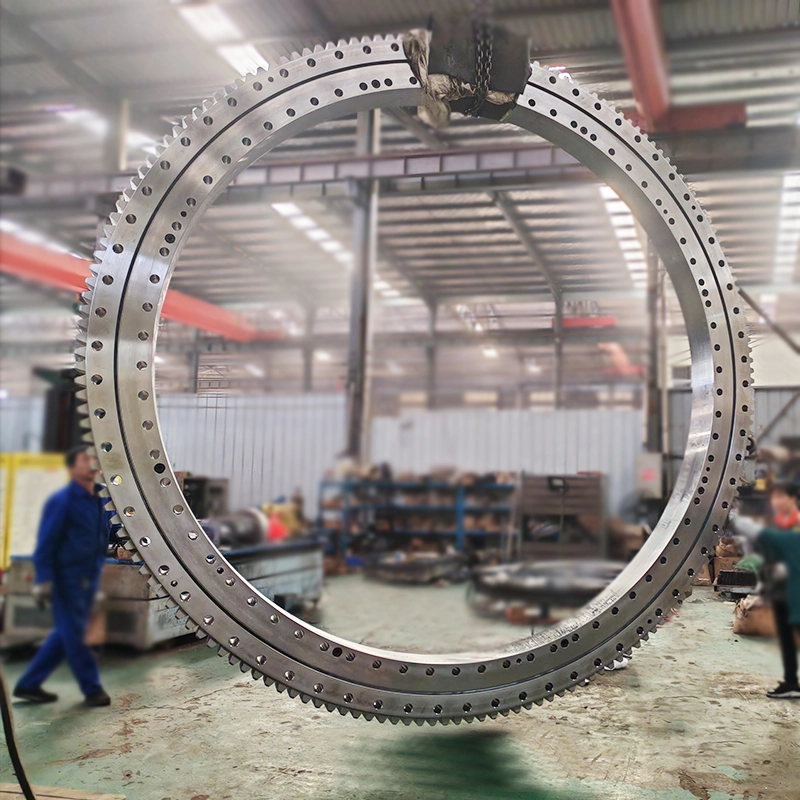

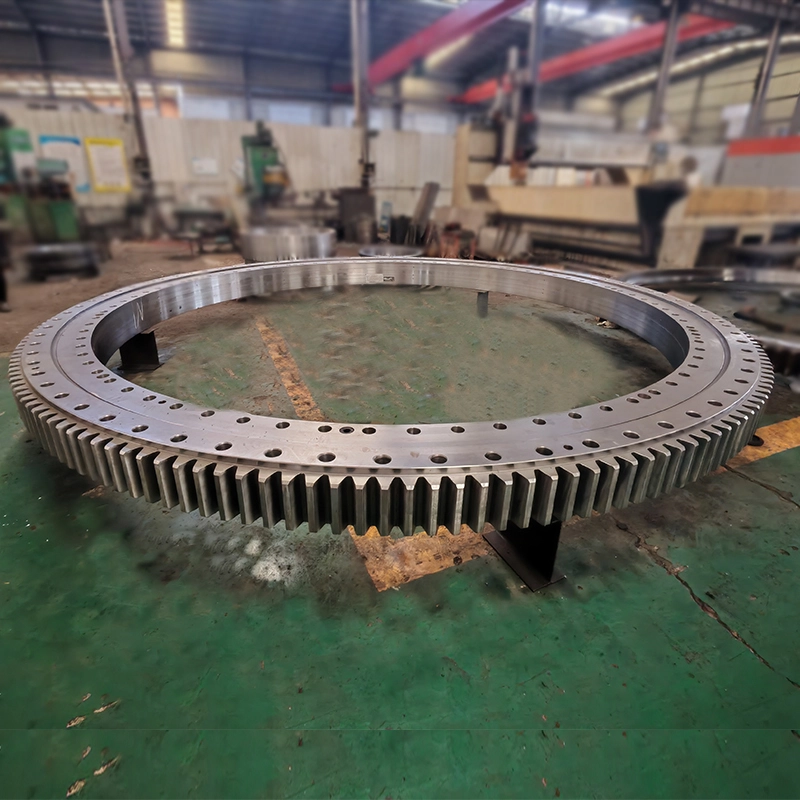

Concrete Pump Truck Slewing Bearing

Concrete Pump Truck Slewing Bearing - Heavy-Duty Solution for Mobile Concrete Placement

Luoyang Heng Guan Bearing Technology supplies precision-engineered Concrete Pump Truck Slewing Bearing designed for truck-mounted and mobile concrete pumping equipment. Smooth 360-degree boom rotation under combined axial, radial, and tilting moments from 60+-meter booms is possible with our single-row four-point contact ball slewing rings. With outer diameters from 400 to 1500 mm, forged 50Mn/42CrMo ring material, raceway hardness of 55-62 HRC, and double-lip NBR/FKM seals resistant to cement slurry and jobsite contamination, these bearings are direct OEM replacements for Putzmeister, Schwing, Sany, and Zoomlion models. They come with engineering support and a one-year warranty

Technical Specifications

Key Performance Features

Heavy Load Capacity

The concrete placing boom slewing ring employs forged 50Mn or 42CrMo steel rings subjected to finite element analysis and raceway strengthening, ensuring resistance to raceway cracking under high-pressure concrete pumping loads during full boom extension.

Extended Service Life

Heat treatment optimization, wear-resistant GCr15 rolling elements, and rigorous life testing reduce replacement frequency. extend operational life to 8,000+ operating hours under standard duty cycles, subject to proper lubrication and maintenance.

Superior Sealing Against Contamination

Double-lip seals and dust-resistant structures keep cement slurry, water, and jobsite dust out of the raceway, directly addressing seal failure issues common in high-contamination environments.

OEM Replacement Compatibility

Engineered as 1:1 replacements for original equipment, our concrete boom pump turntable bearing matches mounting dimensions, bolt patterns, and gear specifications for hassle-free installation on major brand concrete pumps.

Custom Non-Standard Solutions

Our engineering team designs bearings for special boom configurations, including non-standard bores, unique bolt patterns, and modified gear parameters, solving application challenges that standard models cannot address.​​​​​​​

Application-Specific Engineering

Truck-Mounted Concrete Pumps

Truck mounted concrete pump bearing variants support heavy boom assemblies on mobile chassis, maintaining rotational stability during high-pressure pumping while accommodating vehicle vibration and uneven jobsite surfaces.

Concrete Mixer Pump Trucks

The concrete mixer pump truck slewing ring handles combined stresses from mixing drum weight and extended boom operation, with reinforced raceway profiles designed for dual-duty loading patterns.

Mobile Concrete Placing Equipment

Mobile concrete pump slewing ring configurations, such as the Concrete Pump Truck Slewing Bearing, feature corrosion-resistant coatings and enhanced sealing for operation in coastal and port environments where saltwater exposure accelerates wear.

Quality Assurance Process

Every bearing undergoes full-process inspection from forging through final assembly:

· CNC Precision Machining: Vertical lathes and machining centers ensure dimensional accuracy within P5 precision grade

· Induction Hardening: CNC-controlled quenching machines deliver uniform 55-62 HRC raceway hardness

· Gear Processing: CNC gear shapers and hobbing machines produce external/internal gears to DIN specifications

· Final Inspection: Coordinate measuring machines verify raceway runout, gear tooth profiles, and mounting hole positions

ISO 9001 certification and RoHS compliance guarantee consistent quality across production batches.

On-Site Measurement & Reverse Engineering Service

Our field engineering team provides: When original drawings are unavailable or equipment downtime affects project timetables.

On-site field assessment: Engineers examine outer diameter, gear module, bolt hole spacing, and raceway geometry of installed bearings with calibrated equipment.

Wear Analysis: Analyzing damaged components for failure mechanisms (raceway spalling, gear tooth breaking, seal degradation) informs design improvements.

We don't just replicate—we provide structural strengthening, enhanced sealing, and material upgrades according on your operational circumstances, such as high dust, harsh temperatures, or corrosive coastal atmospheres.

Reverse-engineered replacements ship faster than OEM parts from overseas, reducing equipment downtime. We ship In Stock products within 7-15 days. Complex custom installations take 4-6 weeks.

Cost reduction: Avoid import markups and expedited freight while improving performance.

Older Putzmeister, Schwing, and Zoomlion pumps with discontinued or expensive spare components benefit from this service.

FAQ

Q: Can your slewing bearing handle the tilting moment from a 60-meter boom?

A: Yes. Our design incorporates heavy-duty forged rings and reinforced raceway profiles validated through finite element analysis for boom lengths exceeding 60 meters under full concrete pumping loads.

Q: How long does the bearing last in dusty construction sites?

A: With double-lip seals and proper lubrication intervals, expect 3-5 years or 5,000+ pumping cycles. We provide installation guides and lubrication schedules to maximize service life.

Q: Do you supply bearings compatible with Sany concrete pumps?

A: Absolutely. We maintain CAD drawings for common Sany, Putzmeister, Schwing, and Zoomlion models, ensuring bolt-pattern and gear-tooth compatibility for direct replacement.

Q: What if I don't have technical drawings?

A: Our reverse engineering service measures your existing bearing on-site, creates optimized replacement designs, and manufactures the component without requiring original documentation.

Contact Us

Need technical specifications, CAD drawings, or a custom solution for your concrete pumping equipment with Concrete Pump Truck Slewing Bearing? Contact our engineering team at mia@hgb-bearing.com to discuss load calculations, obtain datasheets, or request application-specific modifications.
